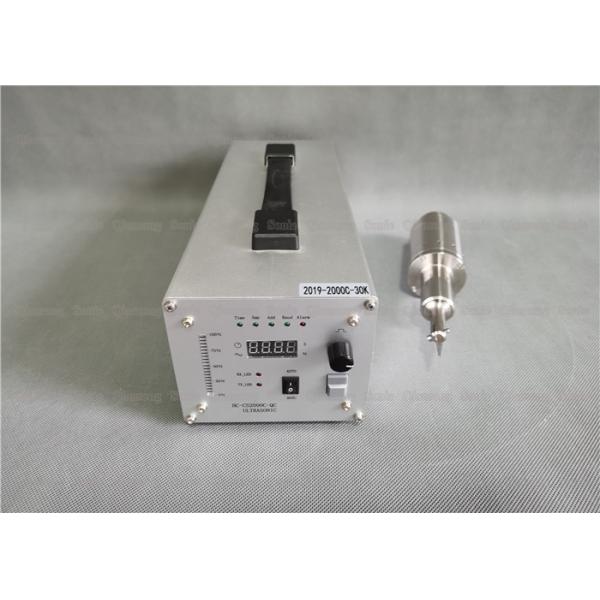

300W 30khz Automotive Industry Ultrasonic Cutting Machine
300W 30khz Automotive Industry Ultrasonic Cutting Machine
300W 30khz Automotive Industry Ultrasonic Cutting Machine
300W 30khz Automotive Industry Ultrasonic Cutting Machine
300W 30khz Automotive Industry Ultrasonic Cutting Machine
300W 30khz Automotive Industry Ultrasonic Cutting Machine
300W 30khz Automotive Industry Ultrasonic Cutting Machine
300W 30khz Automotive Industry Ultrasonic Cutting Machine
Specifications
Brand Name :
QRsonic
Model Number :
QR-C30Y
Certification :
CE
Place of Origin :
China
MOQ :
1 unit
Price :
Negotation
Payment Terms :
T/T, Western Union
Supply Ability :
2000 pcs per month
Delivery Time :
3 workdays
Packaging Details :
packed in carton box
Products Name :
Ultrasonic cutter
Frequency :
30Khz
Max Power :
300W
Driver :
Digital generator
Voltage :
220V or 110V
Weight of blade :
1.25kgs
Gross Weight :
6.5kgs
Application :
Automotive Industry
Description

A Robotic Carpet Cutting Cell with 30Khz Ultrasonic Cutter for the Automotive Industry

Description:

Ultrasonic cutting technology uses the energy of sound waves to cut. It does not require sharp cutting edges, and does not require a lot of pressure, and will not cause chipping or damage to the material being cut. The ultrasonic rubber cutter can easily cut resin, rubber, non-woven fabric, film, various overlapping composite materials and food.

Specifications:

Item No QR-C30Y
Power 300W
Generator Digital generator
Frequency 30KHZ
Voltage 220V or 110V
Weight of Blade 1.25kgs
Gross weight 6.5Kg
Application Automotive Industry

Traditional cutting problems:

Traditional cutting uses a knife with a sharp edge to concentrate a very large pressure on the edge and press the material to be cut. When the pressure exceeds the shear strength of the material to be cut, the molecular bonds of the material are pulled apart to achieve cutting. Because the material is pulled apart by strong pressure and rigidity, the cutting edge of the cutting tool must be very sharp, and the material itself has to withstand relatively large pressure. Therefore, the cutting effect is not good for soft and elastic materials, and it is more difficult for sticky materials.

Advantages of ultrasonic cutting:

High cutting precision, no deformation of rubber
Good cut surface finish and good bonding performance
Easy to apply to automated production
Fast speed, high efficiency, no pollution

A Robotic Carpet Cutting Cell with 30Khz Ultrasonic Cutter for the Automotive Industry

300W 30khz Automotive Industry Ultrasonic Cutting Machine

300W 30khz Automotive Industry Ultrasonic Cutting Machine
