Specifications
Brand Name :
QRsonic
Model Number :
QR-B803
Certification :
CE
Place of Origin :
China
MOQ :
1 pcs
Price :
Negotation
Payment Terms :
T/T, Western Union
Supply Ability :
2000pcs per month
Delivery Time :
3 workdays
Packaging Details :
Packed in carton
Products Name :
Ultrasonic Replacement Converter
Frequency :
20 khz
Output power :
2000 watt
Joint bolt :
1/2-20UNF
Ceramic disc Diameter :
50mm
Capacitance :
11-12nf
Amplitude :
10um
Application :
Ultrasonic plastic welding machine
Description

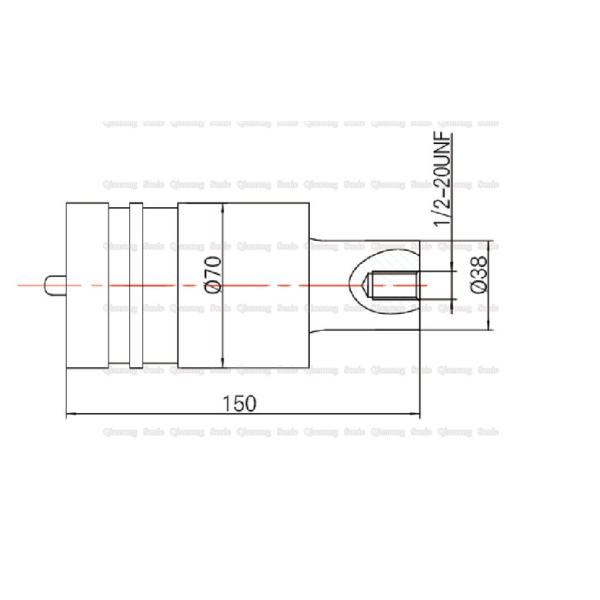

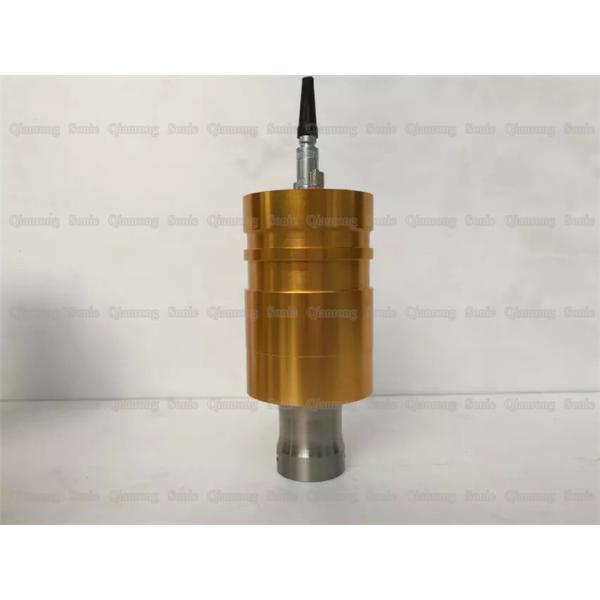

Customized Replacement Branson 803 Converter 20Khz 2000w for Plastic Welding Equipment

Description:

Replacement converter for Branson 803 Converter . For use with 187p power supply (with the 801 actuator) and the model 8700 press. The converter is threaded onto a booster, which increases, decreases or just transfers the amount of movement from the face of the converter to the horn or Sonotrode as we call it.

Ultrasonic Converters and Ultrasonic Transducers are one in the same. Converters or Transducers all do the same thing…convert electrical energy to mechanical movement…so we have our electrical charge being introduced across the surface of the ceramics at the desired frequency which in turn gives us a movement or vibration at the working end on the converter.

Specifications:

Model QR-B803
Frequency 20 khz
Output power 2000 watt
Joint bolt 1/2-20UNF
Ceramic disc Diameter 50mm
Qty of ceramic discs 4pcs
Capacitance 11-12nf
Amplitude 10 um
Application Plastic welding machine

Specification:

Item No

Connect screw (Size)

Ceramic diameter (mm)

Quantity of Ceramic (pc)

Resonance frequency (khz)

 Input Power Machine
1-QR-BCJ20 1/2-20UNF 50 6 20 3300

Branson

2000 series
2-QR-BCR20 1/2-20UNF 50 6 20 3300

Branson

2000 series
3-QR-B502 1/2-20UNF 50 4 20 2000

Branson

5170, 8800
4-QR-B402 1/2-20UNF 40 4 20 900

Branson

8200, 8400
5-QR-B803 1/2-20UNF 50 4 20 2000

Branson

8700
6-QR-B902J 1/2-20UNF 50 4 20 2000

Branson

910W or IW+
7-QR-B4TH M8 25 4 40 800 40khz Branson welders
8-QR-B4TR M8 25 4 40 800 40khz Branson welders
9-QR-D20 1/2-20UNF 50 2 20 2000 20khz Dukane Heavy Duty
10-QR-D41S30 1/2-20UNF 50 4 20 2000 Dukane model 43A250, 43A255, 43D255, 43E255, 43A260, or 43B260
11-QR-D41C30 1/2-20UNF 50 4 20 2000
12-QR-D110-3122 1/2-20UNF 50 4 20 2000
13-QR-D110-3168 1/2-20UNF 50 4 20 2000 Dukane Model 43B18
14-QR-D41C28 M8 35 2 40 800 40khz Dukane welders
15-QR-D41C29 M8 35 2 40 800 40khz Dukane welders
16-QR-R3510 M8 25 4 35 800 35Khz Rinco Welders
17-QR-R35 M8*1.25 25 2 35 500 35khz Rico Welders
18-QR-R20 1/2-20UNF 50 2 20 1200
19-QR-J3506 M8 25 4 35 800
20-QR-J3710 M8 25 4 37 500 CV231
21-QR-J3706-W1 M8 25 4 37 500
22-QR-J3706-W2 M8 32 2 37 400 CV3510
23-QR-T35 M8 25 4 35 800 35khz Telsonic Machine
24-QR-H20 1/2-20UNF 50 6 20 3000

Customized Replacement Branson 803 Converter 20Khz 2000w for Plastic Welding Equipment
