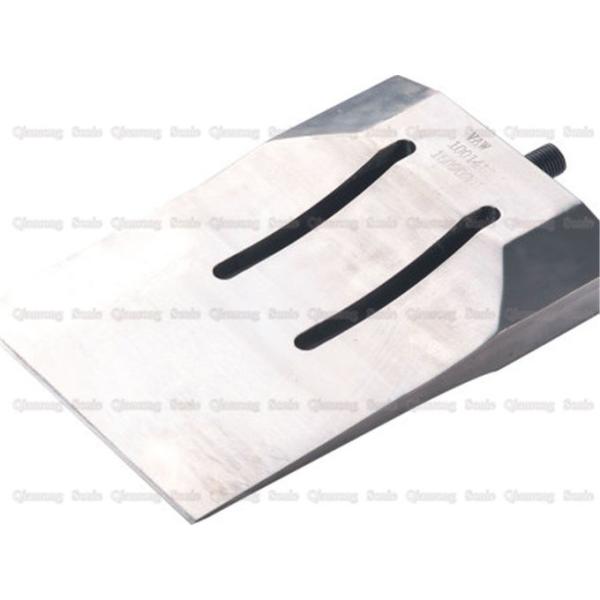

Hand Held 40khz Ultrasonic Food Cutter With Digital Generator No Sticking Knife

Description:

Ultrasonic cakes/food cutters are often used to cut the most common desserts and candies, whether it is soft or contain fat, sugar, honey, cream or chocolate, which does not affect the uniformity of the food in any way. Ultrasonic cutters ensure clean cutting and precision. Compared with traditional cutting machines, ultrasonic food cutting knives are characterized by more hygienic cutting, shorter downtime, higher cost-effectiveness, higher consistency of cutting surfaces and longer blade life.

The principle of an ultrasonic rubber cutter is to convert a 50/60 Hz current into 20, 30 or 40 kHz of electrical energy by means of an ultrasonic generator. The converted high-frequency electrical energy is again converted by the transducer into mechanical vibration of the same frequency, and then the mechanical vibration is transmitted to the cutting blade through a set of amplitude modulator devices that can change the amplitude. The ultrasonic rubber cutting blade vibrates along its length with an amplitude of 10-70 μm and repeats 40,000 times per second (40 kHz) (the vibration of the blade is microscopic and generally difficult to see by the naked eye). The cutting blade then transmits the received vibration energy to the cutting surface of the workpiece to be cut, in which the vibration energy is cut by activating the molecular energy of the rubber molecule and opening the molecular chain.

Specifications:

Ultrasonic cutting advantages:

1. High stability: When the ultrasonic generator works, it generates electromagnetic vibration and is converted into mechanical oscillation and transmitted to the cutting knives and cutting materials. The mechanical cutting is performed, so no sharp cutting edge is required, and the blade wear is small, and at the same time The cutter head can be replaced by itself.
2. Safety and environmental protection: When the ultrasonic knife is cut, the temperature of the cutter head is lower than 50 degrees Celsius, and no smoke and odor will be generated, which eliminates the danger of injury and fire during cutting.
3. Cutting neatly: Since the ultrasonic wave is cut by high-frequency vibration, the material will not adhere to the surface of the blade, only a small pressure is required for cutting, and the fragile and soft materials are not deformed and worn, and the fabric is cut and automatically sealed. Will not cause chipping.
4. Simple operation: The cutting knife is connected to the ultrasonic generator, the generator is connected to the 220V mains, and the switch can be cut to support the hand-held and machine-mounted cutting.
Wide range of applications: rubber, vulcanized latex, non-vulcanized latex, food and various textile materials, plastic sheets can be ultrasonically cut.

Handheld 40khz Ultrasonic Food Cutter with Digital Generator No Sticking Knife
