Specifications
Brand Name :
QRsonic
Model Number :
QR-2040-2BD
Certification :
CE
Place of Origin :
China
MOQ :
1 pcs
Price :
Negotation
Payment Terms :
T/T, Western Union
Supply Ability :
2000pcs per month
Delivery Time :
3 workdays
Packaging Details :
Packed in carton
Products Name :
Ultrasonic Welding Transducer
Frequency :
40 khz
Output power :
200 watt
Joint bolt :
M8
Ceramic disc Diameter :
20mm
Qty of ceramic discs :
2pcs
Capacitance :
1.5-1.7nf
Amplitude :
4um
Description

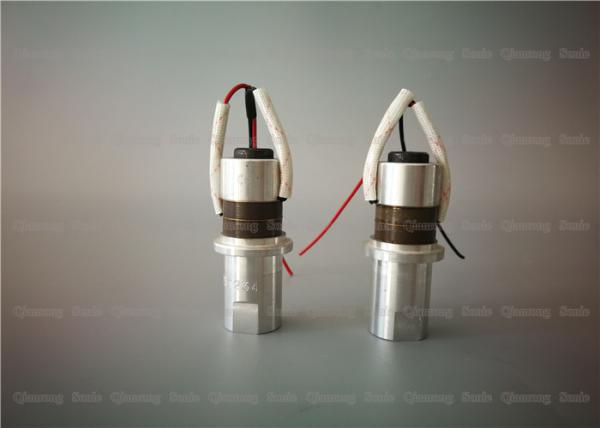

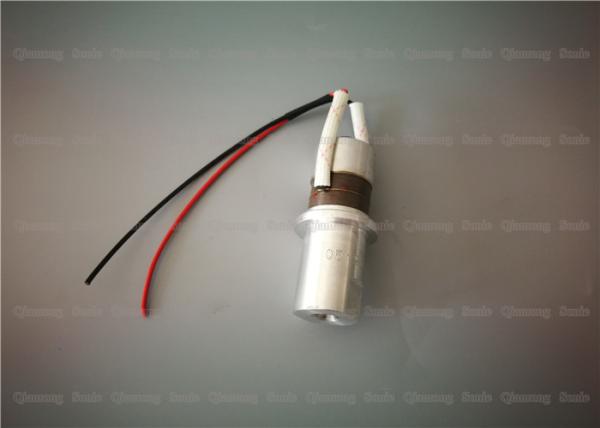

High Frequency 40Khz 200w Ultrasonic Welding Transducer with Grey Piezoelectric Ceramics

Description:

The transducer is composed of a central piezoelectric ceramic component, a front and rear metal cover, a pre-stressed screw, an electrode sheet, and an insulating tube. Ultrasonic transducers are used in almost all ultrasonic equipment. Qianrong ultrasonic equipment is the source of ultrasonic titanium alloy transducers and core components.

Specifications:

Model QR-2040-2BD
Frequency 40khz
Output power 200 watt
Joint bolt M8
Ceramic disc Diameter 20mm
Qty of ceramic discs 2pcs
Capacitance 1.5-1.7nf
Amplitude 4 um
Application Plastic welding machine

Parameters:

The upside-down trumpet type BRANSON TYPE

(Larger amplitude and bigger output power, high-sound intensity and high-power density application)

Item No.

Connect screw (Size)

Ceramic diameter (mm)

Quantity of Ceramic (pc)

Resonance frequency (khz)

Resistance (Ω)

 Capacitance

Input power (W)

Max. Amplitude (um)
Yellow Grey Black
7015-4BD M20 X 1.5 70 4 15 15 12500-14000 / 17000-19000 2600 11
6015-4BD M18 X 1.5 60 4 15 15 9000-10000 10000-11000 / 2200 11
6015-4FD M20 X 1.5 60 4 15 15 9000-10000 / / 2600 11
6015-6BD 1/2-20UNF 60 6 15 15 19000-20500 / 23000-25000 2600 11
5015-6BD 1/2-20UNF 50 6 15 15 17000-19000 / 23000-25000 2000 11
5020-4BD 1/2-20UNF 50 4 20 15 11000-12000 12000-13500 14500-16000 1500 8
5020-6BD 1/2-20UNF 50 6 20 15 19000-21000 / 22500-25000 2000 10
4020-6BD 1/2-20UNF 40 6 20 15 13500-15000 / / 1500 10
4020-4BD 1/2-20UNF 40 4 20 15 8500-9300/ 9500-10500 10000-11000 10500-11500 900 8
3535-2BD M8 X 1 35 2 35 25 / / 4500-5000 600 9
3535-4BD M8 X 1 35 4 35 20 6600-7400 / 9000-10000 1000 4
2535-4FD M8 25 4 35 25 3900-4300 / / 500 4
2535-4LD M8 25 4 35 25 3900-4600 / / 500 4
2535-4QD M8*1 25 4 35 25 / 6500-7500 / 500 4
2540-4BD M8 25 4 40 30 4500-5300 / / 500 3
2040-2BD M8 20 2 40 40 1100-1300 1150-1350 / 300 2

High Frequency 40Khz 200w Ultrasonic Welding Transducer with Grey Piezoelectric Ceramics

High Frequency 40Khz 200w Ultrasonic Welding Transducer With Grey Piezoelectric Ceramics

High Frequency 40Khz 200w Ultrasonic Welding Transducer With Grey Piezoelectric Ceramics

High Frequency 40Khz 200w Ultrasonic Welding Transducer With Grey Piezoelectric Ceramics
