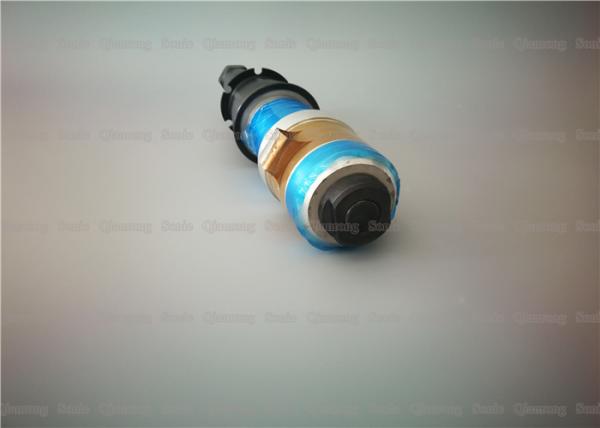

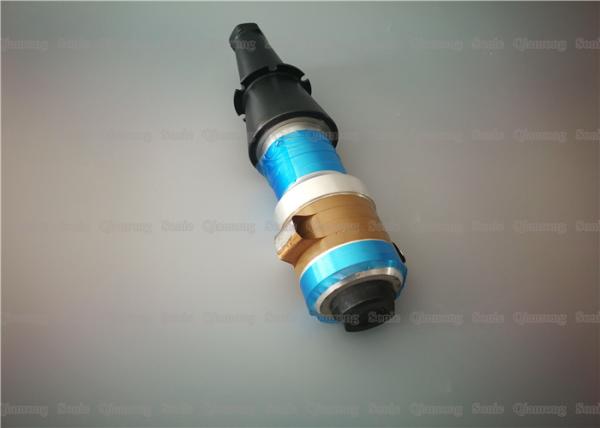

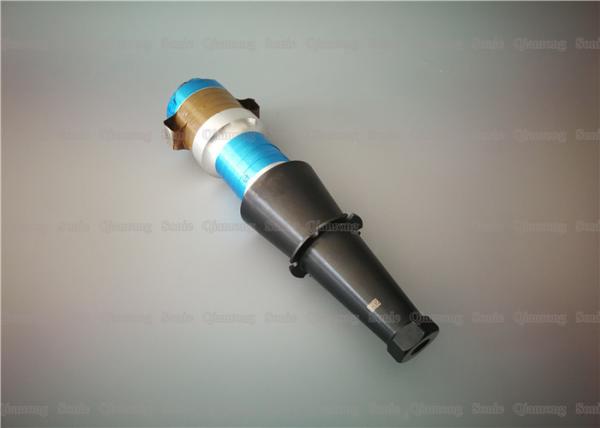

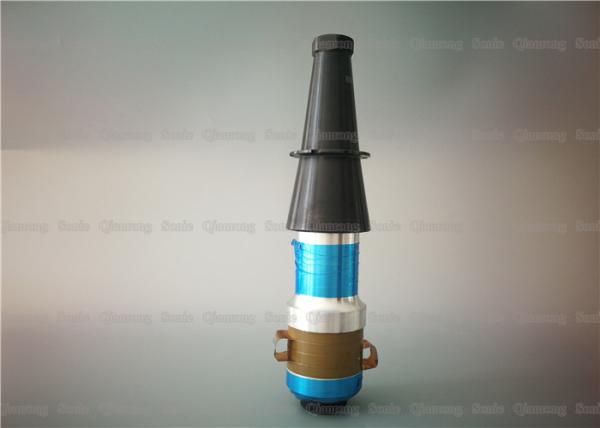

3600W High Energy Ultrasonic 15Khz Frequency Converter With 74mm Mounting Flange
3600W High Energy Ultrasonic 15Khz Frequency Converter With 74mm Mounting Flange
3600W High Energy Ultrasonic 15Khz Frequency Converter With 74mm Mounting Flange
3600W High Energy Ultrasonic 15Khz Frequency Converter With 74mm Mounting Flange
3600W High Energy Ultrasonic 15Khz Frequency Converter With 74mm Mounting Flange
3600W High Energy Ultrasonic 15Khz Frequency Converter With 74mm Mounting Flange
3600W High Energy Ultrasonic 15Khz Frequency Converter With 74mm Mounting Flange
3600W High Energy Ultrasonic 15Khz Frequency Converter With 74mm Mounting Flange
Specifications
Brand Name :
QRsonic
Model Number :
QR-7015-4BD-BZ
Certification :
CE
Place of Origin :
China
MOQ :
1 pcs
Price :
Negotation
Payment Terms :
T/T, Western Union
Supply Ability :
2000pcs per month
Delivery Time :
3 workdays
Packaging Details :
Packed in carton
Products Name :
Ultrasonic Oscillator
Output Power :
3600w
Frequency :
15khz
Ceramic disc Diameter :
70mm
Qty of ceramic discs :
4pcs
Capacitance :
12.5-14nf
Connected Screw :
M16*1
Application :
Ultrasonic plastic welding machine
Description

3600W High Energy Ultrasonic 15Khz Frequency Converter with 74mm Mounting Flange

Description:

QRsonic is the professional manufacturer of ultrasonic research, high power ultrasonic transducer development and production in China. Our main products are transducer, ultrasonic power supply, ultrasonic metal welder, ultrasonic wire antenna parts and so on. These productions are widely used in various fields, such as plastic welding, metal welding, non-woven sealing and cutting and so on.

Ultrasonic Oscillator is also called the ultrasonic vibrator. The whole of the industry is connected to the horn and the horn is called a vibrator. The ultrasonic vibrator is a device that converts electrical energy and mechanical energy (acoustic vibration) by piezoelectric effect of piezoelectric ceramics, and amplifies the front and rear radiation cover blocks by acoustic impedance matching.

Specifications:

Model QR-7015-4BD-BZ
Frequency 15 khz
Output power 3600 watt
Joint bolt M16*1
Ceramic disc Diameter 70mm
Qty of ceramic discs 4pcs
Capacitance 12.5-14nf
Application Plastic welding machine

Parameters:

Item No.

Connect screw (Size)

Ceramic diameter (mm)

Quantity of Ceramic (pc)

Resonance frequency (khz)

 Capacitance

Input power (W)
Yellow Grey Black
1-6015-4BZ-BZ M16 *1 60 4 15 9000-10000 10000-11000 12500-13500 2600
2-6015-4BZ-LR M16 *1 60 4 15 9000-10000 10000-11000 12500-13500 2600
3-6015-4BZ-RS M16 *1 60 4 15 9000-10000 10000-11000 12500-13500 2600
4-7015-4BZ-BZ M16 *1 70 4 15 12500-14000 / / 3600
5-6015-4BD-BZ M16 *1 60 4 15 9000-10000 10000-11000 / 2600
6-6015-6BD-BZ M16 *1 60 6 15 19000-20500 / 23000-25000 3600
7-7015-4BD-BZ M16 *1 70 4 15 12500-14000 / / 3600
8-6015-4BZ-LS M16 *1 60 8 15 18000-20000 20000-22000 / 4200
9-4515-4YZ-SS M16 *1 45 8 15 / / 25000-27000 2400
10-4515-4JZ-SS M16 *1 45 8 15 19000-21000 / / 2800
11-5015-4BZ-SZ M16 *1 50 8 15 22000-24000 / / 3600
12-5020-4CZ-BJ 3/8-24UNF 50 4 20 11000-12000 13000-14000 14500-16000 1500
13-5020-4BZ-BJ 3/8-24UNF 50 4 20 11000-12000 13000-14000 14500-16000 1500
14-5520-4BZ-BJ 3/8-24UNF 55 4 20 10500-11500 / / 1800
15-5020-4BZ-BZ 3/8-24UNF 50 4 20 11000-12000 13000-14000 14500-16000 1500
16-5020-4HZ-BJ 3/8-24UNF 50 4 20 / / 11000-12000 1500
17-3820-4BZ-SS 3/8-24UNF 38 8 20 13000-14500 / / 1800
18-5020-4BZ-LS 1/2-20UNF 50 8 20 23000-25000 26000-28000 / 2800
19-3028-2BZ-BT / 30 2 28 2800-3300 3300-3800 / 400
20-3828-4BZ-BJ M8*1 38 4 28 7200-8200 / 10000-12000 800
21-3828-4BZ-BJL M8*1 38 4 28 7200-8200 / 10000-12000 800
22-3828-2BZ-BJL M8*1 38 2 28 3700-4200 / / 500
23-3030-4BZ-SJL M10 30 4 30 / 6200-7200 / 700
24-3030-4BZ-LJL M10 30 4 30 / 6200-7200 / 700
25-3030-4BZ-BJ M8 30 4 30 / 6200-7200 / 700
26-3535-4BD-II M8 35 4 35 6600-7400 / 9200-10200 800
27-3035-4BZ-BJL M8 30 4 35 5500-6200 / / 700
28-3040-4BZ-BJ M8 30 4 40 5100-5800 / 6500-7500 500
29-1560-2BZ-BJ / 15 2 60 / / 700-850 100
30-1070-2BZ-BJ / 10 2 70 700-800 / / 100
