Specifications
Brand Name :
QRsonic
Model Number :
QR-1560-2BZ-BJ
Certification :
CE
Place of Origin :
China
MOQ :
1 pcs
Price :
Negotation
Payment Terms :
T/T, Western Union
Supply Ability :
2000pcs per month
Delivery Time :
3 workdays
Packaging Details :
Packed in carton
Products Name :
Ultrasonic Oscillator
Output Power :
100w
Frequency :
60khz
Ceramic disc Diameter :
15mm
Qty of ceramic discs :
2pcs
Capacitance :
0.7-0.86nf
Threading Hole :
Φ0.3mm or Φ0.5mm
Application :
Ultrasonic Wire Buried Device
Description

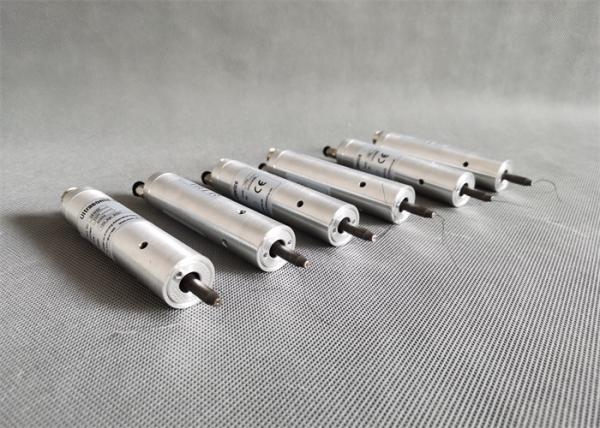

0.3mm Threading Hole Wear Resisting Alloy Steel Connected with 60Khz Ultrasonic Transducer


Description:

60Khz ultrasonic transducer with wear-resistant alloy steel tool head above HRC55° is a vibrator specially customized for ultrasonic buried wire equipment.

Ultrasonic wire embedder, also known as ultrasonic wire implanter, is an ultrasonic device specially used for ID smart card production, and is one of the important applications of ultrasonic welding in recent years. Hangzhou Qianrong Automation Equipment Co., Ltd. is a national high-tech enterprise specializing in the manufacture and research and development of ultrasonic equipment. It has many years of experience in ultrasonic application and cutting, and can provide solutions for buried wire welding of various ID smart cards.



Specifications:

Model QR-1560-2BZ-BJ
Frequency 60khz
Output power 100 watt
Ceramic disc Diameter 15mm
Qty of ceramic discs 2pcs
Capacitance 0.7-0.85nf
Application Ultrasonic Card Embedding Machine



Technical Parameters:

Type QR-W60A QR-W70D
Frequency(KHz) 60KHz 70KHz
Trigger External control or manual control External control
welder head wear-resisting alloy steel above HRC55° Titanium Alloy Material
Threading hole Φ0.3mm or Φ0.5mm Φ0.3mm or Φ0.5mm
Power code 2M or 5M 5M
Generator

Digital generator V6.6 or analog
generator ZJS-100

 Digital generator
Generator Size

280*320*140mm(V6.6)
280*320*150mm(ZJS-100)

 155*265*170mm
Cover dimension Φ25X100mm Φ16X121mm
Cover material Nylon or aluminum Aluminum
Cooling way compressed air cooling (Φ4mm conduit) compressed air cooling (Φ4mm conduit)

Advantage:

1. Intelligent frequency search, prolong the life of buried head 2-3 times.

2. No soldering is required before soldering, reducing process and cost.

3. The matching power is strong, and the buried head and the ultrasonic generator can be interchanged at will.

4. Multi-point power control, super high speed buried wire, good consistency.

5. Solve the problem of equipment heating when buried, can work for a long time.

6. Standardized design, can directly replace imported products, environmental protection and safety.


0.3mm Threading Hole Wear Resisting Alloy Steel Connected with 60Khz Ultrasonic Transducer
