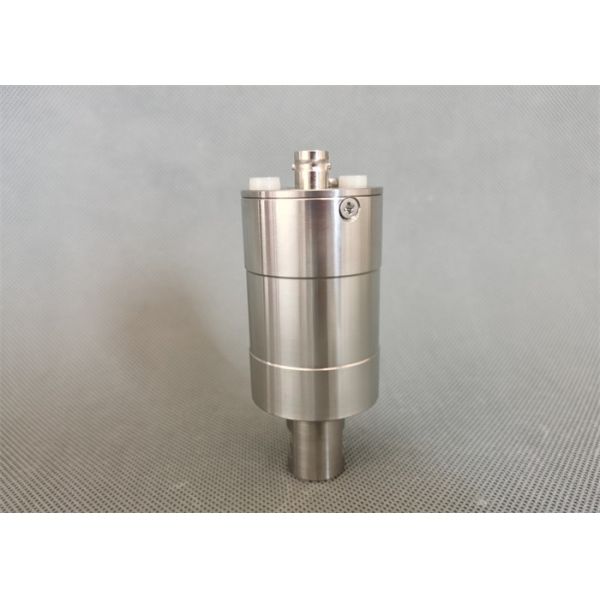

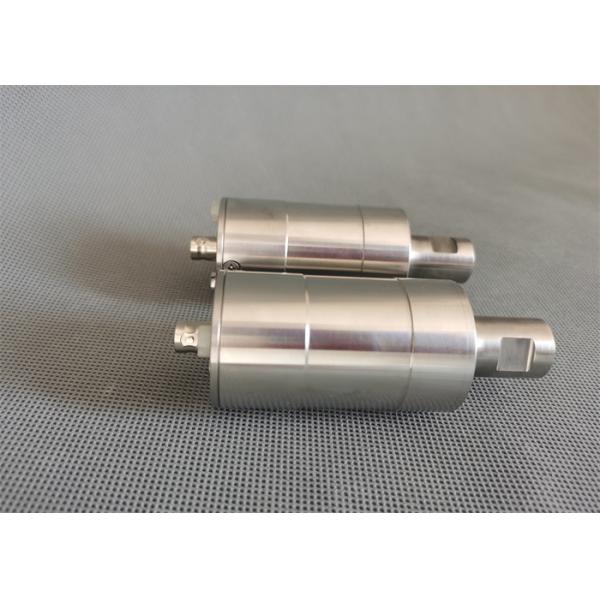

35Khz Ultrasonic Welding Converter 1200w With Titanium Materials
35Khz Ultrasonic Welding Converter 1200w With Titanium Materials
35Khz Ultrasonic Welding Converter 1200w With Titanium Materials
35Khz Ultrasonic Welding Converter 1200w With Titanium Materials
35Khz Ultrasonic Welding Converter 1200w With Titanium Materials
35Khz Ultrasonic Welding Converter 1200w With Titanium Materials
35Khz Ultrasonic Welding Converter 1200w With Titanium Materials
35Khz Ultrasonic Welding Converter 1200w With Titanium Materials
Specifications
Brand Name :
QRsonic
Model Number :
QR-ES35
Certification :
CE
Place of Origin :
China
MOQ :
1 pcs
Price :
Negotation
Payment Terms :
T/T, Western Union
Supply Ability :
2000pcs per month
Delivery Time :
3 workdays
Packaging Details :
Packed in carton
Products Name :
Ultrasonic Replacement Eurosonic Converter
Frequency :
35 khz
Output power :
1200 watt
Joint bolt :
M8
Ceramic disc Diameter :
25mm
Capacitance :
4-6nf
Amplitude :
6um
Application :
Cutting or Welding Spare Parts
Description

Replacement 35Khz 1200w Eurosonic US-Konverter with Titanium Materials

Description:

35K transducer customized according to customer requirements, replacement 35khz 1200w Eurosonic US-Konverter with Titanium Materials. Art Nr: KP35.0002, Nr. ES 26898. ORsonic can accept custom-made according to customer's requirements.

QRsonic Commonly used high-power ultrasonic transducers are used in ultrasonic plastic welding machines, ultrasonic metal welding machines, various hand-held ultrasonic tools, ultrasonic emulsifier homogenizers, atomizers, ultrasonic engraving machines, etc.

Specifications:

Model QR-ES35
Frequency 35 khz
Output power 1200 watt
Joint bolt M8
Ceramic disc Diameter 25mm
Qty of ceramic discs 4pcs
Capacitance 4-6nf
Amplitude 6 um
Application Plastic welding machine

Specification:

Item No

Connect screw (Size)

Ceramic diameter (mm)

Quantity of Ceramic (pc)

Resonance frequency (khz)

 Input Power Machine
1-QR-BCJ20 1/2-20UNF 50 6 20 3300

Branson

2000 series
2-QR-BCR20 1/2-20UNF 50 6 20 3300

Branson

2000 series
3-QR-B502 1/2-20UNF 50 4 20 2000

Branson

5170, 8800
4-QR-B402 1/2-20UNF 40 4 20 900

Branson

8200, 8400
5-QR-B803 1/2-20UNF 50 4 20 2000

Branson

8700
6-QR-B902J 1/2-20UNF 50 4 20 2000

Branson

910W or IW+
7-QR-B4TH M8 25 4 40 800 40khz Branson welders
8-QR-B4TR M8 25 4 40 800 40khz Branson welders
9-QR-D20 1/2-20UNF 50 2 20 2000 20khz Dukane Heavy Duty
10-QR-D41S30 1/2-20UNF 50 4 20 2000 Dukane model 43A250, 43A255, 43D255, 43E255, 43A260, or 43B260
11-QR-D41C30 1/2-20UNF 50 4 20 2000
12-QR-D110-3122 1/2-20UNF 50 4 20 2000
13-QR-D110-3168 1/2-20UNF 50 4 20 2000 Dukane Model 43B18
14-QR-D41C28 M8 35 2 40 800 40khz Dukane welders
15-QR-D41C29 M8 35 2 40 800 40khz Dukane welders
16-QR-R3510 M8 25 4 35 800 35Khz Rinco Welders
17-QR-R35 M8*1.25 25 2 35 500 35khz Rico Welders
18-QR-R20 1/2-20UNF 50 2 20 1200
19-QR-J3506 M8 25 4 35 800
20-QR-J3710 M8 25 4 37 500 CV231
21-QR-J3706-W1 M8 25 4 37 500
22-QR-J3706-W2 M8 32 2 37 400 CV3510
23-QR-T35 M8 25 4 35 800 35khz Telsonic Machine
24-QR-H20 1/2-20UNF 50 6 20 3000

Special Items can be customized.

Adjusting:

The matching of the transducer with the electric box and the mold is the basis for the reliability of the system and the maximum power of the transducer. After the transducer is completed, there will be no adjustable parts. Adjust the electrical box and mold to match the working state of the transducer.

It is recommended to adjust the matching in the following steps:

1. adjust the oscillation frequency of the electric box to suit the dynamic range of the transducer.

2. Adjust the matching circuit so that the no-load current of the transducer is less than 0.5A. The tuning voltage deviation should always be less than 0.2A, and check the transducer for normal vibration and heating.

3. connect the mold, with the load, and adjust the electric box to make the output power of the system meet the requirements for use.

4. Full power test for a certain period of time, check that the state changes of the transducer and the electric box should be within the normal range.

Replacement 35Khz 1200w Eurosonic US-Konverter with Titanium Materials

35Khz Ultrasonic Welding Converter 1200w With Titanium Materials

35Khz Ultrasonic Welding Converter 1200w With Titanium Materials
