2pcs Piezoelectric Ceramics Ultrasonic Transducer 28Khz For Spot Plastic Welder
2pcs Piezoelectric Ceramics Ultrasonic Transducer 28Khz For Spot Plastic Welder
2pcs Piezoelectric Ceramics Ultrasonic Transducer 28Khz For Spot Plastic Welder
2pcs Piezoelectric Ceramics Ultrasonic Transducer 28Khz For Spot Plastic Welder
2pcs Piezoelectric Ceramics Ultrasonic Transducer 28Khz For Spot Plastic Welder
2pcs Piezoelectric Ceramics Ultrasonic Transducer 28Khz For Spot Plastic Welder
2pcs Piezoelectric Ceramics Ultrasonic Transducer 28Khz For Spot Plastic Welder
2pcs Piezoelectric Ceramics Ultrasonic Transducer 28Khz For Spot Plastic Welder
Specifications
Brand Name :
QRsonic
Model Number :
QR-3028-2BZ
Certification :
CE
Place of Origin :
China
MOQ :
1 pcs
Price :
Negotation
Payment Terms :
T/T, Western Union
Supply Ability :
2000pcs per month
Delivery Time :
3 workdays
Packaging Details :
Packed in carton
Products Name :
Ultrasonic Welding Transducer
Frequency :
28 khz
Output power :
400 watt
Joint bolt :
3/8-24UNF
Ceramic disc Diameter :
30mm
Qty of ceramic discs :
2pcs
Capacitance :
2.8-3.8nf
Amplitude :
8um
Description

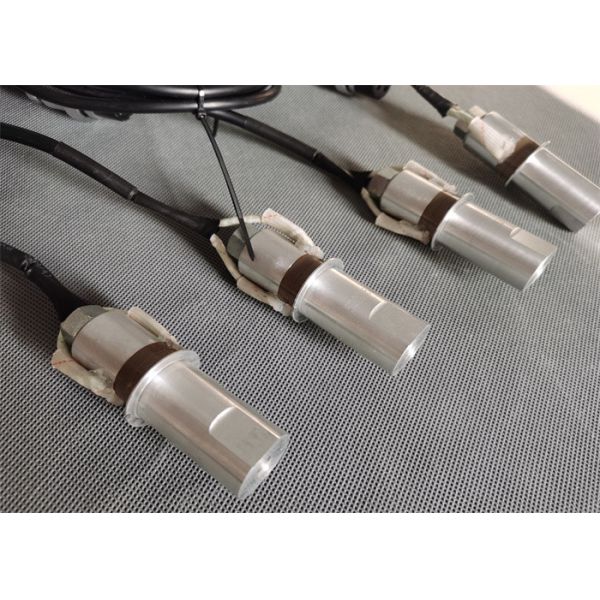

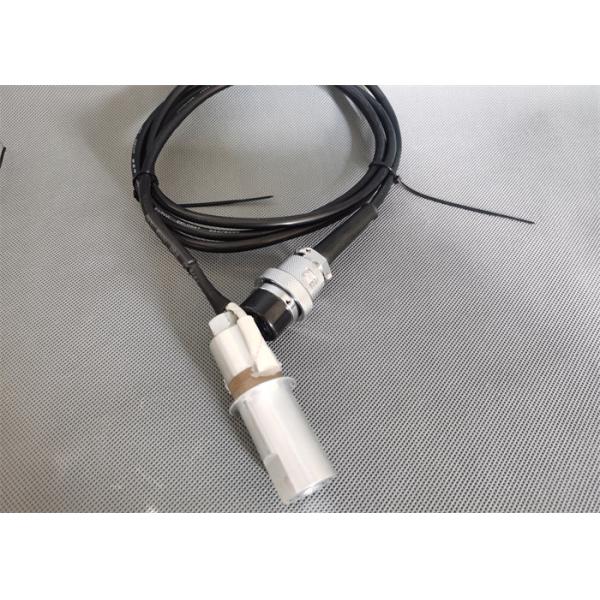

28Khz Ultrasonic Welding Transducer for Spot Plastic Welder with 2pcs Piezoelectric Ceramics

Description:

28Khz ultrasonic welding transducer uses high-quality, high-consistency piezoelectric ceramics, professional structure design, stable operation, high stability, high consistency, high load test, non-hot, high amplitude, low impedance, stable wave, Characteristics of constant waves.

Ultrasonic is widely used in production, such as welding, cutting, slitting, and plastic welding of various non-woven/chemical fiber cloths. However, due to the difference between ultrasonic and high-frequency principles, the applicable raw materials and applications are also applicable.

Specifications:

Model QR-3028-2BZ
Frequency 28khz
Output power 400 watt
Joint bolt 3/8-24UNF
Ceramic disc Diameter 30mm
Qty of ceramic discs 2pcs
Capacitance 2.8-3.8nf
Amplitude 8 um
Application Plastic welding machine

Parameters:

The columnar type NTK TYPE

Item No.

Connect screw

Ceramic dia (mm)

 Qty of Ceramic (pc)

Frequency (khz)

 Capacitance

power (W)
Yellow Grey Black
5025-2BZ M12 X 1 50 2 25 5000-5600 7000-8000 500
3828-2BZ 1/2-20UNF 38 2 28 3800-4300 500
3828-4BZ 1/2-20UNF 38 4 28 7600-8500 10500-12000 800
3028-2BZ 3/8-24UNF 30 2 28 2700-3100 3400-3800 400
3028-4BZ M10*1 30 4 28 6000-7000 700
2528-4FZ M8 X 1 25 4 28 3900-4300 400
2528-2FZ M8 X 1 25 2 28 1950-2200 2200-2500 300
3030-4BZ M10 30 4 30 6200-6900 700
3035-2FZ 3/8-24UNF 30 2 35 2700-3100 500
3035-4BZ M10 X 1 30 4 35 5000-6200 800
2535-2FZ M8 X 1 25 2 35 1900-2200 400
2540-2BZ 3/8-24UNF 25 2 40 2000-2300 500
3040-4BZ M10 30 4 40 5500-6200 1000
3050-4BZ M8 30 4 50 5500-6200 600
1560-2BZ M6 X 0.75 15 2 60 700-800 100

Ultrasonic transducer manufacturing process:


The transducer consists of a shell, a matching layer, a piezoelectric ceramic disc transducer, a backing, a lead-out cable and a Cymbal array receiver. The piezoelectric ceramic disc transducer is made of PZT-5 piezoelectric material polarized in the thickness direction, and the Cymbal array receiver is composed of 8 to 16 Cymbal transducers, two metal rings and rubber gaskets.
1. Dry with hot air gun
2. Swing the electrode first
3. Ceramics, electrodes, ceramics
4. Back cover, screws
5. Positioning
6. Afterburner
7. Glue
8. Put the oven
9. Test with a test machine
10. Filling the seam
11. Test again before packing
