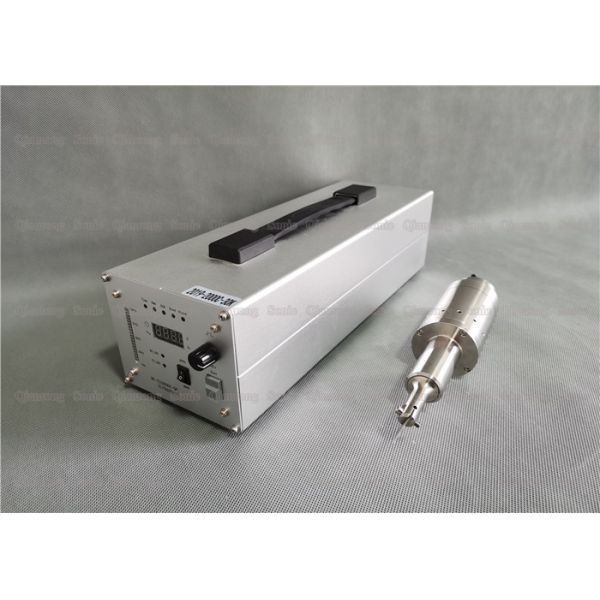

Vibrating Ultrasonic Cutting Blade 30Khz 8mm 15mm Thickness
Vibrating Ultrasonic Cutting Blade 30Khz 8mm 15mm Thickness
Vibrating Ultrasonic Cutting Blade 30Khz 8mm 15mm Thickness
Vibrating Ultrasonic Cutting Blade 30Khz 8mm 15mm Thickness
Vibrating Ultrasonic Cutting Blade 30Khz 8mm 15mm Thickness
Vibrating Ultrasonic Cutting Blade 30Khz 8mm 15mm Thickness
Vibrating Ultrasonic Cutting Blade 30Khz 8mm 15mm Thickness
Vibrating Ultrasonic Cutting Blade 30Khz 8mm 15mm Thickness
Specifications
Brand Name :
QRsonic
Model Number :
QR-C30Y
Certification :
CE
Place of Origin :
China
MOQ :
1 unit
Price :
Negotation
Payment Terms :
T/T, Western Union
Supply Ability :
2000 pcs per month
Delivery Time :
3 workdays
Packaging Details :
packed in carton box
Products Name :
Ultrasonic Sponge Cutter
Frequency :
30Khz
Power :
800W
Power Supply :
Digital generator
Voltage :
220V
Weight of blade :
1.25kgs
Replace blade :
10pcs
Application :
Fabric Cutting Machine
Description

Vibrating Ultrasonically Cutting Blade 30Khz for 8mm 15mm Thickness Sponge Elastic Materials

Description :

30Khz ultrasonic cutting knife does not need sharp blades, does not require a lot of pressure, and will not chip or damage the cutting material. The cutting blade is vibrating ultrasonically, and the friction resistance is very small, and the material to be cut is not easy to stick to the blade. It has obvious cutting effect on frozen, viscous and elastic materials. It is especially effective for cutting food, rubber or objects that are inconvenient to apply pressure. At the same time of cutting, the cutting part has fusion. The cutting part is perfectly sealed, which can prevent the loosening of the cut material (such as textile material flash). The use of ultrasonic cutting machine can also be expanded, such as digging holes, shoveling, scraping paint, carving, slitting and so on.

Specifications:

Item No QR-C30Y
Power 800W
Generator Digital generator
Frequency 30KHZ
Voltage 220V
Weight of Blade 1.25kgs
Gross weight 11.5Kg
Application Fabric or Plastic cutter

Features:

1. Labor-saving, specially designed processing strength is more than the same level products, reducing the operator's effort.

2. Time-saving, high-speed vibration of 30,000 times per second, self-control of output, higher efficiency

3. Power-saving, original and powerful, power-saving mode, the knife handle is not easy to get hot, to meet various work requirements.

4. Stronger, the front end adopts a clamping tool, the blade grip is strong and even.

5. More beautiful, with the help of ultrasonic vibration, the cut surface is beautiful and neat

6. Safer, automatic detection system, warning when failure

Vibrating Ultrasonically Cutting Blade 30Khz for 8mm 15mm Thickness Sponge Elastic Materials
