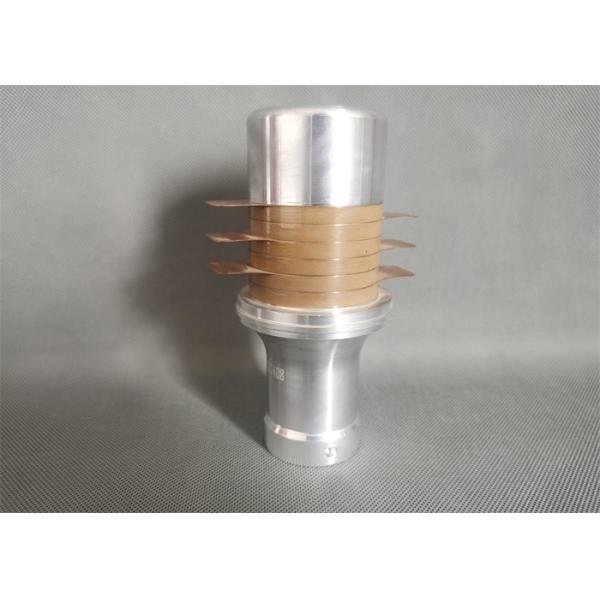

15Khz 2600w Ultrasonic Trumpet Type Transducer Branson System for Plastic Welding Machine

Description:

QRsonic adopts QM value, technical strength, low strong field loss, high power density, low mechanical dielectric loss, high piezoelectric coupling coefficient, stable performance piezoelectric ceramic sheet, through the precise structure design, and the parameters of the ceramic sheet are highly consistent. Accurate, corrosion-resistant, non-rusting, 62 phosphor copper with excellent conductivity, assembled into an ultrasonic transducer with strong stability and long service life.

Specifications:

Model QR-6015-6BD
Frequency 15 khz
Output power 3600 watt
Joint bolt 1/2-20UNF
Ceramic disc Diameter 60mm
Qty of ceramic discs 6pcs
Capacitance 19-22.5nf
Amplitude 10 um
Application Plastic welding machine

Parameters:

Item No.

Connect screw (Size)

Ceramic diameter (mm)

Quantity of Ceramic (pc)

 Capacitance

Input power (W)
Yellow Grey Black
6015-4BZ-BZ M16 *1 60 4 9000-10000 10000-11000 12500-13500 2600
6015-4BZ-LR M16 *1 60 4 9000-10000 10000-11000 12500-13500 2600
6015-4BZ-RS M16 *1 60 4 9000-10000 10000-11000 12500-13500 2600
7015-4BZ-BZ M16 *1 70 4 12500-14000 / / 3600
6015-4BD-BZ M16 *1 60 4 9000-10000 10000-11000 / 2600
6015-6BD-BZ M16 *1 60 6 19000-20500 / 23000-25000 3600
7015-4BD-BZ M16 *1 70 4 12500-14000 / / 3600
6015-4BZ-LS M16 *1 60 8 18000-20000 20000-22000 / 4200
4515-4YZ-SS M16 *1 45 8 / / 25000-27000 2400
4515-4JZ-SS M16 *1 45 8 19000-21000 / / 2800
5015-4BZ-SZ M16 *1 50 8 22000-24000 / / 3600
5020-4CZ-BJ 3/8-24UNF 50 4 11000-12000 13000-14000 14500-16000 1500
5020-4BZ-BJ 3/8-24UNF 50 4 11000-12000 13000-14000 14500-16000 1500
5520-4BZ-BJ 3/8-24UNF 55 4 10500-11500 / / 1800
5020-4BZ-BZ 3/8-24UNF 50 4 11000-12000 13000-14000 14500-16000 1500
5020-4HZ-BJ 3/8-24UNF 50 4 / / 11000-12000 1500
3820-4BZ-SS 3/8-24UNF 38 8 13000-14500 / / 1800
5020-4BZ-LS 1/2-20UNF 50 8 23000-25000 26000-28000 / 2800
3028-2BZ-BT / 30 2 2800-3300 3300-3800 / 400
3828-4BZ-BJ M8*1 38 4 7200-8200 / 10000-12000 800
3828-4BZ-BJL M8*1 38 4 7200-8200 / 10000-12000 800
3828-2BZ-BJL M8*1 38 2 3700-4200 / / 500
3030-4BZ-SJL M10 30 4 / 6200-7200 / 700
3030-4BZ-LJL M10 30 4 / 6200-7200 / 700
3030-4BZ-BJ M8 30 4 / 6200-7200 / 700
3535-4BD-II M8 35 4 6600-7400 / 9200-10200 800
3035-4BZ-BJL M8 30 4 5500-6200 / / 700
3040-4BZ-BJ M8 30 4 5100-5800 / 6500-7500 500
1560-2BZ-BJ / 15 2 / / 700-850 100
1070-2BZ-BJ / 10 2 700-800 / / 100

Manufacturing process of ultrasonic transducer:


The transducer is composed of a shell, a matching layer, a piezoelectric ceramic disk transducer, a backing, an outgoing cable and a Cymbal array receiver. Piezoelectric ceramic disk transducer is made of PZT-5 piezoelectric material with thickness direction polarization. The Cymbal array receiver consists of 8~16 Cymbal transducers, two metal rings and rubber washers.
1. Dry with hot air gun
2. First swing the electrode
3. Ceramics, electrode pieces, ceramics
4. Rear cover and screws
5. Positioning
6. Afterburner
7. Gluing
8. Place the oven
9. Test with testing machine
10. Joint grouting
11. Retest before packing
