Specifications
Brand Name :
QRsonic
Model Number :
QR-5020-4BD
Certification :
CE
Place of Origin :
China
MOQ :
1 pcs
Price :
Negotation
Payment Terms :
T/T, Western Union
Supply Ability :
2000pcs per month
Delivery Time :
3 workdays
Packaging Details :
Packed in carton
Products Name :
Ultrasonic Transducer
Frequency :
20 khz
Output power :
2000 watt
Joint bolt :
1/2-20UNF
Ceramic disc Diameter :
50mm
Qty of ceramic discs :
4pcs
Capacitance :
10.5-16nf
Application :
Ultrasonic Sonochemistry
Description

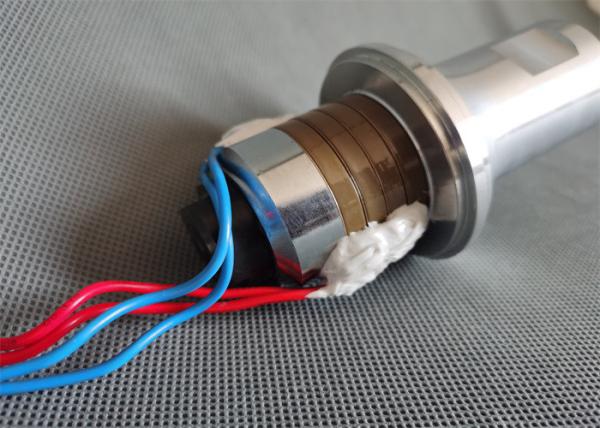

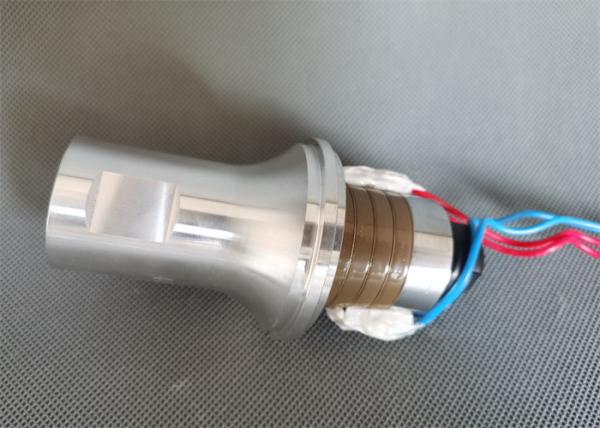

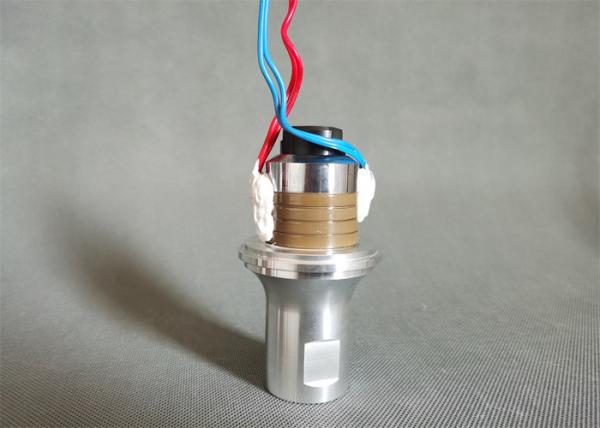

20Khz 2000w Ultrasonic Tranducer for Fluid or Liquid Case Industrial Equipment

Description:

20Khz 2000w Ultrasonic transducer is also used for water treatment, such as ultrasonic homogenization, dispersion depolymerization, phacoemulsification, wet milling and micro-milling; cell division, ultrasonic extraction; ultrasonic chemistry, transesterification reaction (biodiesel); liquid degassing, Leak detection (bottles and cans), etc.

The ultrasonic equipment produced by Hangzhou QRsonic can be used for batch processing of any volume of liquid homogenization. Laboratory ultrasonic equipment can be used to process liquids from 1.5mL to 2L in volume. Ultrasonic industrial devices are used for industrial development and mass production, with processing volumes ranging from 0.5L to 2000L.

By precisely controlling the amplitude of the ultrasonic head, we make the amplitude of the ultrasonic device used for production at different scales constant, which allows the ultrasound to be controlled and repeated. Consistent and repeatable results are produced under the same operating parameters. This is important for the quality of the materials produced and the expansion of the process from the laboratory to the production level.

Specifications:

Model QR-5020-4BD
Frequency 20khz
Output power 2000 watt
Joint bolt 1/2-20UNF
Ceramic disc Diameter 50mm
Qty of ceramic discs 4pcs
Capacitance 10.5-16nf
Amplitude 10 um
Application Ultrasonic sonochemistry system

Parameters:

Item No.

Connect screw (Size)

Ceramic diameter (mm)

Quantity of Ceramic (pc)

 Capacitance

Input power (W)
Yellow Grey Black
6015-4BZ-BZ M16 *1 60 4 9000-10000 10000-11000 12500-13500 2600
6015-4BZ-LR M16 *1 60 4 9000-10000 10000-11000 12500-13500 2600
6015-4BZ-RS M16 *1 60 4 9000-10000 10000-11000 12500-13500 2600
7015-4BZ-BZ M16 *1 70 4 12500-14000 / / 3600
6015-4BD-BZ M16 *1 60 4 9000-10000 10000-11000 / 2600
6015-6BD-BZ M16 *1 60 6 19000-20500 / 23000-25000 3600
7015-4BD-BZ M16 *1 70 4 12500-14000 / / 3600
6015-4BZ-LS M16 *1 60 8 18000-20000 20000-22000 / 4200
4515-4YZ-SS M16 *1 45 8 / / 25000-27000 2400
4515-4JZ-SS M16 *1 45 8 19000-21000 / / 2800
5015-4BZ-SZ M16 *1 50 8 22000-24000 / / 3600
5020-4CZ-BJ 3/8-24UNF 50 4 11000-12000 13000-14000 14500-16000 1500
5020-4BZ-BJ 3/8-24UNF 50 4 11000-12000 13000-14000 14500-16000 1500
5520-4BZ-BJ 3/8-24UNF 55 4 10500-11500 / / 1800
5020-4BZ-BZ 3/8-24UNF 50 4 11000-12000 13000-14000 14500-16000 1500
5020-4HZ-BJ 3/8-24UNF 50 4 / / 11000-12000 1500
3820-4BZ-SS 3/8-24UNF 38 8 13000-14500 / / 1800
5020-4BZ-LS 1/2-20UNF 50 8 23000-25000 26000-28000 / 2800
3028-2BZ-BT / 30 2 2800-3300 3300-3800 / 400
3828-4BZ-BJ M8*1 38 4 7200-8200 / 10000-12000 800
3828-4BZ-BJL M8*1 38 4 7200-8200 / 10000-12000 800
3828-2BZ-BJL M8*1 38 2 3700-4200 / / 500
3030-4BZ-SJL M10 30 4 / 6200-7200 / 700
3030-4BZ-LJL M10 30 4 / 6200-7200 / 700
3030-4BZ-BJ M8 30 4 / 6200-7200 / 700
3535-4BD-II M8 35 4 6600-7400 / 9200-10200 800
3035-4BZ-BJL M8 30 4 5500-6200 / / 700
3040-4BZ-BJ M8 30 4 5100-5800 / 6500-7500 500
1560-2BZ-BJ / 15 2 / / 700-850 100
1070-2BZ-BJ / 10 2 700-800 / / 100

20Khz 2000w Ultrasonic Tranducer for Fluid or Liquid Case Industrial Equipment
