Fuel Cell Carbon Black And Platinum Solution Catalyst Ink Ultrasonic Spraying
Fuel Cell Carbon Black And Platinum Solution Catalyst Ink Ultrasonic Spraying
Fuel Cell Carbon Black And Platinum Solution Catalyst Ink Ultrasonic Spraying
Fuel Cell Carbon Black And Platinum Solution Catalyst Ink Ultrasonic Spraying
Fuel Cell Carbon Black And Platinum Solution Catalyst Ink Ultrasonic Spraying
Fuel Cell Carbon Black And Platinum Solution Catalyst Ink Ultrasonic Spraying
Fuel Cell Carbon Black And Platinum Solution Catalyst Ink Ultrasonic Spraying
Fuel Cell Carbon Black And Platinum Solution Catalyst Ink Ultrasonic Spraying
Specifications
Brand Name :
FUNSONIC
Model Number :
FSW-4002-L
Certification :
CE
Place of Origin :
CHINA
MOQ :
1 UNIT
Price :
Negotation
Payment Terms :
T/T, Western Union
Supply Ability :
1000 unit per month
Packaging Details :
Packed by carton
Production Name :
40Khz Scattering Ultrasonic Nozzle Atomization
Frequency :
40Khz
Max Power :
15w
Automized Particle Size Range :
15-40μm
Spray flow :
0.5-20ml
Liquid viscosity :
<30cps
Particle size :
<12μm
Application :
Suitable for full surface spraying of flux
Description

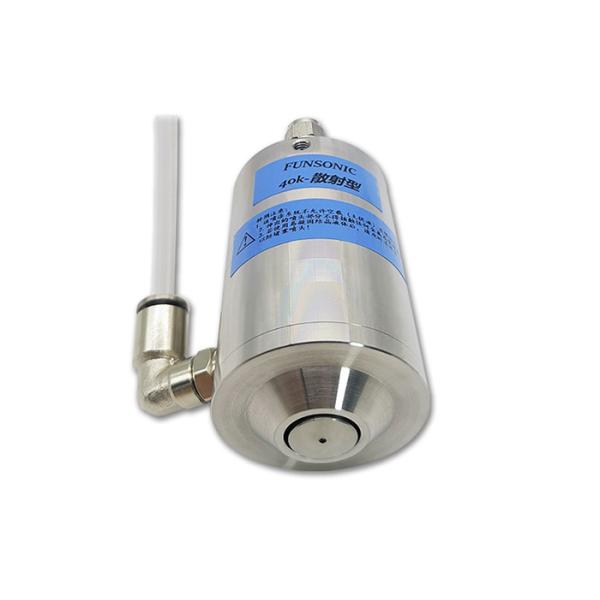

Fuel Cell Carbon Black And Platinum Solution Catalyst Ink Ultrasonic Spraying

Description:

The ultrasonic spraying technology of carbon black and platinum solution catalyst ink in fuel cells is an efficient coating method widely used in the manufacturing of fuel cell electrodes.
Carbon black, as a conductive material, plays a role in enhancing conductivity and providing support in electrodes. Platinum solution catalyst, as a catalyst, improves the efficiency of electrochemical reactions and is usually dispersed in the solution in the form of nanoparticles.
The ultrasonic spraying technology of carbon black and platinum solution catalyst ink in fuel cells forms a uniform ink by mixing carbon black and platinum catalyst in appropriate proportions. By selecting the appropriate ultrasonic spraying equipment, setting the appropriate frequency and power, adjusting the spraying speed and flow rate, the desired coating thickness can be achieved.

Parameters:

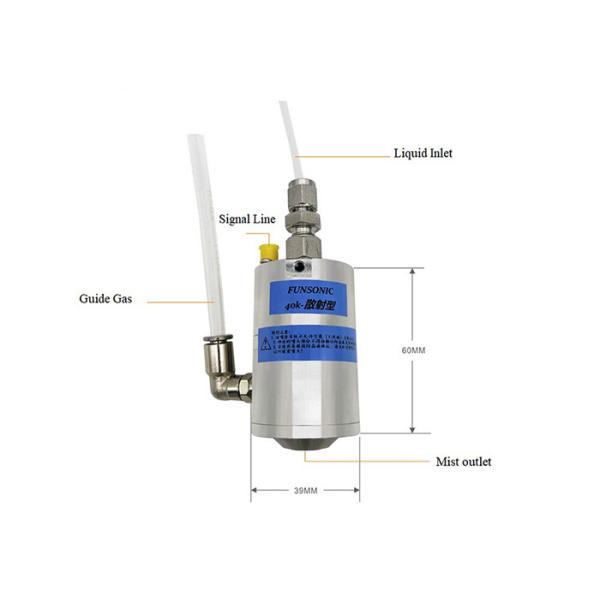

Model FSW-4002-L
Name 40Khz Scattering Ultrasonic Nozzle Atomization
Frequency 40Khz
Atomized particle size range(μm) 15-40
Spray width(mm) 40-80
Spray flow(ml/min) 0.5-20
Spray height(mm) 30-80
Liquid viscosity (cps) <30
Particle size (μm) <15
Diversion pressure (Mpa) <0.05
Application Suitable for Photoresist coatings on semiconductor chips

Application:

1. Deposition of CNTs (carbon nanotubes), nanowires, perovskite materials, and graphene in a uniform thin coating for alternative energy, electronics, semiconductor, or medical applications.
2. Spray catalyst ink such as carbon black and platinum solution in fuel cell manufacturing.
3. Protection and reinforcement applications using graphene or carbon nanotubes.
4. Various nanomaterials used for EMI shielding.
5. Use conductive ink for nanoimprint printing of electronic products.
6. Create a transparent conductive coating.
7. Deposition of uniform nanowires or graphene films in advanced electronic applications.
