Specifications
Brand Name :
FUNSONIC
Model Number :
FS620
Certification :
CE
Place of Origin :
CHINA
MOQ :
1 UNIT
Price :
Negotation
Payment Terms :
T/T, Western Union
Supply Ability :
1000 unit per month
Packaging Details :
Packed by Wooden Case
Production Name :
Ultrasonic Precision Spraying Machine
Frequency :
60khz
Max Power :
1-15W
Continuous Spraying Volume Max :
20-1200ml/h/pcs，Scalable
Effective Spraying Width :
2-260mm/pcs，Scalable
Spray Uniformity :
≥95%
Solution Viscosity :
≤30cps
Input Voltage :
220V±10%/50-60Hz
Description

Ultrasonic Coating Of Silicon Carbide Seed Crystal Thin Film For Microelectronic Semiconductors



Description:

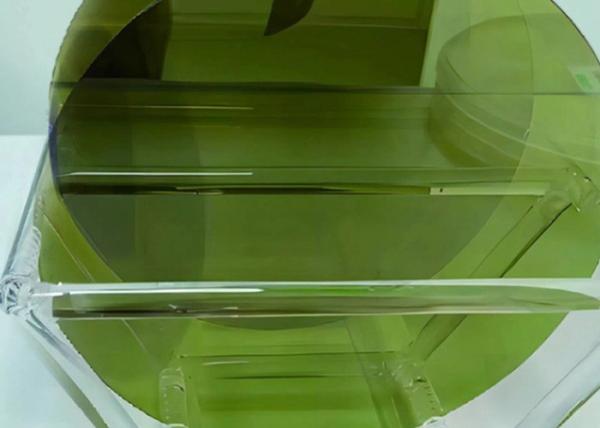

Micro electronic semiconductor silicon carbide seed crystal thin film ultrasonic coating is an emerging technology that combines the excellent characteristics of silicon carbide with the efficient coating method of ultrasonic spraying.
Due to its high hardness, high thermal conductivity, and excellent chemical stability, silicon carbide is suitable for high-temperature and high-power applications. Micro electronic semiconductor silicon carbide seed crystal thin film ultrasonic coating thin film coating can achieve efficient electrical and thermal conductivity, suitable for various electronic and optoelectronic devices.



Parameters:

Product Type

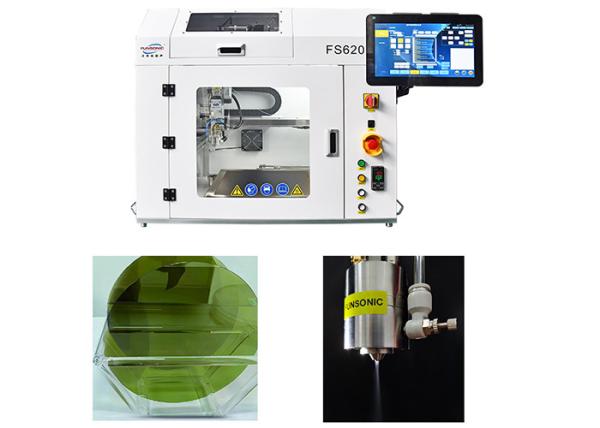

Ultrasonic Precision Spray Coating Machine Laboratory desktop Type

FS310

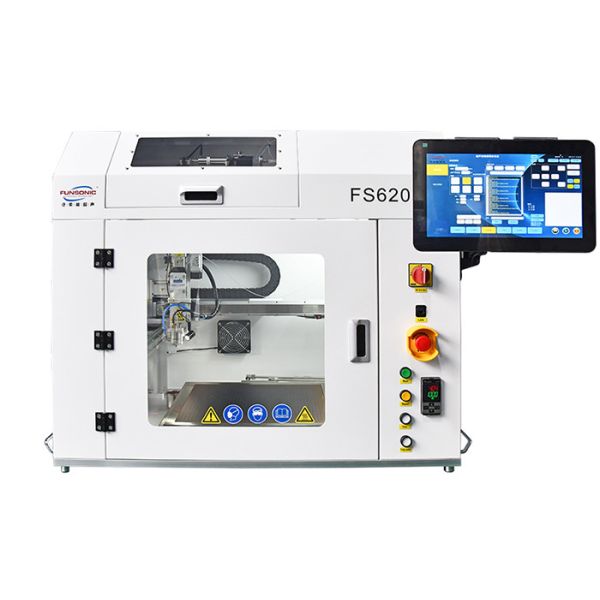

Intelligent Ultrasonic Precision Coating Machine desktop Type

FS620

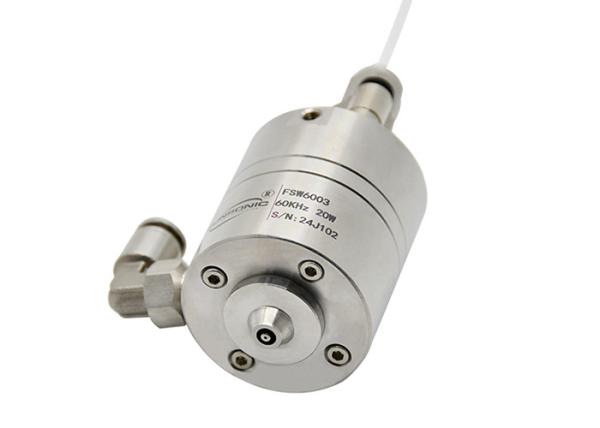

Spray Nozzle Operating Frequency 20-200KHz 20-200KHz (Normally use 60100110120K)
Nozzle Power 1-15W 1-15W
Continuous Spraying Volume Max 0.01-50ml/min 0.01-50ml/min
Effective Spraying Width 2-100mm 2-100mm
Spray Uniformity ≥95% ≥95%
Solution Conversion Rate ≥95% ≥95%
Dry Film Thickness 20nm-100μm 20nm-100μm
Solution Viscosity ≤30cps ≤30cps
Temperature Range 1-60℃ 1-60℃
Atomized Particles (Median Value) 10-45μm (distilled water), determined by the frequency of the nozzle 10-45μm (distilled water), determined by the frequency of the nozzle
Diversion Pressure Max ≤0.10MPA ≤0.15MPA
Input Voltage 220V±10%/50-60Hz 220V±10%/50-60Hz
Exercise Mode X+Y two axis fully automatic, Z-axis manual adjustment XYZ three-axis, independently programmable
Control Mode Micro computer card, 7-inch touch screen+buttons FUNSONIC spraying control system, PLC control, 13.3-inch full-color touch screen
Control Content Ultrasonic spraying, liquid supply, heating, ultrasonic dispersion and other systems Ultrasonic spraying, liquid supply, heating, ultrasonic dispersion and other systems
Liquid Supply Method Precision injection pump Precision injection pump
Ultrasonic Dispersion System (Optional) 50ml, 40K, biological grade sampler 20ml or 50ml, 40K, biological grade sampler
Rated Power of Ultrasonic Dispersion System 200W,10A 100W


Application :

1. Electronic devices: In power electronic devices, silicon carbide thin films can improve the efficiency and heat resistance of the devices.
2. Optoelectronic components: In photovoltaic and LED devices, silicon carbide thin films can enhance the photoelectric conversion efficiency.
3. Wear resistant coating: provides wear-resistant and corrosion-resistant protection on mechanical components.
