Ultrasonic Metal Atomization Technology For Tin Metal Mist
Ultrasonic Metal Atomization Technology For Tin Metal Mist
Ultrasonic Metal Atomization Technology For Tin Metal Mist
Ultrasonic Metal Atomization Technology For Tin Metal Mist
Ultrasonic Metal Atomization Technology For Tin Metal Mist
Ultrasonic Metal Atomization Technology For Tin Metal Mist
Ultrasonic Metal Atomization Technology For Tin Metal Mist
Ultrasonic Metal Atomization Technology For Tin Metal Mist
Specifications
Brand Name :
FUNSONIC
Model Number :
FSM-5030-R
Certification :
CE
Place of Origin :
China
MOQ :
1 UNIT
Price :
Negotation
Payment Terms :
T/T, Western Union
Supply Ability :
1000 unit per month
Delivery Time :
5-8 work days
Packaging Details :
Packed by Wooden Case
Name :
50Khz Ultrasonic Metal Atomizer
Frequency :
50Khz
Power :
800w
Input Voltage :
220V±10%，50/60Hz
Emitter Materials :
Titanium Alloy
Application :
Atomize melted metal into powder
Description

Ultrasonic Metal Atomization Technology For Tin Metal Mist

Description:

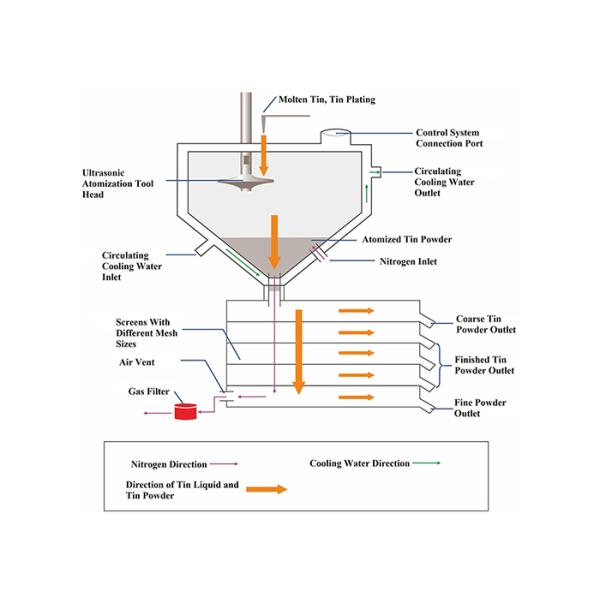

Ultrasonic metal atomization is a metal processing technology mainly used for manufacturing metal particles and metal mist. By heating metals such as aluminum, copper, and titanium to their melting points, they are melted into liquids. By placing an ultrasonic vibrator above a molten metal, high-frequency vibration is generated. These high-frequency vibrations will break the surface of the melt, forming tiny metal droplets, while introducing inert gases (such as nitrogen, argon, etc.) to flow through the metal droplets and blow them away to form a metal mist. Finally, these fine metal particles are collected using a filter or cooling device and rapidly cooled to solidify into metal powder.

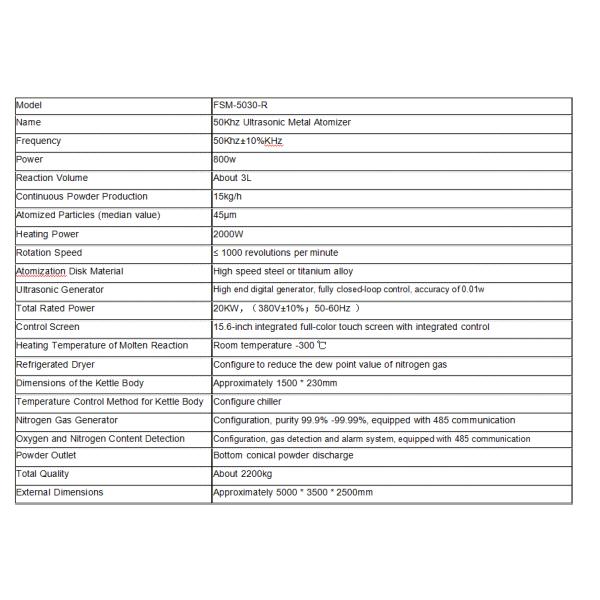

Parameters:

Ultrasonic Metal Atomization Technology For Tin Metal Mist

Ultrasonic Metal Atomization Technology For Tin Metal Mist

Advantages :

1. Generate small and uniform metal particles with controllable particle size
2. High metal utilization rate and low energy consumption
3. Suitable for high melting point metals such as titanium, nickel, etc
4. Easy to achieve large-scale production
This technology is widely used in the manufacturing of metal powders, coatings, battery materials, and other fields. By adjusting parameters such as ultrasonic frequency, airflow velocity, etc., metal particles of different sizes and properties can be produced.

Ultrasonic Metal Atomization Technology For Tin Metal Mist

Ultrasonic Metal Atomization Technology For Tin Metal MistUltrasonic Metal Atomization Technology For Tin Metal Mist
