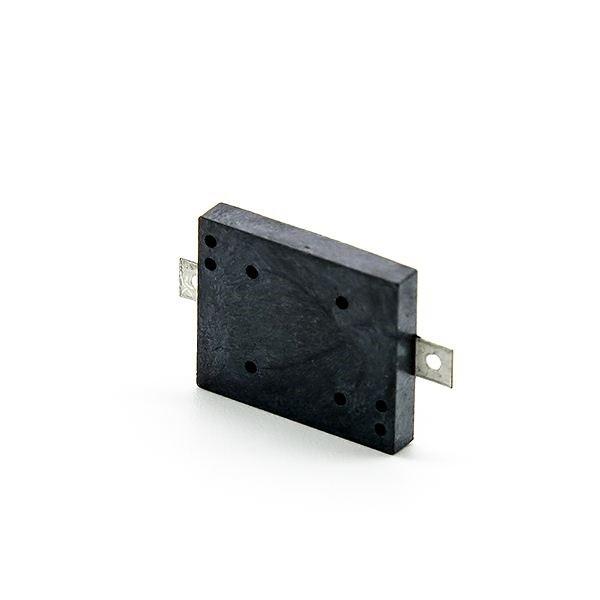

Ultrathin smd piezo buzzer 3v 2mA 2731HZ Piezoelectric smd buzzer low current
Ultrathin smd piezo buzzer 3v 2mA 2731HZ Piezoelectric smd buzzer low current
Ultrathin smd piezo buzzer 3v 2mA 2731HZ Piezoelectric smd buzzer low current
Ultrathin smd piezo buzzer 3v 2mA 2731HZ Piezoelectric smd buzzer low current
Ultrathin smd piezo buzzer 3v 2mA 2731HZ Piezoelectric smd buzzer low current
Ultrathin smd piezo buzzer 3v 2mA 2731HZ Piezoelectric smd buzzer low current
Ultrathin smd piezo buzzer 3v 2mA 2731HZ Piezoelectric smd buzzer low current
Ultrathin smd piezo buzzer 3v 2mA 2731HZ Piezoelectric smd buzzer low current
Specifications
Brand Name :
TaiMI
Model Number :
TM-110917F
Certification :
ROHS/REACH
Place of Origin :
CHINA
MOQ :
Negotiable
Price :
Negotiable
Payment Terms :
Western Union, MoneyGram, T/T , Paypal
Supply Ability :
1000000pcs/Month
Delivery Time :
2 weeks
Packaging Details :
safety packing
Housing Material :
LCP
Frequency :
2731HZ
sounds :
min 70db
voltage :
5V
Current :
MAX 2mA
Type :
SMD piezo Buzzer
Description

Ultrathin smd piezo buzzer 3v 2mA 2731HZ Piezoelectric smd buzzer low current

As this product is not protected from foreign material entering, please make sure that any foreign materials (e.g. magnetic powder, washing solvent, flux, corrosive gas) do not enter this product in your production processes. The functional degradation (e.g. SPL down) may occur if foreign material enter it.

Dimensions Unit: mm

Ultrathin smd piezo buzzer 3v 2mA 2731HZ Piezoelectric smd buzzer low current

*Unit: mm; Tolerance: ±0.3mmExcept Specified

*Housing Material: Black LCP

*Terminal plate: 2 soldering pads, tin Plating Brass

Measuring conditio

After any following tests the part shall meet specifications without any degradation in appearance and performance except SPL. SPL shall not deviate more than -10 dB from the initial value

1 Resonant Frequency 4100±500Hz
2 Operating Voltage 1~20 Vp-p
3 Rated Current Max.5mA ,at 4.1KHz 50% duty Square Wave 5Vp-p
4 Sound Output at 10cm Min. 75dB,at 4.1KHz 50% duty Square Wave 5Vp-p
5 Capacitance 12000±30%pF at 1KHz
6 Operating Temperature -20℃~+70℃
7 Store Temperature -30℃~+80℃
8 Net Weight Approx 0.5g
9 RoHS Yes

Electrical And Acoustical Measuring Condition

Recommended Setting

Ultrathin smd piezo buzzer 3v 2mA 2731HZ Piezoelectric smd buzzer low current

Frequency Response

Ultrathin smd piezo buzzer 3v 2mA 2731HZ Piezoelectric smd buzzer low current

5Vp-p 50% duty Square wave,10cm

Ultrathin smd piezo buzzer 3v 2mA 2731HZ Piezoelectric smd buzzer low current
