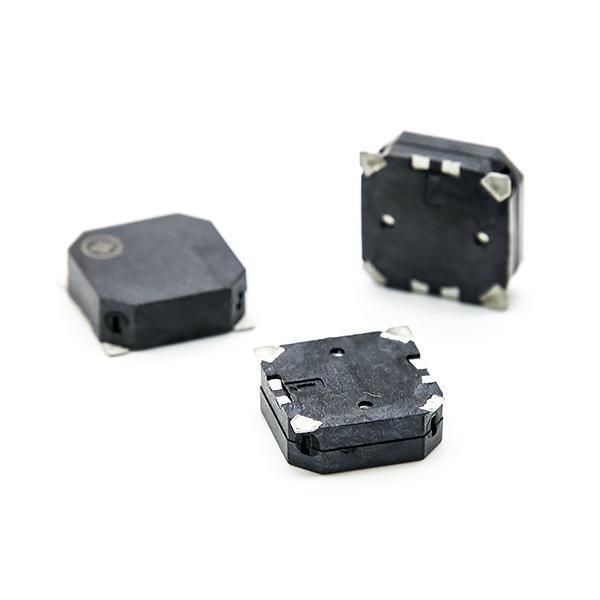

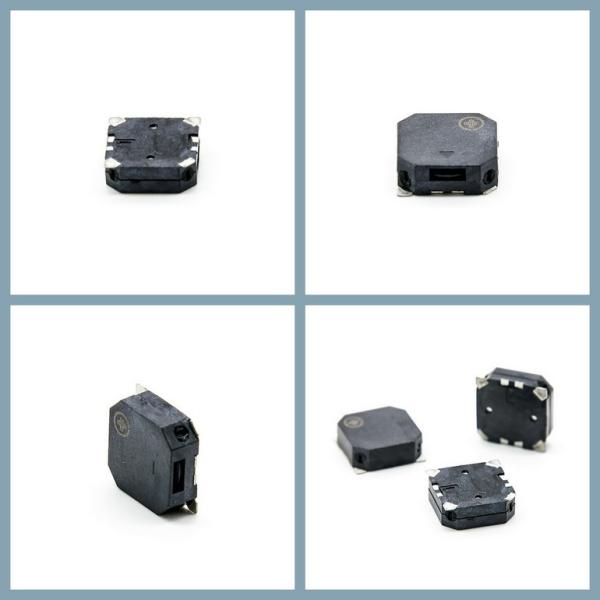

High temperature resistance magnetic buzzer SMD 3.6V 2700Hz LCP High sounds
High temperature resistance magnetic buzzer SMD 3.6V 2700Hz LCP High sounds
High temperature resistance magnetic buzzer SMD 3.6V 2700Hz LCP High sounds
High temperature resistance magnetic buzzer SMD 3.6V 2700Hz LCP High sounds
High temperature resistance magnetic buzzer SMD 3.6V 2700Hz LCP High sounds
High temperature resistance magnetic buzzer SMD 3.6V 2700Hz LCP High sounds
High temperature resistance magnetic buzzer SMD 3.6V 2700Hz LCP High sounds
High temperature resistance magnetic buzzer SMD 3.6V 2700Hz LCP High sounds
High temperature resistance magnetic buzzer SMD 3.6V 2700Hz LCP High sounds
High temperature resistance magnetic buzzer SMD 3.6V 2700Hz LCP High sounds
Specifications
Brand Name :
TaiMI
Model Number :
TM-8503H
Certification :
ROHS/REACH
Place of Origin :
CHINA
MOQ :
Negotiable
Price :
Negotiable
Payment Terms :
Western Union, MoneyGram, T/T , Paypal
Supply Ability :
1000000pcs/Month
Delivery Time :
2 weeks
Packaging Details :
safety packing
Housing Material :
LCP
Frequency :
2731HZ
sounds :
min 80db
voltage :
3V
Coil Resistance :
12ohms
Current :
MAX 80mA
Description

High temperature resistance magnetic buzzer SMD 3.6V 2700Hz LCP High sounds

Features of 3.6V magnetic buzzer 2700Hz

As this product is not protected from foreign material entering, please make sure that any foreign materials (e.g. magnetic powder, washing solvent, flux, corrosive gas) do not enter this product in your production processes. The functional degradation (e.g. SPL down) may occur if foreign material enter it.

Dimensions Unit: mm

High temperature resistance magnetic buzzer SMD 3.6V 2700Hz LCP High sounds

*Unit: mm; Tolerance: ±0.3mmExcept Specified

*Housing Material: Black LCP

*Terminal plate: 3 soldering pads, tin Plating Brass

Buzzer SMD Model Details

After any following tests the part shall meet specifications without any degradation in appearance and performance except SPL. SPL shall not deviate more than -10 dB from the initial value

1 Rated Voltage 3.6 Vo-p
2 Operating Voltage 2.5~4.5 Vo-p
3 Rated Current Max.100mA ,at 2700Hz 50% duty Square Wave 3.6Vo-p
4 Sound Output at 10cm Min. 85dB,at 2700Hz 50% duty Square Wave 3.6Vo-p
5 Coil Resistance 16±3Ω
6 Resonant Frequency 2700Hz
7 Operating Temperature -20℃~+70℃
8 Store Temperature -40℃~+85℃
9 Net Weight Approx 1g
10 RoHS Yes

agnetic Buzzer Electrical And Acoustical Measuring Condition

Recommended Driving Circuit

High temperature resistance magnetic buzzer SMD 3.6V 2700Hz LCP High sounds

Recommended Setting

High temperature resistance magnetic buzzer SMD 3.6V 2700Hz LCP High sounds

Buzzer SMD Advantages

High temperature resistance magnetic buzzer SMD 3.6V 2700Hz LCP High sounds
