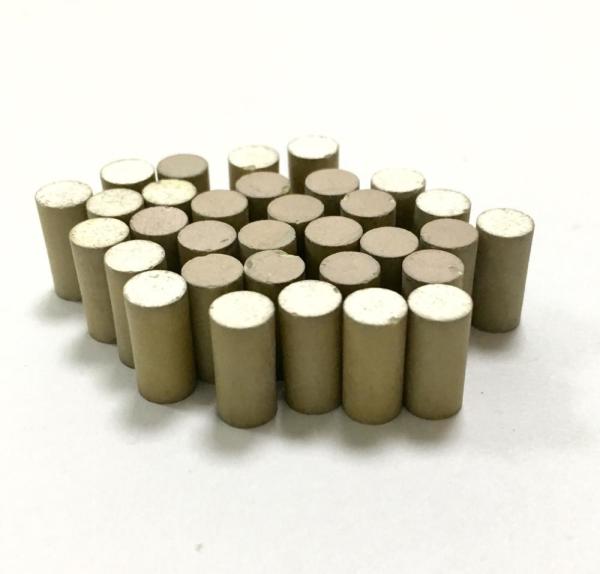

Piezo element Piezoceramic Transducer for lighter 5 x 10mm quartz ultrasonic crysta
Piezo element Piezoceramic Transducer for lighter 5 x 10mm quartz ultrasonic crysta
Piezo element Piezoceramic Transducer for lighter 5 x 10mm quartz ultrasonic crysta
Piezo element Piezoceramic Transducer for lighter 5 x 10mm quartz ultrasonic crysta
Piezo element Piezoceramic Transducer for lighter 5 x 10mm quartz ultrasonic crysta
Piezo element Piezoceramic Transducer for lighter 5 x 10mm quartz ultrasonic crysta
Piezo element Piezoceramic Transducer for lighter 5 x 10mm quartz ultrasonic crysta
Piezo element Piezoceramic Transducer for lighter 5 x 10mm quartz ultrasonic crysta
Specifications
Brand Name :
Laimi
Model Number :
TM-5*10
Certification :
ROHS/REACH
Place of Origin :
CHINA
MOQ :
Negotiable
Price :
Negotiable
Payment Terms :
T/T, Western Union, MoneyGram, PAYPAL
Supply Ability :
10000000pcs/Month
Delivery Time :
10~15 work day
Packaging Details :
safety packing
MATERIAL :
PZT
SIZE :
5*10mm
color :
gold/yellow color
Approved :
ROHS/CE
Packing :
salfty packing
lead time :
10 days
Description

Piezo element Piezoceramic Transducer for lighter 5 x 10mm quartz ultrasonic crysta

piezo element for lighter 5 x 10mm quartz ultrasonic crystal gold/yellow color
--------------------------------------------------------------------------------------
Product Details
1.Operation Temperature: -40oC~ -275oC
2.Power Voltage: ≥15KV
3.Operation Power: ≤4Kgf
4.Electromenchanical Coupling Coefficient: KPT=0.62
5.Relative Dielectric Constant: K33=1750
6.Piezoelectric Constant: D33=400×10-12 C/N
7.Service Life: ≥10,000 Times
8.Approval: CE ,ROSH

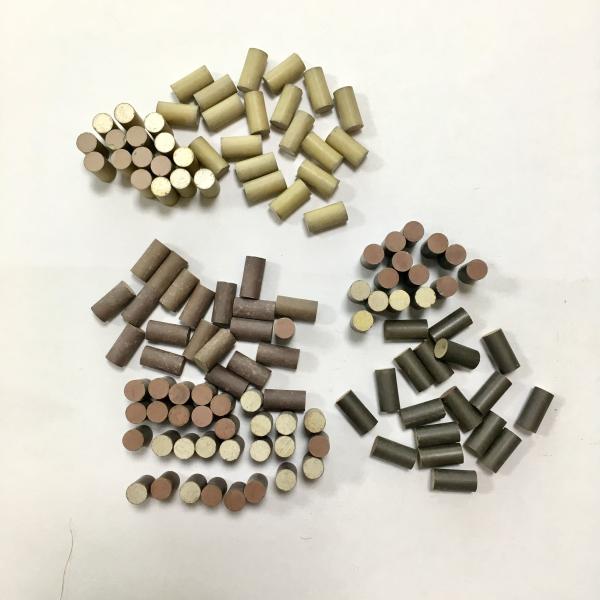

Piezo Ceramic Mounted Piezo Piezo crystal Best quality black piezo crystal

Size: 5x10mm, 6.35x16mm, 6.35x15mm, 4.3x9mm , 2.15x5, 4.75x10, 2.6x6, 2.7x5mm-----

Material: 406A, 406D, 681, FM, 725,686,726------

Qty/ctn: 10,000pcs , Packing according to request.

Good price

Samples can be sent for checking firstly.

Detailed Product Description
Piezo Impact Element
Part No
Dimension
(mm)
d33
Capacitance
(pf)
Frequency
(KHz)
TM-6.35 x 16
Φ6.35 x 16
≥ 525.2 x 10-12 C/N
30.90 ± 10%
35.5
TM-5 x 10
Φ5 x 10
≥ 362.8 x 10-12 C/N
17.38 ± 10%
51.9
TM-5 x 10(86)
Φ5 x 10
≥ 518.4 x 10-12 C/N
29.21 ± 10%
55.2
TM-2.5 x 5
Φ2.5 x 5
≥ 350 x 10-12 C/N
12 ± 10%
40
Piezo element Piezoceramic Transducer for lighter 5 x 10mm quartz ultrasonic crysta
