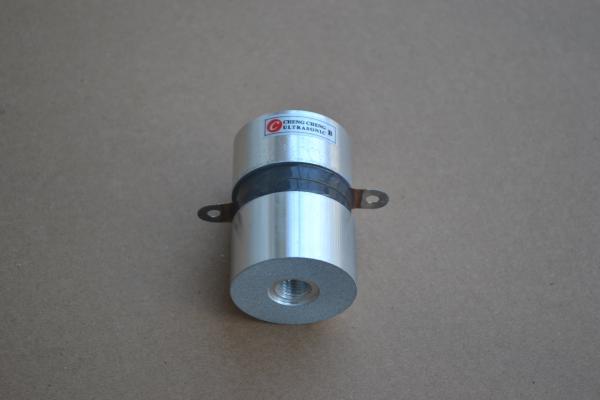

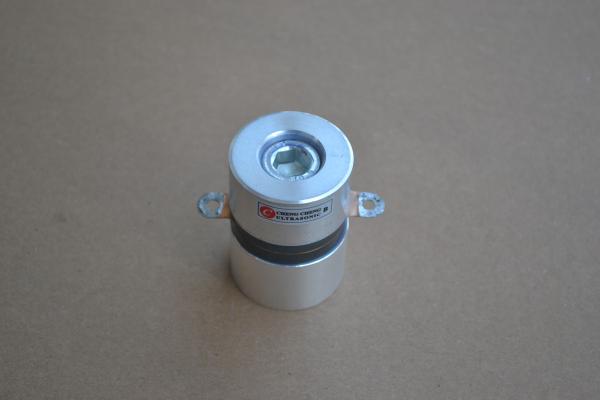

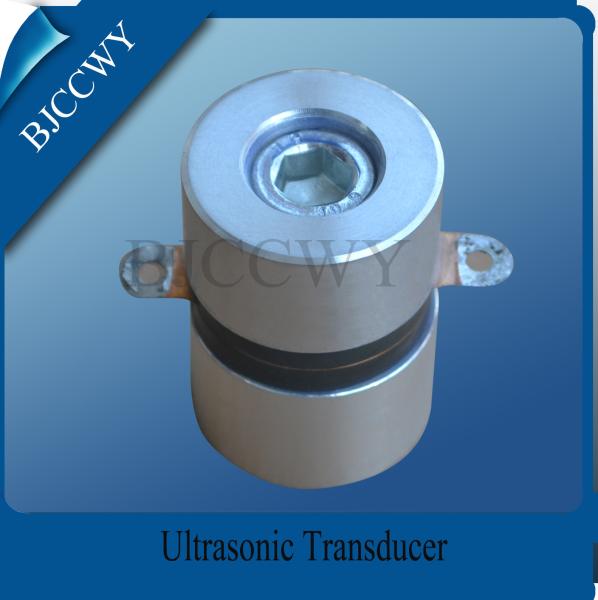

Waterproof Piezo transducer Multi Frequency Ultrasonic Transducer For Cleaning
Waterproof Piezo transducer Multi Frequency Ultrasonic Transducer For Cleaning
Waterproof Piezo transducer Multi Frequency Ultrasonic Transducer For Cleaning
Waterproof Piezo transducer Multi Frequency Ultrasonic Transducer For Cleaning
Waterproof Piezo transducer Multi Frequency Ultrasonic Transducer For Cleaning
Waterproof Piezo transducer Multi Frequency Ultrasonic Transducer For Cleaning
Waterproof Piezo transducer Multi Frequency Ultrasonic Transducer For Cleaning
Waterproof Piezo transducer Multi Frequency Ultrasonic Transducer For Cleaning
Specifications
Place of Origin :
CN
Brand Name :
CCWY
Certification :
CE ROSH TUV
Model Number :
CCWY
MOQ :
1PCS
Price :
$6--$15
Packaging Details :
CARTON
Delivery Time :
On stock
Payment Terms :
T/T
Supply Ability :
20.000.000 PER MONTH
Description

41khz 76khz 87khz 100khz 173khz 40w high effect five frequency ultrasonic transducers and piezo transducer

Quick Detail

three frequency ultrasonic transducer

41khz76khz87khz100khz173khz40w:

Piezoelectric transducer uses the piezoelectric effect to realize transduction between electric and sound energy. It comprises a radiation head, electrode, cap, prestressed bolt, piezoelectric chip and an insulating tube.

Waterproof Piezo transducer Multi Frequency Ultrasonic Transducer For Cleaning

Description

three frequency ultrasonic transducer 41khz76khz87khz100khz173khz40w:

◊ High efficiency: high mechanical parameter Q, the transduction efficient between electricity and sound above 95%.

◊ High amplitude: the transducer strength is improved by fixing the high speed vibrator directly on the base of washing groove with bolt. Compare with a magnetic expansion vibrator, its amplitude can be improved above 50%.

◊ Good heat resistance: a large range of working temperature, low resonance impedance and heat productivity.

◊ Good construction: fastened by bolt, easy for assembling, high reliability.

Applications

widely used in ultrasonic cleaning machine and high-power industry cleaning devices.

Specifications

three frequency ultrasonic transducer

(41khz76khz87khz100khz173khz40w)

Type

Length

(mm)

Weigth(g)

Frequency(khz)

Resonance

Impedance(Ω)

Capacity

(Pf)±10﹪

Power(w)

CCH-4040D-

41/76/87/100/143

KHZ P 4

54

280

41/76/87/100/173

<50

5200

40

Competitive Advantage

three frequency ultrasonic transducer 41khz76khz87khz100khz173khz40w

◊ High efficiency

◊ High amplitude:

◊ Good heat resistance

◊ Good construction:
