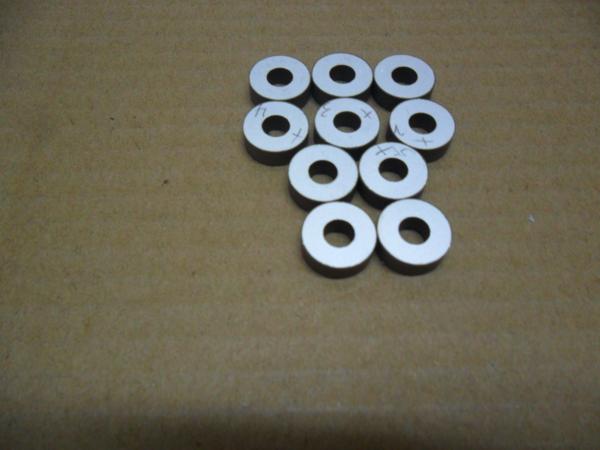

PZT8 Ceramic Piezoelectric Plate for medical machine cleaning welding transducer
PZT8 Ceramic Piezoelectric Plate for medical machine cleaning welding transducer
PZT8 Ceramic Piezoelectric Plate for medical machine cleaning welding transducer
PZT8 Ceramic Piezoelectric Plate for medical machine cleaning welding transducer
Specifications
Place of Origin :
CN
Brand Name :
CCWY
Certification :
CE ROSH TUV
Model Number :
CCWY
MOQ :
1PCS
Price :
$50--$120
Packaging Details :
CARTON
Delivery Time :
On stock
Payment Terms :
T/T
Supply Ability :
20.000.000 PER MONTH
Description

PZT8 Ceramic Piezoelectric Plate for medical machine cleaning welding transducer



Quick Detail of 50*17*5 Ring Piezoelectric Ceramic:


all kinds of piezoceramics and piezoelectric ceramic.we can produce according to the required size.
the materials have the pzt4,pzt5 ,pzt8 or other required material.


Description of 50*17*5 Ring Piezoelectric Ceramic:


◊ High efficiency: high mechanical parameter Q, the transduction efficient between electricity and sound above 95%.
◊ High amplitude: the transducer strength is improved by fixing the high speed vibrator directly on the base of washing groove with bolt. Compare with a magnetic expansion vibrator, its amplitude can be improved above 50%.
◊ Good heat resistance: a large range of working temperature, low resonance impedance and heat productivity.
◊ Good construction: fastened by bolt, easy for assembling, high reliability.


Applications of 50*17*5 Ring Piezoelectric Ceramic:


widely used in all kinds of ultrasonic sensor.ultrasonic transducer.Medical,ultrasonic detectors and so on



Specifications of 50*17*5 Ring Piezoelectric Ceramic:

Dimensions

(mm)

Capacity

C (pF)

Weak field dissipation

Tgδ (12v)

Strong field dissipation

Tg δ (400v)

Radial frequency

Fr(KHz)

Resonance impedance

Zm (∩ )

Thick frequency

Ft (KHz)

Coupling modulus

Kr (%)

Quality factor

Qm

Φ50*Φ17*5

3160±10%

≤0.5%

≤1.0%

34.8±5%

≤15

410

≥45

≥800



Competitive Advantage of 50*17*5 Ring Piezoelectric Ceramic:

◊ High efficiency
◊ High amplitude:
◊ Good heat resistance
◊ Good construction:
