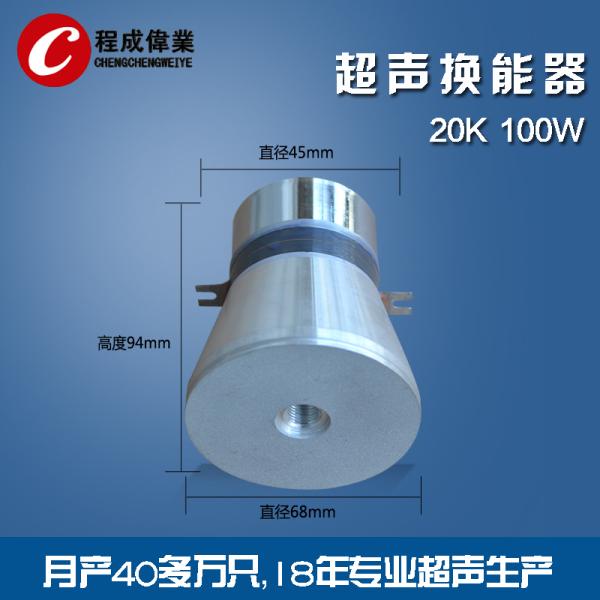

20 Khz 100w High Power Ultrasonic Transducer For Ultrasonic Tank Cleaner
20 Khz 100w High Power Ultrasonic Transducer For Ultrasonic Tank Cleaner
Specifications
Brand Name :
CCWY
Model Number :
CCWY
Certification :
CE ROSH TUV
Place of Origin :
CN
MOQ :
1PCS
Payment Terms :
T/T
Supply Ability :
20.000.000 PER MONTH
Delivery Time :
On stock
Packaging Details :
CARTON
Item :
CCH-6845D-20LA Pzt-8
Length(mm) :
94
Weight(g) :
900
Frequency(KHZ) :
20
Resonance Impedance :
10-20 Ω
Input Power(w) :
100
Description

20khz 100w High Quality Ultrasonic Cleaning Transducer for Ultrasonic Tank Cleaner

Quick Detail

20khz 100w ultrasonic cleaning transducer:

Piezoelectric transducer uses the piezoelectric effect to realize transduction between electric and sound energy. It comprises a radiation head, electrode, cap, prestressed bolt, piezoelectric chip and an insulating tube.

Applications

widely used in ultrasonic cleaning machine and high-power industry cleaning devices.

Naming methods as following:

20 Khz 100w High Power Ultrasonic Transducer For Ultrasonic Tank Cleaner

20 Khz 100w High Power Ultrasonic Transducer For Ultrasonic Tank Cleaner

Specifications

20khz100w ultrasonic cleaning transducer:

Type

Length

(mm)

Weigh

(g)

Frequency

(KHz)

Resonance

Impedance

(Ω)

Static

Capacity

(pF)±10%

Input

Power

(W)

CCH-6845D-20LA

PZT-8

94

900

20

10-20

5200

100

20 Khz 100w High Power Ultrasonic Transducer For Ultrasonic Tank Cleaner
