5m Long Range Ultrasonic Sensor Module 48KHZ Obstacle Avoidance Sensor IP69
5m Long Range Ultrasonic Sensor Module 48KHZ Obstacle Avoidance Sensor IP69
Specifications
Model Number :
VU0001
Place of Origin :
Guangdong, China
Brand Name :
AUDIOWELL
MOQ :
2000 pieces
Price :
$18.00/pieces >=2000 pieces
Series :
Ultrasonic sensor
Features :
5m detection range
Mounting Type :
concealed
Description :
Ultrasonic obstacle avoidance sensor, Ultrasonic Sensor
Type :
Ultrasonic Sensor
Usage :
distance control
Theory :
Distance Measuring Sensor
Output :
Digital output
Max. range :
5m
Frequency :
48KHZ
Direction angle :
X: 100, Y: 100
Detection range :
30 cm~50 cm
Detection accuracy :
≤±5 cm
Communication protocol :
LIN 2.2
Date output frequency :
≤25 Hz
Operating input voltage :
12 V (9~16 V)
Operating input current :
≤20 mA
Operating temperature :
-40℃~+85℃
Description

AUDIOWELL 5m long range ultrasonic sensor module obstacle avoidance sensor ultrasonic sensor

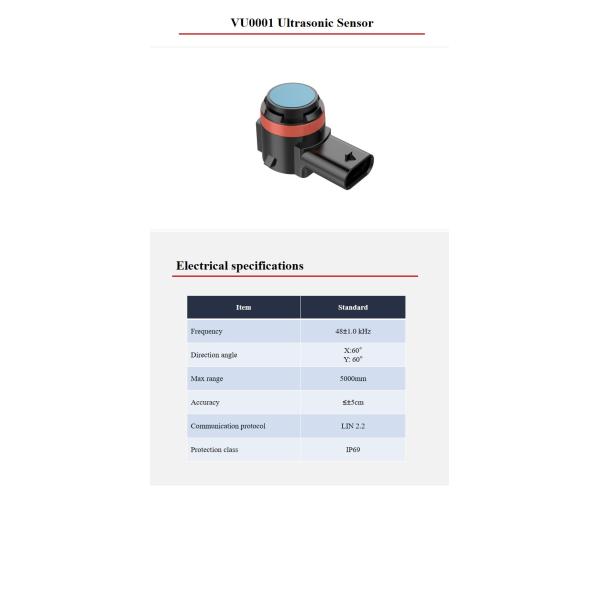

Product Details
5m Long Range Ultrasonic Sensor Module 48KHZ Obstacle Avoidance Sensor IP69
Item
Standard
Frequency
48±1.0 KHz
Direction Angle
X: 100±5° Y: 100±5°
Max Range
5000 mm
Accuracy
≤±5 cm
Communication Protocol
LIN 2.2
Protection Level
IP 69
5m Long Range Ultrasonic Sensor Module 48KHZ Obstacle Avoidance Sensor IP69
More information
Company Profile
5m Long Range Ultrasonic Sensor Module 48KHZ Obstacle Avoidance Sensor IP69
5m Long Range Ultrasonic Sensor Module 48KHZ Obstacle Avoidance Sensor IP69
5m Long Range Ultrasonic Sensor Module 48KHZ Obstacle Avoidance Sensor IP69
FAQ
Q: Are you a manufacturer or a trading company?
A: We have been specialized in the piezo ceramic related products manufacturing for 23 years.
Q: Where is your factory located?
A: Factory adress: No.2 Heping Road, Shali Ind.Park,Zhaoqing Hi-tech Ind.Development Zone,Guangdong,China
Q: What's the minimum order of your company?
A: Our minimum order quantity depends on products. Please email us to check.
Q: Could I have samples for testing first?
A: Yes, definitely you can. After confirming your requirements, we will quote and discuss with you about the samples.
Q: Could you send me a price list?
A: We quote according to the products and the quantity you need. Please contact salesman, and let them know your requirements, they will provide the price list for you.
Q: Could we have our logo or company name to be printed on your products or packages?
A: Sure. Your logo could be printed on your products by different ways.
Q: Could you customize the products according to my requirements?
A: Yes. We could customize the products for you.
Q: How does your factory do regarding quality control?
A: Quality is priority. We always attach great importance to quality control from the beginning to the end of production.
