Specifications
Model Number :
TK0163-0001
Place of Origin :
Guangdong, China
Brand Name :
AUDIOWELL
MOQ :
2000 pieces
Price :
$10.00 - $12.00/pieces
Series :
Ultrasonic sensor
Features :
AK2 system
Mounting Type :
concealed
Description :
AK2 ultrasonic sensor for car parking, AK2 Ultrasonic Parking Sensor
Type :
Ultrasonic Sensor
Usage :
Parking distance control
Theory :
Distance Measuring Sensor
Output :
Digital output
Brand :
Audiowell
Product name :
AK2 Ultrasonic Parking Sensor
Frequency :
55.5±1.0 KHz
Echo Sensitivity :
28~64 LSB
Ring Time :
1.0~1.45 ms
X-axle direction angle :
90°±15°(Typical)
Y-axle direction angle :
45°±15°(Typical)
Capacitance :
1300±20%
Max. Input Voltage :
140 Vp-p
Operating Temperature :
-40℃~+85℃
Description

Ultrasonic Distance Sensor Piezoelectric Lidar Sensor Module For Automotive

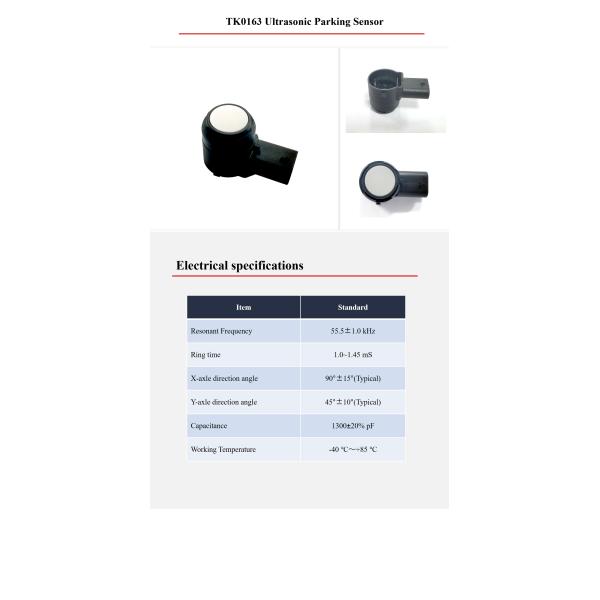

Product Details
Piezoelectric Lidar Sensor Module Automotive Distance Measuring Sensor Module
Item
Standard
Resonant Frequency
55.5±1.0 KHz
Ring Time
1.0~1.45 ms
X-axle Direction Angle
90°±15°(Typical)
Y-axle Direction Angle
45°±15°(Typical)
Capacitance
1300±20% pF
Working Temperature
-40℃~+85℃
Piezoelectric Lidar Sensor Module Automotive Distance Measuring Sensor Module
More information
Company Profile
Piezoelectric Lidar Sensor Module Automotive Distance Measuring Sensor Module
Piezoelectric Lidar Sensor Module Automotive Distance Measuring Sensor Module
Piezoelectric Lidar Sensor Module Automotive Distance Measuring Sensor Module
FAQ
Q: Are you a manufacturer or a trading company?
A: We have been specialized in the piezo ceramic related products manufacturing for 23 years.
Q: Where is your factory located?
A: Factory adress: No.2 Heping Road, Shali Ind.Park,Zhaoqing Hi-tech Ind.Development Zone,Guangdong,China
Q: What's the minimum order of your company?
A: Our minimum order quantity depends on products. Please email us to check.
Q: Could I have samples for testing first?
A: Yes, definitely you can. After confirming your requirements, we will quote and discuss with you about the samples.
Q: Could you send me a price list?
A: We quote according to the products and the quantity you need. Please contact salesman, and let them know your requirements, they will provide the price list for you.
Q: Could we have our logo or company name to be printed on your products or packages?
A: Sure. Your logo could be printed on your products by different ways.
Q: Could you customize the products according to my requirements?
A: Yes. We could customize the products for you.
Q: How does your factory do regarding quality control?
A: Quality is priority. We always attach great importance to quality control from the beginning to the end of production.
