Ultrasonic Ceramic Piezoelectric Transducers Waterproof 14.0mm Piezo Sensor
Ultrasonic Ceramic Piezoelectric Transducers Waterproof 14.0mm Piezo Sensor
Ultrasonic Ceramic Piezoelectric Transducers Waterproof 14.0mm Piezo Sensor
Ultrasonic Ceramic Piezoelectric Transducers Waterproof 14.0mm Piezo Sensor
Ultrasonic Ceramic Piezoelectric Transducers Waterproof 14.0mm Piezo Sensor
Ultrasonic Ceramic Piezoelectric Transducers Waterproof 14.0mm Piezo Sensor
Ultrasonic Ceramic Piezoelectric Transducers Waterproof 14.0mm Piezo Sensor
Ultrasonic Ceramic Piezoelectric Transducers Waterproof 14.0mm Piezo Sensor
Specifications
Model Number :
TC0033-208
Place of Origin :
Guangdong, China
Brand Name :
AUDIOWELL
MOQ :
2000 pieces
Price :
$3.00/pieces 2000-4999 pieces
Series :
Ultrasonic transducer
Features :
Waterproof
Mounting Type :
Concealed
Description :
Enclosed type ultrasonic transducer, Enclosed Type Ultrasonic Transducer
Type :
Ultrasonic Sensor
Usage :
Reverse Parking System
Theory :
Distance Measuring Sensor
Frequency :
40±1 KHz
Echo Sensitivity :
≥90 mVp-p
Decay Time :
≤1.3 mS
Directivity X-axis :
120±15 deg
Directivity Y-axis :
60±10 deg
Capacitance :
1800±15% pF
Allowable Maximum Input Voltage :
140 Vp-p
Operating Temperature :
-40~+85℃
Storage temperature :
-40~+85℃
Housing Material :
Aluminum
Description

Ultrasonic Piezoelectric Ceramic Transducers Waterproof Ultrasonic Piezo Sensor 14.0mm Ultrasonic Transducer

Product Details

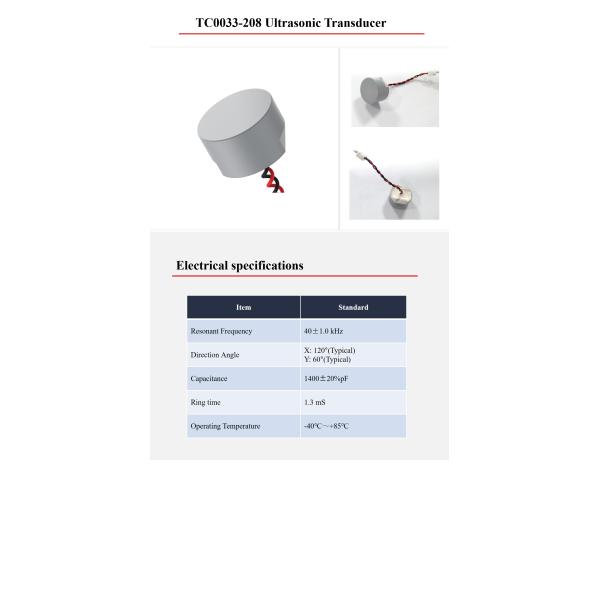

Ultrasonic Ceramic Piezoelectric Transducers Waterproof 14.0mm Piezo Sensor
Item
Standard
Resonant Frequency
40±1.0 KHz
Direct Angle
X: 120° (Typical)
Y: 60° (Typical)
Capacitance
1400±20% pF
Ring time
1.3 ms
Operating Temperature
-40℃~+85℃
Ultrasonic Ceramic Piezoelectric Transducers Waterproof 14.0mm Piezo Sensor
