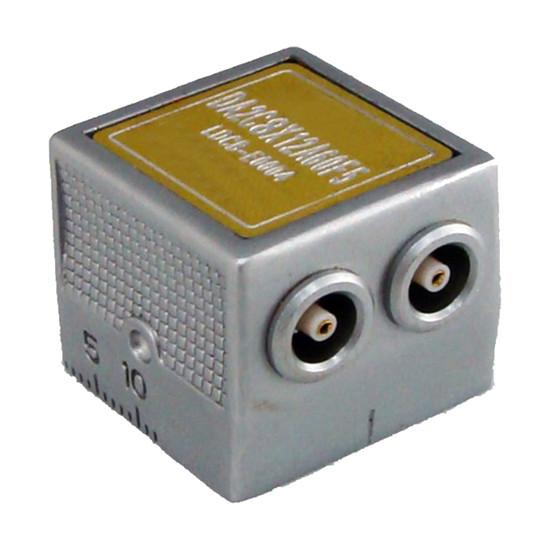

Mitech Industrial Ultrasonic Angle Beam TR Probes For Longitudinal Waves
Mitech Industrial Ultrasonic Angle Beam TR Probes For Longitudinal Waves
Specifications
Brand Name :
mitech
Certification :
iso,astm
Place of Origin :
China
MOQ :
1
Payment Terms :
T/T, Western Union,Paypal
Supply Ability :
5000units per month
Delivery Time :
5-8 work days
Packaging Details :
paper box
Description

Overview

Mitech Industrial Ultrasonic Angle Beam TR Probes For Longitudinal Waves,selects the superior performance of the piezoelectric material chip made carefully,strong penetrating power,high signal-to-noise ratio,good wear resistance,excellent near surface resolution,scattering noise is small,and medium water,plastic and other low impedance matching effect is very good.The key manufacturing process adopts special equipment and fixtures,which can eliminate the influence of human factors as far as possible.Can provide quality customized solutions to meet the special needs of customers.The interface is mostly lemo-00 (C5) connector (direction is side or top), widely used in coarse grain weld, attenuation material and austenite weld inspection.Using domestic and foreign relevant standard testing equipment and strict calibration block,demanding perfection,quality link can provide with the probe sequence number only corresponding to the measured echo waveform and spectrum graph,all data have traceability,can according to customer requirements to provide certificate from amplitude curve,accord with "EN12668-2" relevant standards at home and abroad.

Performance map

Mitech Industrial Ultrasonic Angle Beam TR Probes For Longitudinal Waves

Angle Beam TR Probes For Longitudinal Waves parameter table

Model Material Frequency(MHz) Chip Scale(mm)
DA1C8*14LA45 Composite materials

1

 8*14
DA1C8*14LA6O
DA1C8*14LA70
DA1C10*18LA45 10*18
DA1C10*18LA60
DA1C10*18LA70
DA1C15*25LA45 15*25
DA1C15*25LA60
DA1C15*25LA70
DA1C20*34LA45 20*34
DA1C20*34LA60
DA1C20*34LA70
DA2C7*10LA45

2

 7*10
DA2C7*10LA60
DA2C7*10LA70
DA2C8*14LA45 8*14
DA2C8*14LA6O
DA2C8*14LA70
DA2C10*18LA45 10*18
DA2C10*18LA60
DA2C10*18LA70
DA2C15*25LA45 15*25
DA2C15*25LA60
DA2C15*25LA70
DA2C20*34LA45 20*34
DA2C20*34LA60
DA2C20*34LA70
DA4C7*10LA45 4 7*10
DA4C7*10LA6O
DA4C7*10LA70
DA4C8*14LA45 8*14
DA4C8*14LA6O
DA4C8*14LA70
DA4C10*18LA45 10*18
DA4C10*18LA60
DA4C10*18LA70
DA4C15*25LA45 15*25
DA4C15*25LA60
DA4C15*25LA70
