Black / White Industrial X Ray Equipment Density Meter Light Transmission Based MDG-5
Black / White Industrial X Ray Equipment Density Meter Light Transmission Based MDG-5
Black / White Industrial X Ray Equipment Density Meter Light Transmission Based MDG-5
Black / White Industrial X Ray Equipment Density Meter Light Transmission Based MDG-5
Specifications
Brand Name :
Mitech
Model Number :
MDG-5
Certification :
ISO9001..
Place of Origin :
China,Beijing
MOQ :
2 set
Payment Terms :
D/P, D/A, L/C, T/T
Supply Ability :
100 pieces per month
Delivery Time :
6-10 days
Packaging Details :
Metal box
Measurement Accuracy :
0.00-3.00D≤0.02D；3.00-5.00D≤0.04D
Instrument Power :
About 10W
Power Supply :
220V±10％，50-60Hz
Dimension :
300*110*58mm
Weight :
1.5kg
Diameter of Light Hole :
2mm
Description

Black and White Density meter Introduction

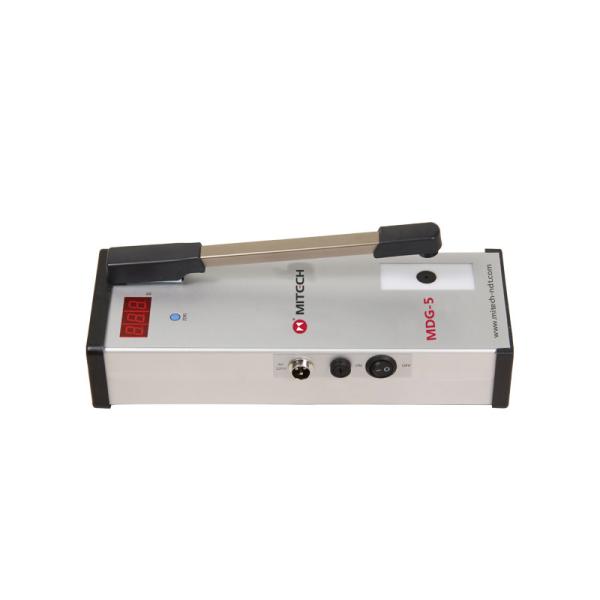

MITECH MDG-5 Black and White Density meter, based on the principle of light transmission, through the analog to the single-chip analysis and calculation, it can quickly detect the X-ray film blackness value. With small, light weight, easy carry, high-precision photoelectric sensor, it is widely used in non-destructive testing, medical and other industries. It is the ideal instrument for quality analysis of X-ray film such as pressure vessel, hull, chemical industry, bridge, hospital and so on.

Features

  • High precision, small size, light weight, easy to carry.
  • Adopt single-chip technology, high detection efficiency (only 0.8s), stable performance.

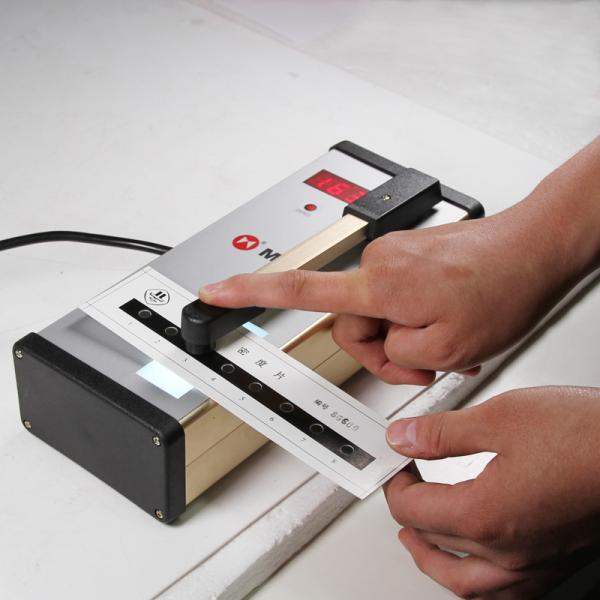

  • Equipped with standard density sheet, can be used to verify the accuracy of the instrument to ensure accurate measurement.
  • Consistent with ASME, GB/T and others relevant domestic and foreign standards.

Black / White Industrial X Ray Equipment Density Meter Light Transmission Based MDG-5

Scope of application

Widely used in pressure vessels, hull, chemical, bridges, hospitals and other X-ray quality analysis.

Applications

  • Nondestructive testing X-ray film
  • Medical radiographs

Working conditions

  • Operating temperature: 0 ℃ ~ 40 ℃;
  • Relative humidity: ≤ 85%;
  • No corrosive media in the surrounding environment;
  • No strong magnetic field in the surrounding environment

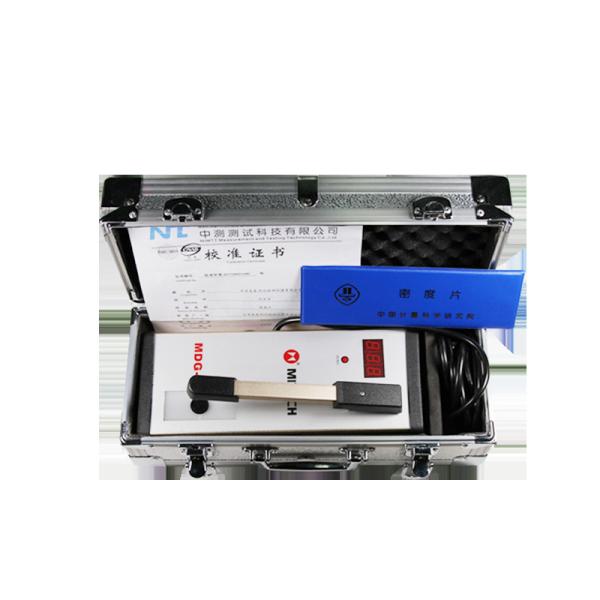

Configurations

Configuration No Parts name QTY Remarks
Standard config 1 Main unit 1
2 Standard density sheet 1
3 Power cable 1
4 2A fuse 2
5 Attached files 1 Including calibration certificate
