Overview

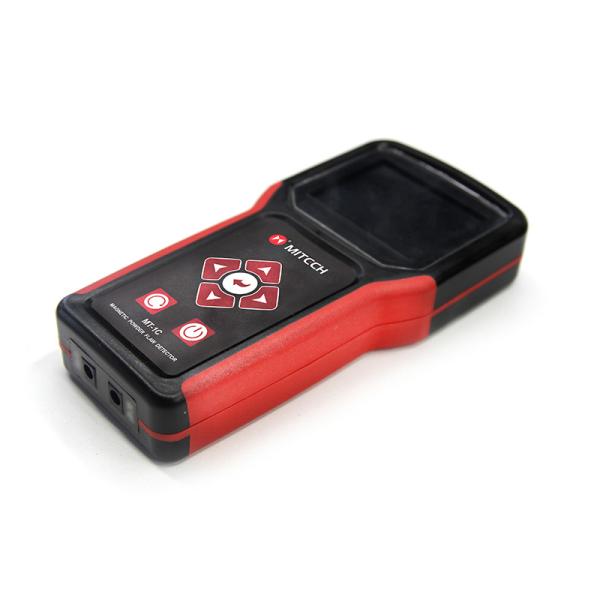

MITECH MT-1C magnetic particle flaw detector adopts high-capacity lithium battery pack, can convert DC to AC through variable-frequency, provide magnetic powder flaw detector with magnetic power supply. With low power consumption, it can continuous work for more than four hours after charging. It is especially proper for working in the wild and aerial area.

Features

• Portable high-capacity lithium battery pack without limitation of 220V power supply. With low power consumption and small volume, charging either online or offline. It is especially proper for working in the wild and aerial area.
• Adjustable illumination brightness and working power can meet different testing demand and save the setting.
• New power supply can enhance the testing depth and sensitivity.
• Pulse power supply can continuous work without chill time.
• Combine all traditional advantages in one unit can detect surface flaws fast, clearly and accurately.
• Adjustable brightness, power and range can meet different demand.

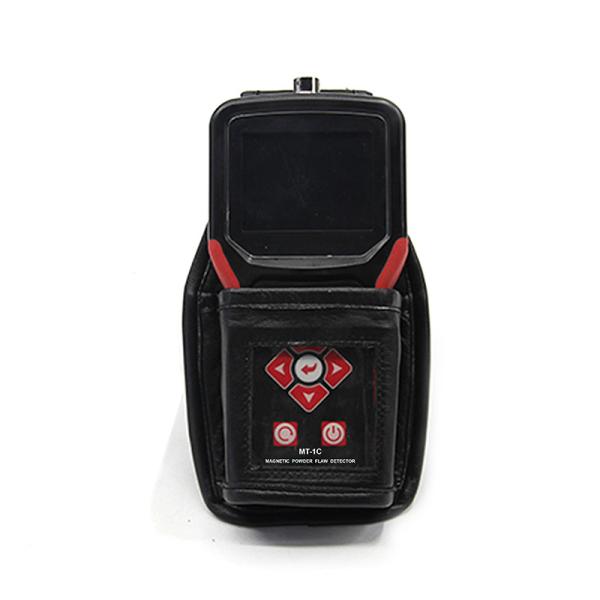

• Small size with equipped bag can improve working efficiency.

Technical Parameters

• Lifting: ≥45N( no less than 5kg).
• Complex sensitivity: clearly show the artificial notch of type A 15/100 standard specimen.
• Lighting device: fluorescence & white light.
• Operating voltage: DC 15V-21V.
• Output waveform: AC.
• Output pulse: 42V.
• Main unit size: 100mm×204mm×36mm.
• Main unit weight: 0.75kg (counted battery pack).
• Screen size: 3.2 inch.
• Electromagnetism yoke size: 174mm×162mm×38mm.
• Electromagnetism yoke range: 75-200mm.
• Electromagnetism yoke weight: 1.5kg.
• Lithium battery pack voltage: 18V.
• Lithium battery pack rated capacity: 8400mAh.
• Lithium battery pack limited charge voltage: 21V.
• Charging power supply: 220V 50HZ
• Charging time: 3-4h.
• Continuous working hours: >4h.

• Operation

  ①　Connect electromagnetism yoke in shutdown mode.

  ②　Press to open.

  ③　Turn on the magnet yoke.

  ④　Start testing.

Maintenance

• MITECH magnetic particle flaw detector is precision detector, please pay attention to the following items,

• Use soft cloth to clean the detector.
• Avoid strong vibration, place in dry area.
• When not using for a long time, you should charge it every three months to avoid damping the components.
• Do not press the key overexert or knock it.
• After turning off the detector for 5s, boot again, do not boot immediately.
