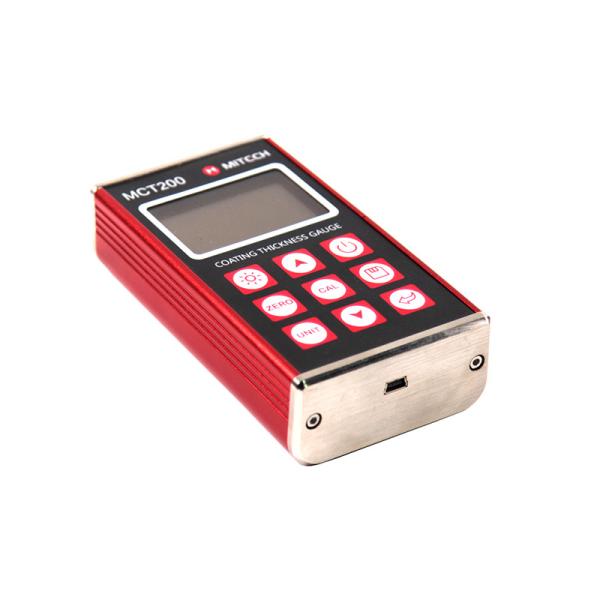

MITECH Coating Thickness Gauge , MCT200 Coating Thickness Tester Fast And Precise

Overview

This practical and compatible pocket meter is designed to measure coating thickness in a non-destructive, fast and accurate way. It is ideal for manufacturers and their customers, for offices and specialized consultants, for painting and electroplating workshops, for the chemical, automotive, naval and aeronautical industries and for light and heavy engineering.

Technical Parameters

Measuring principle: Magnetic induction & Eddy current.
Measuring range: (0～1250)μm, depends on probes, maximum 10mm for the probe F10. Refer to appendix.
Low range resolution: 0.1μm.
Accuracy: ±(3%Thickness+1)μm, depends on probes and conditions.
Display: 4 digits LCD with EL back-light.
Memory for up to 20 files(up to 50 values for each file)of stored values.
Unit system: Metric(μm),Imperial(mil).
Power source: Two “AA” size, 1.5 Volt alkaline batteries, 200 hours typical operating time(EL back-light off).
Communication: USB1.1.
Dimensions: 125mm×67mm×31mm.
Weight: 340g.

Features

Five types of probes(F400, F1, F1/90°, F10, N1) are available for different application, F10 probe measures up to 10mm.

With different external probes, the gauge can be applied to measuring thickness of non-magnetic coating on magnetic metal substrate, as well as non-conductive coating on non-magnetic metal substrate.

Two calibration methods can be applied to the gauge. The system error of the probe can be corrected with the basic probe calibration method.

Two measuring modes: single or continuous, changeable.

Measuring status indicator shows the measuring status.

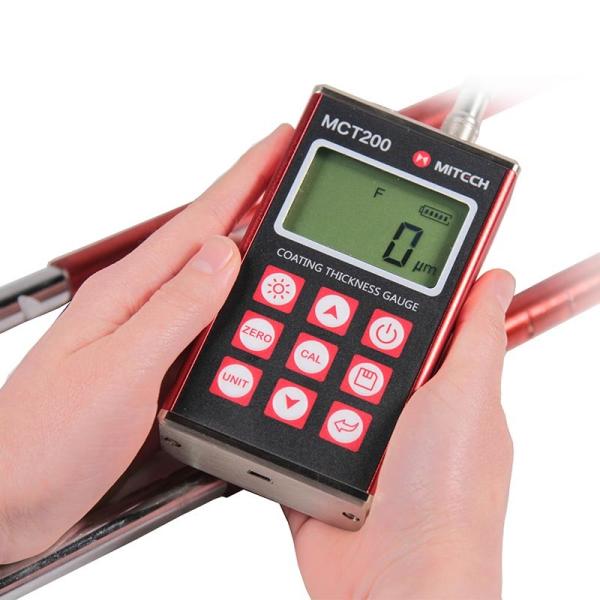

Measured values and user information are shown on a large, easy-to-read LCD. The display back light ensures easy reading of screen data in low light conditions.

Battery information indicates the rest capacity of the battery.

Auto sleep and auto power off function to conserve battery life.

USB1.1 communication port, optional software to process the memory data on the PC.

The gauge equips with data-pro software, can do measurement results transmission, automatic storage management, measurement data analysis, measurement reports print etc.

Compact aluminum case, suitable for use under poor working conditions such as vibration, shock and electromagnetic interference.
