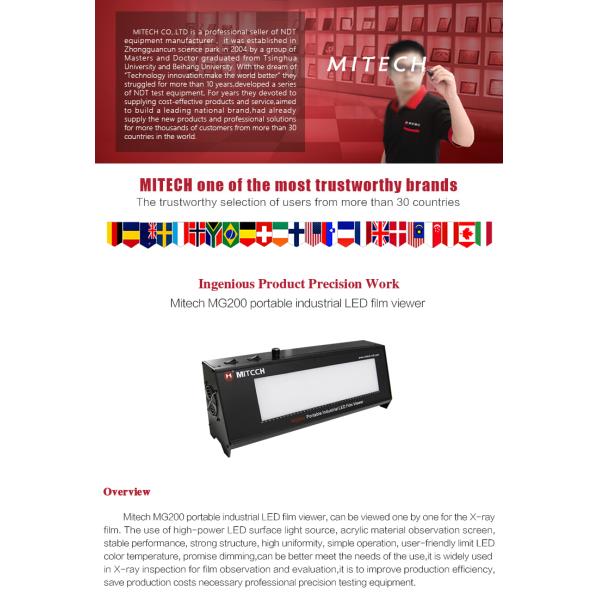

Ultra Thin Radiography LED X Ray Viewer , X Ray Automatic Processor 400mm*100mm Watch Window MG200
Ultra Thin Radiography LED X Ray Viewer , X Ray Automatic Processor 400mm*100mm Watch Window MG200
Specifications
Brand Name :
Mitech
Model Number :
MG200
Certification :
CE,ISO..
Place of Origin :
Beijing,China
MOQ :
5 piece
Payment Terms :
L/C, D/A, D/P, T/T,, MoneyGram
Supply Ability :
30/day
Delivery Time :
3-5 days
Packaging Details :
Metal box
Dimensions :
550*150*200mm
Total weight :
6.8kg
Uniformity coefficient :
g≥0.9
Watch window :
400mm*100mm
Rated power :
200W
Power supply :
AC170～250V，47～63Hz
Description

Operation using

  • Open the power switch, pedal / manual switch placed in the manual position, observe the window light, then the brightness adjustment knob can adjust the window luminous intensity;
  • When using the pedal switch, connect the pedal switch to the film viewer, the pedal/ manual switch is placed in the pedal position, you can use the pedal operation, and can rotate the brightness adjustment knob to adjust the pedal when the brightness of the film ;
  • If you use a smaller film, you can use the attached light shield to block the observation window

Technical parameters

Technical Characteristics Technical Parameters
Maximum brightness ≥100,000Cd/m2
The maximum blackness value can be observed ＞4.5D
Uniformity coefficient g≥0.9
Scattering coefficient ≥0.7
Continuous maximum brightness work 12 hours, the surface temperature rise ≤40℃
Watch window 400mm*100mm
Rated power 200W
Power supply AC170～250V,47～63Hz
Dimensions 550*150*200mm
Total weight 6.8kg

Working principle

The principle of the LED film viewer is to fix the film containing the image information on the observation screen, light sources emit light from within by viewing screen scattering through the film, watch the film sample whether there is a flaw, in accordance with the relevant standards to determine the sample is qualified or not.

Application field

  • Metal processing and manufacturing industry quality control links
  • Non-metallic processing industry quality control links
  • Experimental teaching experiment in colleges and universities
  • Quality inspection department quality inspection link

Configuration

Standard

Configuration

 No. Item Quantity Note
1 Host 1
2 Foot switch 1
3 Shading board 1 200*75mm；200*60mm
4 Attached fiels 1
