Specifications
Brand Name :
MITECH
Model Number :
MT190
Certification :
CE 、 GOST
Place of Origin :
China Beijing
MOQ :
1piece
Payment Terms :
Western Union, T/T, Paypal
Supply Ability :
500 Unit/units per Month
Delivery Time :
after receiving payment
Packaging Details :
Standard export carton
Measuring range :
0.65-600mm（P-E),3-60mm(E-E)
Resolution :
0.1/0.01mm
Communication :
USB
Working time :
100h (EL backlight off)
Main unit weight :
245g
Total weight :
1.5KG
Description

Product Overview

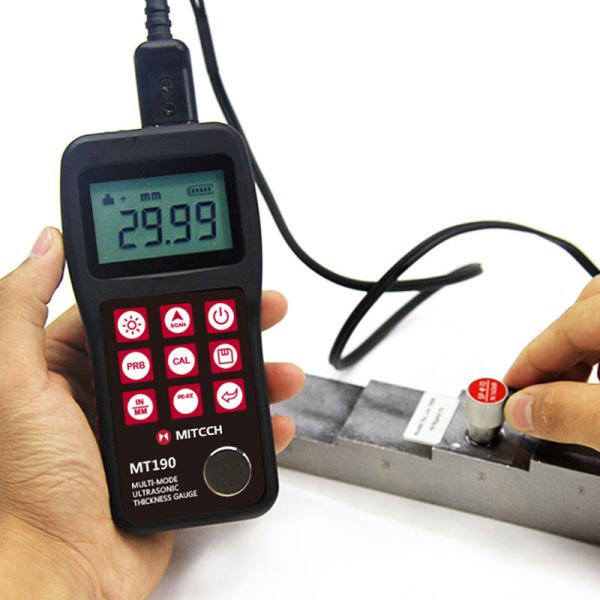

Miteh MT190 multi-mode ultrasonic thickness gauge, based on ultrasonic measuring principle, it can perform thickness measurements on a wide range of materials including metals, plastic, ceramics glass and other ultrasonic well-conductive materials. It is also capable for measuring the sound velocity of the object with known thickness. Compared with the traditional measurement method, the advantage of ultrasonic thickness gauge is that it can finish the measurement only if it contacts with one side of the measured workpiece. Its unique performance of capable for testing thickness through the coating provides efficient solution for testing the workpiece of coated surface or corrosion materials. It can test the workpiece directly without needing to get rid of the surface coating.

High Contrast LCD Coating Thickness Gauge , Auto Shutdown Function Steel Thickness Tester MT190

Function & application

Capable of performing measurements on a wide range of material, including metals, plastic, ceramics, composites, epoxies, glass and other ultrasonic wave well-conductive materials.Transducer models are available for special application, including for coarse grain material and high temperature applications.High Contrast LCD Coating Thickness Gauge , Auto Shutdown Function Steel Thickness Tester MT190

Working Principle

The digital ultrasonic thickness gauge determines the thickness of a part or structure by accurately measuring the time required for a short ultrasonic pulse generated by a transducer to travel through the thickness of the material, reflect from the back or inside surface, and be returned to the transducer. The measured two-way transit time is divided by two to account for the down-and-back travel path, and then multiplied by the velocity of sound in the material. The result is expressed in the well-known relationship: H=v×t/2

Where: H－Thickness of the test piece.

v－Sound Velocity in the material.

t－The measured round-trip transit time.

Technical Parameters

Technical Specifications Technical Parameters
Measuring Range

Support two modes for thickness measurement

Pulse-Echo mode: (0.65～600)mm

Echo-Echo mode: (3～60)mm
Accuracy ±0.05mm(≤10mm)；±(0.5%H+0.01)mm(>10mm)； H refer to the thickness of workpiece
Measurement Frequency 7 times per second for single point measurement, 16 times per second for scan mode measurement.
Display High contrast Segment LCD display (support for EL backlight display)
Resolution 0.1mm/0.01mm selectable
Sound Velocity Range (1000～9999)m/s (Capable for measuring the sound velocity of the object with known thickness)
Probe Calibration Zero-point calibration, two-point calibration
Thickness Measurement Mode Single Point measurement, min/max measurement, differential measurement
Data Storage Capable for saving and managing 20 groups of thickness data (up to 100 values for each group)
Units Metric/Imperial unit selectable

Communication

 USB 1.1 interface for connecting with PC for printing
Power Source With two “AA” size alkaline batteries, it can work above 50 hours continuously with default brightness.
Auto Power Saving Auto shutdown power saving function
Material ABS engineering plastic
Size 150mm×74mm×32mm
Weight 245g

Instrument Maintenance

When the thickness gauge appears some other abnormal phenomena, please do not dismantle or adjust any fixedly assembled parts. Fill in and present the warranty card to us. The warranty service can be carried on. Keep it away from vibration, strong magnetic field, corrosive medium, dumpiness and dust. Storage in ordinary temperature. With Original packing, transport is allowed on the third grade highway.

Applied conditions

High Contrast LCD Coating Thickness Gauge , Auto Shutdown Function Steel Thickness Tester MT190
