Semi Automatic Tension Testing Machine With 150° Pendulum Pre - Elevation JB-300B
Semi Automatic Tension Testing Machine With 150° Pendulum Pre - Elevation JB-300B
Semi Automatic Tension Testing Machine With 150° Pendulum Pre - Elevation JB-300B
Semi Automatic Tension Testing Machine With 150° Pendulum Pre - Elevation JB-300B
Specifications
Brand Name :
MITECH
Model Number :
JB-300B
Place of Origin :
China Beijing
MOQ :
1
Payment Terms :
T/T, Western Union , Paypal
Supply Ability :
500units per month
Delivery Time :
5-8work days
Packaging Details :
Standard export carton
Impact energy :
300J (large pendulum) 150J (small pendulum)
Impact speed :
5.2m/s
Pendulum pre-elevation :
150°
Specimen support span :
40mm
Description

Product Overview

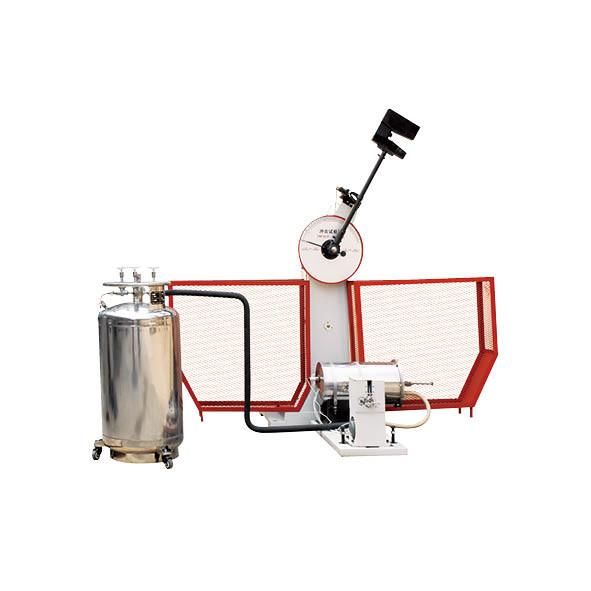

JB-300B semi-automatic impact testing machine is used to measure impact resistance properties of the metal material under dynamic load in order to determine its properties under dynamic load. By using residual energy after impacting the specimen, this machine makes the automatic pendulum movement with simple operation, high operation efficiency as well as safe and reliable operation. It is applicable for various laboratories of impact test and is widely used in metallurgy, machinery, aviation and aerospace, quality supervision etc.Semi Automatic Tension Testing Machine With 150° Pendulum Pre - Elevation JB-300BSemi Automatic Tension Testing Machine With 150° Pendulum Pre - Elevation JB-300B

Main Technical Parameters

Impact energy

300J (large pendulum) 150J (small pendulum)

Impact speed

5.2m/s

Pendulum pre-elevation

150°

Specimen support span

40mm

Support jaw fillet

R1.0~1.5mm

Impact blade fillet

R2.0~2.5mm

Distance from the pendulum center to the impact point

750mm

Standard specimen dimension

10×10×55 mm

Power supply and power

50Hz 380V 180W

Three-phase four-wire 50Hz 380V 180W

Overall dimension

2124×600×1340mm

Angle accuracy

0.1°

Weight

450Kg

Semi Automatic Tension Testing Machine With 150° Pendulum Pre - Elevation JB-300BSemi Automatic Tension Testing Machine With 150° Pendulum Pre - Elevation JB-300B
