Operation

①Turn on the generator, the digital display "HH", the controller and cooling fan of X ray generator

startup, X ray warning light on, then the buzzer sounds. After 15 seconds, the digital display time knob set value, the buzzer stop, standby light on.

②Adjust the knob to select the required exposure time.

③Before the operation we should warm-up the machine, in order to improve the ray tube vacuum

degree, if the vacuum degree is bad, it will burn or breakdown the X-ray tube, leading to failure, and even discarded

Standard Configuration

Working Conditions

Environment temperature: -25℃-40℃

Relative humidity: no bigger than 85%

Safe work pressure: 0.35-0.50mPa

Note, Do not use when the pressure is under 0.35mPa

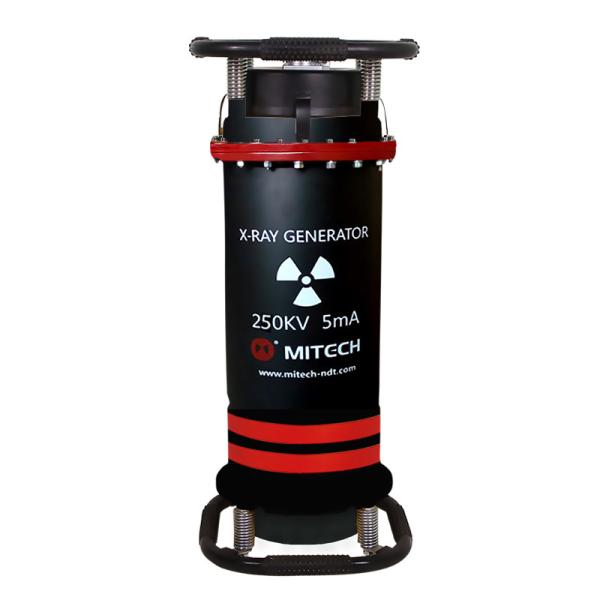

Generator Appearance

1 Gas pressure gauge 2 Cable line socket

3 Caution light 4 X ray generate area

5 Cooler fan

Controller Appearance

1 Fault code and exposure chart 2 Standby light

3 HV light 4 Digital display

5 Time knob 6 KV presetting knob

7 “HV on” key 8 “HV off” key

9 Power switch 10 Connection cable socket

11 Power cable socket 12 Earthing wire

13 Fuse holder(3A)

The main parts in the controller are:KV control panel, mA control panel, microcomputer control panel, protection board, Controllable silicon high voltage module, LC filter, main,assistant silicon control inverter system. The inner controller has cooling fans, vent-windows on the side and back.
