Specifications
Brand Name :
MITECH
Model Number :
MT-1A
Certification :
ISO
Place of Origin :
China
MOQ :
1 set
Payment Terms :
T/T, Western Union, Paypal
Supply Ability :
500 sets per week
Delivery Time :
3-5work days
Packaging Details :
Standard carton
Lighting :
white/fluorescent
Main unit :
0.75 kg（including battery）
Screen dimension :
3.5 inch
White light illumination :
＞1000lx
Power supply :
220V 50HZ
Complex sensitivity :
Notch clear on A1 15/100 standard specimen
Description

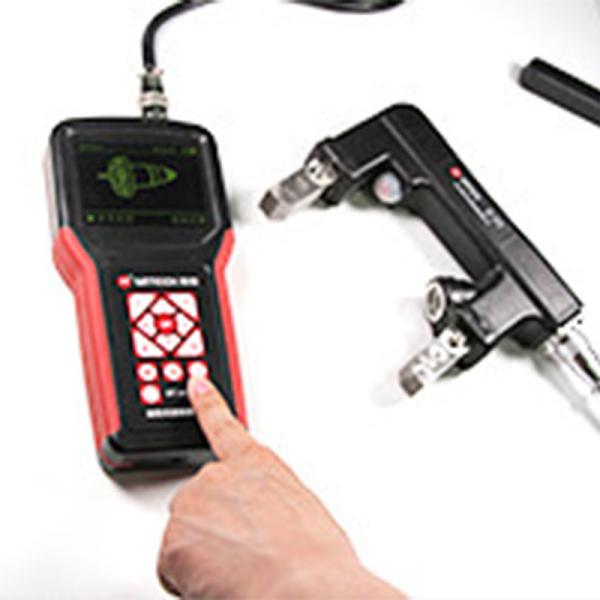

Mitech Magnetic Particle Flaw Detector MT-1A with higher quality and easy to use

Technical Parameters

Lifting: ≥45N(no less than 5kg)

Integrative sensitivity: type A 15/100 standard specimen, artificial notch clearly showed

Light: good

Camera: good

Working voltage: DC15V-21V

Waveform: alternative current

Pulse amplitude: 42V

Dimensions: 100mm*204mm*36mm

Unit weight: 0.75kg(including battery)

Display dimension: 3.5inch

Electromagnetic yoke polar distance: 75-200mm

Electromagnetic yoke weight: 1.5kg

Lithium battery voltage:18V

Lithium battery capacity: 8400mAh

Limited voltage of lithium battery: 21V

Charge power supply: 220V, 50HZ

Charge time: 3-4h

Continuous working time: ＞4h

Working Conditions

Operatiom temperature －10℃～＋40℃
Storage temperature -20℃～＋70℃
Relative Humidity ≤80％

The environment should avoid strong vibration, magnetic interference, corrosive medium and heavy dust.

Easily Use Magnetic Particle Flaw Detector 8400mAh Lithium Battery Capacity MT-1A

Function & Application

It is widely used in the industry of aircraft manufacturing, boiler and pressure vessel, electric, oil field, shipbuilding, turbine and combustion engine parts, mine, machinery, standard parts, oil pump, vehicle parts, bridging, chemical, railway, large mechanical components, steel structure equipment etc. It mainly detects the surface detection of forging, quenching, welding, fatigue, for example, irregular workpiece of chain, crankshaft, bearing, high strength bolt, spring, forging, petrochemical pipe, valve, vane, gear, anchor chain, welding seam etc

Configuration

No. Parts name Model QTY
1 Main unit MT-1A 1
2 Electromagnetic yoke 1
3 Electromagnetic yoke line 1
4 Charger 1
5 Detection management system CD 1
6 USB cable line 1
7 Waist pack 1
8 Attached files 1

Easily Use Magnetic Particle Flaw Detector 8400mAh Lithium Battery Capacity MT-1A

Mitech flaw detector is trustworthy with superior performance, reasonable price, portable and durable, high sensitivity

Easily Use Magnetic Particle Flaw Detector 8400mAh Lithium Battery Capacity MT-1A

Easily Use Magnetic Particle Flaw Detector 8400mAh Lithium Battery Capacity MT-1A
