Optional Color Steel Die Casting Machine Accessories
Optional Color Steel Die Casting Machine Accessories
Specifications
Brand Name :
RD
Model Number :
88T/38T/50T
Certification :
CE
Place of Origin :
China
MOQ :
1 set
Price :
USD 20000-200000 for one set
Payment Terms :
T/T, Western Union, MoneyGram
Supply Ability :
10 sets for 1 month
Delivery Time :
30 working days
Packaging Details :
wooden case or required packing
Condition :
New
Type :
hot chamber die casting machine
After-sales service provided :
Engineers available to service machinery overseas,Video technical support,Online support,Free spare parts,Field installation
Color :
optional Color
Keywords :
die casting machine
Function :
making metal parts
Machine type :
full automatic
Material :
steel
Description

Material Cup For Zinc Alloy Hot Chamber Die Casting Machine

Product Decription:

This product is used for die casting machine spare parts, we can provide you different size as per your drawings, we have many year's experience in this field, and we are professoinal in making this products , please if have any interest, do not hesitate to contact us!

hot chamber die casting machine specification

Item Unit RDH18 RD38T RD50T RD88T RD138T
Die Locking Force KN 180 380 500 880 1380
Die Stroke MM 150 200 235 250 290
Ejection Fore KN / 34 52 52 110
Ejection Stroke MM / 40 60 60 85
Die Thickness(Min~Max) MM 100-300 100-330 100-340 100-350 150-450
Die Dimension MM 385×360 450×480 470×503 535×578 620×670
Tie-bar Inner Spacing(V×H) MM 236×236 290×290 310×310 357×357 415×415
Tie Bar Diameter MM 40 50 56 63 75
Injection Port Position MM / 0,-40 0,-50 0,-60 0,-80
Injection Stroke MM 90 125 130 130 150
Traverse Stroke MM 150 150 190 190 200
Injection Fore KN 27 40 55 90 110
Plunger Tip Diameter MM 35 40 45 50 55 50 60 65
Specific Presure Mpa 28 32 25.4 26.9 22.2 34 38.9 33.1
Shot weigh(Zn) kg(Zn) 464 0.78 0.98 1.26 1.53 1.26 2.1 2.46
Hydraulic Pressure Mpa 7 10.5 10.5 10.5 14
Electric Motor Capacity KW 5.5 7.5 7.5 11 15
Volume of Crucible(Zn) L/kg(Zn) 20/150 50/325 55/360 55/360 55/360
Volume of Oil L 180 200 200 240 300
Machine Weight TON 1.5 3 3.4 3.6 6
Over All Dimensions m(L×W×H) 2.5×1.2×1.7 3.47×1.3×1.7 3.95×1.38×1.9 3.95×1.38×1.9 4.51×1.51×2.3

Item Unit RD160T RD200T RD300T RD400T
Die Locking Force KN 1600 2000 3000 4000
Die Stroke MM 340 390 460 550
Ejection Fore KN 110 110 150 180
Ejection Stroke MM 85 100 95 125
Die Thickness(Min~Max) MM 150-550 200-580 250-660 300-750
Die Dimension MM 670×670 760×760 870×870 1030×1030
Tie-bar Inner Spacing(V×H) MM 465×465 510×510 560×560 620×620
Tie Bar Diameter MM 80 90 110 130
Injection Port Position MM 0,-80 0,-100 0,-125 0,-125
Injection Stroke MM 150 175 200 230
Traverse Stroke MM 200 214 255 340
Injection Fore KN 110 130 158 182
Plunger Tip Diameter MM 60 65 70 75 70 75 70 80
Specific Presure Mpa 38.9 33.1 34.6 30.1 41.1 35.8 48.3 37
Shot weigh(Zn) kg(Zn) 2.1 2.46 3.33 3.83 3.81 4.37 4.4 5.7
Hydraulic Pressure Mpa 14 14 14 14
Electric Motor Capacity KW 15 18.5 18.5 22
Volume of Crucible(Zn) L/kg(Zn) 55/360 110/720 110/720 200/1350
Volume of Oil L 300 400 600 800
Machine Weight TON 6.5 8.5 11 17.5
Over All Dimensions m(L×W×H) 4.8×1.51×2.3 5.6×1.7×2.4 5.6×1.7×2.4 7.4×1.9×2.55

FAQ
Q1. Are you a factory or trade company?
We are a factory located Guangdong, China.
Welcome to visit our factory.

Q2. What kind of production service do you provide?
Mold making, die casting, CNC machining, stamping, plastic injection, assembly, and surface treatment.

Q3. How about the lead time?
Mold: 3-5 weeks
Mass production: 3-4 weeks

Q4. How about your quality?
♦We will make the operation instruction once the sample is approved.
♦We will 100% inspect the products before shipment.


Q5. How long should we take for a quotation?
After receiving detailed information(your 2D/3D drawings or samples), we will quote you within 2 days.
Q6. What is your quotation element?
Drawings or Sample, Material, Finish, and Quantity.

Q7. What is your payment term?
Mold: 50% prepaid, balance after sample approval.
Goods: 50% prepaid, balance T/T before shipment.

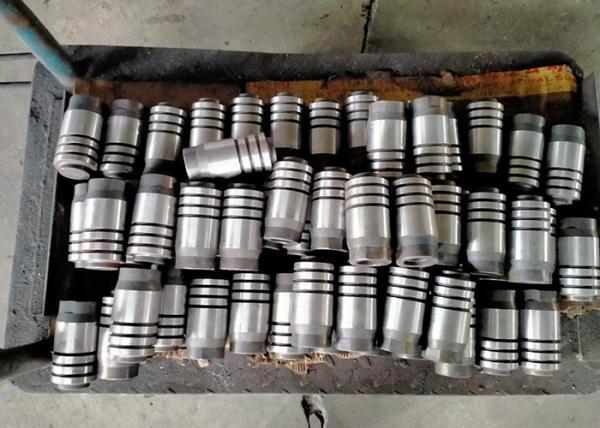

Machine Spare Parts:

Optional Color Steel Die Casting Machine AccessoriesOptional Color Steel Die Casting Machine Accessories

Machine Photo:

Optional Color Steel Die Casting Machine Accessories

Optional Color Steel Die Casting Machine Accessories

Different spareparts:

Optional Color Steel Die Casting Machine Accessories

Factory:

Optional Color Steel Die Casting Machine Accessories

Packing:

Optional Color Steel Die Casting Machine Accessories

Shipping Ways:

Optional Color Steel Die Casting Machine Accessories

Thanks for visiting our information, if you are interested in our products, just contact us, have a nice day!
