Small Ultrasonic Rotary Welding Machine , 220V Ultrasonic Spot Welding Machine
Small Ultrasonic Rotary Welding Machine , 220V Ultrasonic Spot Welding Machine
Specifications
Brand Name :
HY
Model Number :
XYY-2020
Certification :
CE
Place of Origin :
China
MOQ :
1 set
Payment Terms :
T/T, Western Union, MoneyGram
Supply Ability :
10 sets for 1 month
Delivery Time :
10-15 working days
Packaging Details :
wooden case
Voltage :
220V
Usage :
Plastic Welding,Product welding,Ultrasonic Welding Machine,PLASTIC WELDER
After-sales service provided :
Engineers available to service machinery overseas,Video technical support,Online support,Free spare parts
Warranty :
1 Year
Application :
Ultrasonic Welding,plastics
Product name :
Ultrasonic plastic spot welding machine price,Hand held ultrasonic welding machine for PP/PE/PET/ABS/ACRYLIC/PVC
Type :
desktop type
Function :
Welding
Product :
Plastic Welding Machine
Name :
Ultrasonic Plastic Welding Machine
Color :
blue
Description

Small Size High Frequency Ultrasonic Plastic Spot Welding Machine

Product Description:

Ultrasonic Welding Machine is an ultrasonic welder designed for welding various plastics (PVC, PP, PE, ABS, etc.) and fabrics (Polyester, nonwoven fabric, etc.). It is widely used in welding plastic products, including led lampshade, chargers, reflectors, plastic whistles, pillows, quilt and other plastic/ fabric products. With high working efficiency and good welding performance features, the ultrasonic welding machine can save your labor and time.

Equipment features:

1.The scanning range of galvanometer is 100 mm / 150 mm,the out of range parts are welded through the XY axis moving area.
2.Format moving welding, XY format size can be customized.
3.Adopt galvanometer scanning welding system,reduce the movement time of the axis,high efficiency.
4.The worktable adopts gantry structure,product not moving,laser head moving welding,reduce wear of moving shaft.
5.Integrated design of laser worktable,easy transport,workshop relocation,save area covered.
6.Large aluminum plate table, flat and beautiful,there are 100 * 100 mounting holes on the table,easy to lock fixture.



Machine Specfication:

Model XYY-2020 XYY-1526 XYY-1532
Language Chinese/English Chinese/English Chinese/English
Control System Smart Text Screen Smart Text Screen Smart Text Screen
Working Frequency 20KHz 15KHz 15KHz
Frequency Scope ±0.25khz ±0.25khz ±0.25khz
Output Power 2000w 2600w 3200w
Swing Adjustment 1%-100% 1%-100% 1%-100%
Input Power 220v 220v 220v
Welding Head Travel 75mm 75mm 75mm
Welding Time 0.01-9.99see 0.01-9.99see 0.01-9.99see
Air Inlet 0.1-0.7Mpa 0.1-0.7Mpa 0.1-0.7Mpa
Vibrating Head Cooling Air cooling Air cooling Air cooling
Welding Area ∳150 ∳220 ∳250
Machine Size 700*400*1000mm 700*400*1000mm 700*400*1000mm
Electricity Box Size 380*280*120mm 380*280*120mm 380*280*120mm
Machine Weight 82kg 84kg 90kg

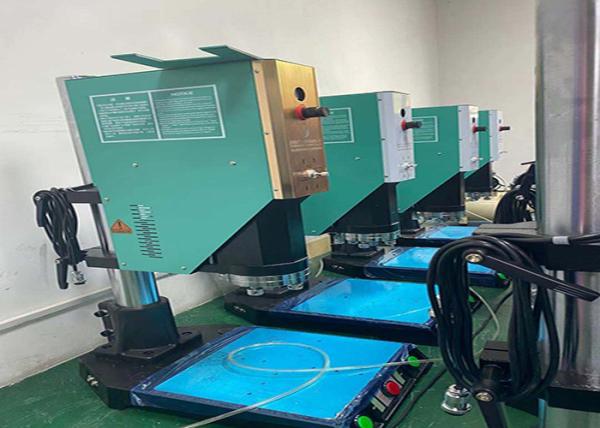

Machine Photo:
Small Ultrasonic Rotary Welding Machine , 220V Ultrasonic Spot Welding Machine

Machine Detailed Parts:
Small Ultrasonic Rotary Welding Machine , 220V Ultrasonic Spot Welding Machine
Small Ultrasonic Rotary Welding Machine , 220V Ultrasonic Spot Welding Machine
Small Ultrasonic Rotary Welding Machine , 220V Ultrasonic Spot Welding Machine
Small Ultrasonic Rotary Welding Machine , 220V Ultrasonic Spot Welding Machine
Ultrasonic spare parts:
Small Ultrasonic Rotary Welding Machine , 220V Ultrasonic Spot Welding Machine
Machine Advantages:
1, Fast speed with high quality welding.
2, It's durable which can use more than 10 years.
3, Welding firmly and well-distributed for weld mark.
Machine Size:
Small Ultrasonic Rotary Welding Machine , 220V Ultrasonic Spot Welding Machine
Products can be welded as follow:
Small Ultrasonic Rotary Welding Machine , 220V Ultrasonic Spot Welding Machine


Thanks for watching our information, if you are interested in our machine,
please do not hesitate to contact us, have a nice day!
