35T Hot Chamber Die Casting Machine , 380V Zinc Die Casting Machine
35T Hot Chamber Die Casting Machine , 380V Zinc Die Casting Machine
35T Hot Chamber Die Casting Machine , 380V Zinc Die Casting Machine
35T Hot Chamber Die Casting Machine , 380V Zinc Die Casting Machine
Specifications
Brand Name :
RD
Model Number :
35T
Certification :
CE
Place of Origin :
China
MOQ :
1 set
Price :
USD 20000-200000 for one set
Payment Terms :
T/T, Western Union, MoneyGram
Supply Ability :
10 sets for 1 month
Delivery Time :
30 working days
Packaging Details :
wooden case or required packing
Condition :
New
Warranty :
1 Year
Type :
hot chamber die casting machine
Computerized :
plc
After-sales service provided :
Engineers available to service machinery overseas,Video technical support,Online support,Free spare parts,Field installation
Color :
Customized Color
Operation :
easy
Function :
making metal parts
Machine type :
full automatic
Voltage :
380V
Weight :
2000kg
Description

High Pressure Zinc Alloy Die Casting Machine With Factory Price

Machine Application:

die casting machine has been widely used in automobile and motorcycle parts, electric tools, it, aerospace,
communication, hardware, bathroom, home appliances, lighting, electric equipment, transportation, toys, craft gifts and other
fields.

Machine Description:

1, This machine can make different kinds of metal accessories for zinc alloy materials.

2, This machine have 25T, 35T, 38T, 50T, 88T, even 1000T.

3, This machine have a long service life with high quality.

hot chamber die casting machine specification

Item Unit RDH18 RD38T RD50T RD88T RD138T
Die Locking Force KN 180 380 500 880 1380
Die Stroke MM 150 200 235 250 290
Ejection Fore KN / 34 52 52 110
Ejection Stroke MM / 40 60 60 85
Die Thickness(Min~Max) MM 100-300 100-330 100-340 100-350 150-450
Die Dimension MM 385×360 450×480 470×503 535×578 620×670
Tie-bar Inner Spacing(V×H) MM 236×236 290×290 310×310 357×357 415×415
Tie Bar Diameter MM 40 50 56 63 75
Injection Port Position MM / 0,-40 0,-50 0,-60 0,-80
Injection Stroke MM 90 125 130 130 150
Traverse Stroke MM 150 150 190 190 200
Injection Fore KN 27 40 55 90 110
Plunger Tip Diameter MM 35 40 45 50 55 50 60 65
Specific Presure Mpa 28 32 25.4 26.9 22.2 34 38.9 33.1
Shot weigh(Zn) kg(Zn) 464 0.78 0.98 1.26 1.53 1.26 2.1 2.46
Hydraulic Pressure Mpa 7 10.5 10.5 10.5 14
Electric Motor Capacity KW 5.5 7.5 7.5 11 15
Volume of Crucible(Zn) L/kg(Zn) 20/150 50/325 55/360 55/360 55/360
Volume of Oil L 180 200 200 240 300
Machine Weight TON 1.5 3 3.4 3.6 6
Over All Dimensions m(L×W×H) 2.5×1.2×1.7 3.47×1.3×1.7 3.95×1.38×1.9 3.95×1.38×1.9 4.51×1.51×2.3

Item Unit RD160T RD200T RD300T RD400T
Die Locking Force KN 1600 2000 3000 4000
Die Stroke MM 340 390 460 550
Ejection Fore KN 110 110 150 180
Ejection Stroke MM 85 100 95 125
Die Thickness(Min~Max) MM 150-550 200-580 250-660 300-750
Die Dimension MM 670×670 760×760 870×870 1030×1030
Tie-bar Inner Spacing(V×H) MM 465×465 510×510 560×560 620×620
Tie Bar Diameter MM 80 90 110 130
Injection Port Position MM 0,-80 0,-100 0,-125 0,-125
Injection Stroke MM 150 175 200 230
Traverse Stroke MM 200 214 255 340
Injection Fore KN 110 130 158 182
Plunger Tip Diameter MM 60 65 70 75 70 75 70 80
Specific Presure Mpa 38.9 33.1 34.6 30.1 41.1 35.8 48.3 37
Shot weigh(Zn) kg(Zn) 2.1 2.46 3.33 3.83 3.81 4.37 4.4 5.7
Hydraulic Pressure Mpa 14 14 14 14
Electric Motor Capacity KW 15 18.5 18.5 22
Volume of Crucible(Zn) L/kg(Zn) 55/360 110/720 110/720 200/1350
Volume of Oil L 300 400 600 800
Machine Weight TON 6.5 8.5 11 17.5
Over All Dimensions m(L×W×H) 4.8×1.51×2.3 5.6×1.7×2.4 5.6×1.7×2.4 7.4×1.9×2.55

Machine Photo:

35T Hot Chamber Die Casting Machine , 380V Zinc Die Casting Machine35T Hot Chamber Die Casting Machine , 380V Zinc Die Casting Machine

Machine Robot:

35T Hot Chamber Die Casting Machine , 380V Zinc Die Casting Machine

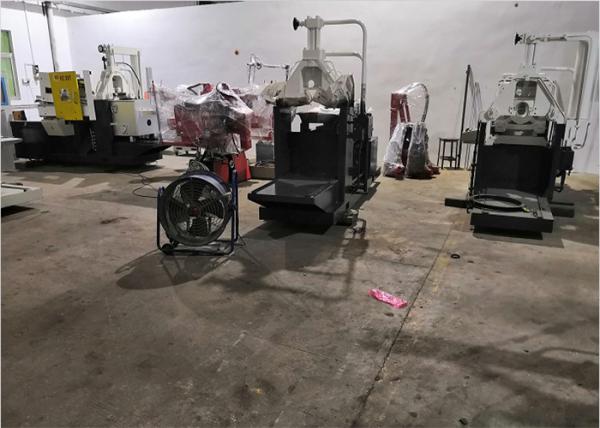

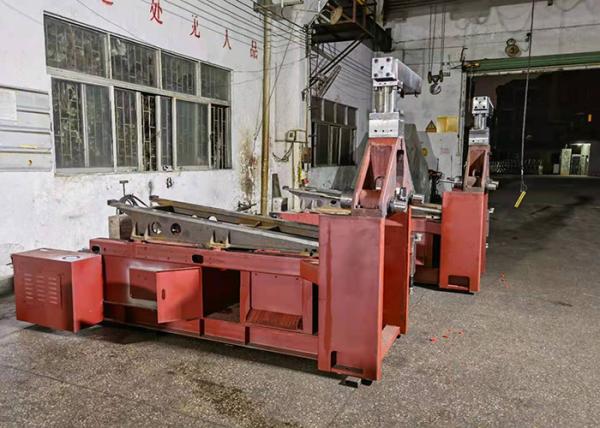

Factory:

35T Hot Chamber Die Casting Machine , 380V Zinc Die Casting Machine35T Hot Chamber Die Casting Machine , 380V Zinc Die Casting Machine

Machine spareparts:

35T Hot Chamber Die Casting Machine , 380V Zinc Die Casting Machine

Packing:

35T Hot Chamber Die Casting Machine , 380V Zinc Die Casting Machine

Thanks for visiting our information, if you have any question, just contact us, have a nice day!
