TMPA600
Portable Phased Array Ultrasonic Flaw Detector

Introduction

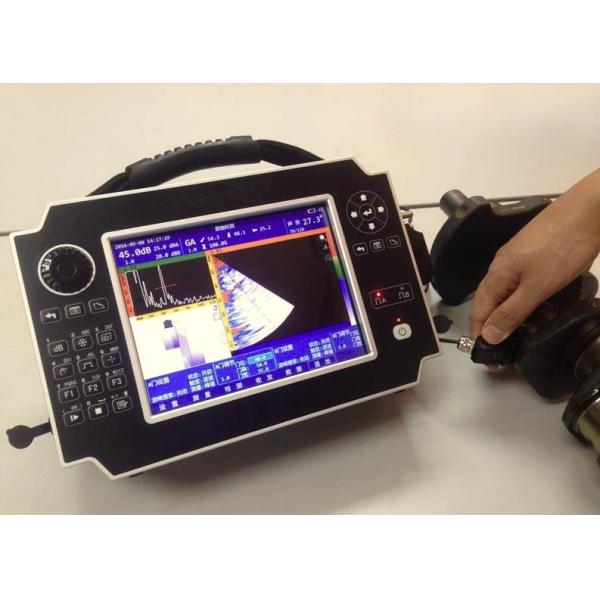

TMPA600 is a portable 64-CH phased array ultrasonic flaw detector
originally developed by TMTECK . It’s water&oil -proof , fan-free
and with touch pad. Whole-process data logging, innovative
phased array probes and inspection methods being the advantages,
this model guarantees superior performance and support, which
makes it among the best of its kind for high C/P ratio.

Working with the stylish wheel probe:
→ by touching or pressing to operate the instrument
→ fan-free heat dissipation; water&dust -proof
→ metallic housing against collision or tumble
→ linkage between scanner and the instrument
→ laser line to direct scanning
→ adjustable probe angle with scale inside the wheel
→ encoder to be installed on the probe
→ a void left for a GPS unit in the middle of the scanner to be applied to tube

Feature
I Dynamic Focusing

Dynamic Focusing off

Dynamic Focusing On

II T-R Mode
Supportive of T-R mode, to make possible the solutions to PE and
austenitic stainless steel, and a variety of applications such as
tandem scanning, K-styled scanning, welded-seam TOFD scanning and thin-plate T-R

III 3D Simulation Model
The 3D simulation scheme can be customized to offer one-for-all
solutions.

IV APP Menu
Menu of the software is shown in the manner of APP.
It can be cut down or enlarged accordingly if asked by the users

V Projected Capacitive Touch Screen
Projected Capacitive Screen, water&oil -proof, impervious to
touching

VI Metallic Housing
To strengthen the instrument, both shielding and heat-dissipating

VII Protective Pedestal
To prevent any damage to either the instrument or the object
Highlights
·16:64 PA Configuration and 2 Conventional Channels (T&R)
· 3D simulation model, customizable with one-for-all solutions(instrument+probe+scenario)
·Image Smoothing
·Dynamic Depth-Focusing for high discernibility at different depths
·Omnisealed, water&dust -proof but capable of fan-free heat dissipation, over any adversities.
·Delay precision up to 2.5ns; evident inhibition on sidelobes as to enhance vertical and horizontal discernibility, as well as to improve
imaging definition.
·Responsive A/L/S/C scan imaging; Encoder used for continuity of 100%-original-data logging .
·Supportive of ACG and TCG curves specified by ASME, to solve the problem of poor energy distribution and measurement
accuracy.
· Focal laws to be automatically generated according to beam angle, focal length, scan mode, specs of probe and wedge, with
auto-optimized angle stepping of S-scan.
·3 options of filtering: 0.5-9.7MHz,4.0-12.5MHz,6.7-20.8MHz;Auto Optimization of pulse width according to probe frequency;
Excellent noise processing
·11-inch IG & WVGA (800x600) TFT display, touch pad, ensuring nice visual effect outdoors or under strong sunlight.
· Ergonomic panel suitable for both hands operating; Hotkey parameters setting; USB port for instant data dump; HDMI port for
external display of unlimited size.
· Host Software supplied for analysis, continuity of data logging,etc.
·AC/DC optional, allowing engagement of 2 pieces of battery collectively, in turn or by hot swap, to make sure duration of 6+ hrs.

Specification

Channel Configuration

Physical Specification

Performance Specification - PA

Performance Specification - Conventional UT

Showcase Album
Crankshaft R Corner

Common Butt-Weld Joint

Small-Dia Tube

Applications
◇Common or special welded seams of steel structure, utility boiler

pressure vessel, pipeline, nuclear power infrastructures, watercraft,
oil tank, ethylene tube, etc.
◇Railway welded seams, locomotive wheel sets and axles.
◇Aluminum alloy FSW butts and bondings of composites used in
aerospace industry.
◇Blades and bolts used in power industry.
◇Cases when there’s not enough space for movement whilst
inspection; Cases when conventional UT is preferred
