128×64 Lcd Ultrasonic Thickness Gauge / Metal Thickness Testing Equipment
128×64 Lcd Ultrasonic Thickness Gauge / Metal Thickness Testing Equipment
128×64 Lcd Ultrasonic Thickness Gauge / Metal Thickness Testing Equipment
128×64 Lcd Ultrasonic Thickness Gauge / Metal Thickness Testing Equipment
Specifications
Brand Name :
TMTeck
Model Number :
TM210B
Certification :
CE
Place of Origin :
China
MOQ :
1pc
Payment Terms :
T/T, Western Union,paypal
Supply Ability :
100PCS/Two weeks
Delivery Time :
3-5 work day
Packaging Details :
Carton 30*15*24cm 2.5kg
Price :
Negotiation
Display :
128×64 LCD with LED backlight.
Measuring range :
0.75mm~300.0mm (0.03inch~11.8 inch)
Sound velocity :
1000m/s~9999m/s (0.039~0.394in/µs
Display resolution :
0.01mm or 0.1mm (lower than 100.0mm) 0.1mm (more than 99.99mm)
name :
Ultrasonic Thickness Gauge
type :
Metal Thickness Testing Equipment
Description

Ultrasonic thickness gauge TM210B

Features

1. Capable of performing measurements on a wide range of material, including metals, plastic, ceramics, composites, epoxies, glass and other ultrasonic wave well-conductive materials.

2. Transducer models are available for special application, including for coarse grain material and high temperature applications.

3. Probe-Zero function, Sound-Veloctiy-Calibration function.

4. Two-Point Calibration function.

5. Coupling status Indicator showing the coupling status.

6. Battery information indicates the rest capacity of the battery.

7. Auto sleep and auto power off function to conserve battery life.

8. Optional software to process the memory data on the PC.

9. Optional thermal mini-printer to print the measured data via USB port.

10, Adjust gain function ,can easy to test the cast iron material,

Specifications

Display 128×64 LCD with LED backlight.
Measuring range 0.75mm~300.0mm (0.03inch~11.8 inch)
Sound velocity 1000m/s~9999m/s (0.039~0.394in/µs
Display resolution

0.01mm or 0.1mm (lower than 100.0mm)

0.1mm (more than 99.99mm)
Accuracy

±(0.5%Thickness +0.02)mm, depends on Materials and conditions
Units

Metric/Imperial unit seletable.

Lower limit for steel pipes:

5MHz probe: F20mm´3.0mm(F0.8´0.12 inch)

10MHz probe: F20mm´3.0mm(F0.6´0.08 inch)
Power Source 2pcs 1.5V AA size, batteries.100 hours typical operating time(LED backlight off).
Communication USB serial port
Outline Dimensions 150mm×74mm×32mm
Weight 238 g

Four measurements readings per second for single point measurement,

Memory for up to 5 files(up to 100 values for each file) of stored values

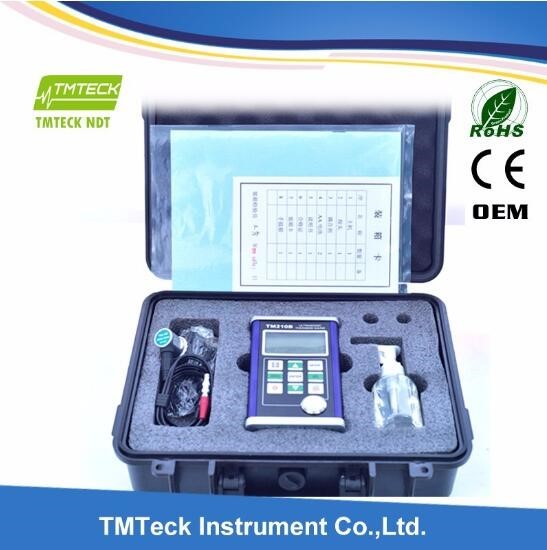

Configuration

No Item Quantity Note
Standard Configuration 1 Main body 1
2 Transducer 1 Model: TM-08
3 Couplant 1
4 Instrument Case 1
5 Operating Manual 1
6 Alkaline battery 2 AA size
12 DataPro Software 1
13 Communication Cable 1

Optional

Configuration

 7 Transducer: N02 Appendix A
8 Transducer: N07
9 Transducer: HT5
10 Mini thermal printer 1
11 Print cable 1

Probe optional for ultrasonic thickness gauge

Model Freq. MHz Diam. Min. Measuring range Lower limit Description
TM-12 2 14 3.0mm-300.0mm (in steel) 20 For thick, highly attenuating, or highly scattering materials
TM-08 5 10 1.2mm-230.0mm (in steel) ￠20mm×3.0mm Normal measurement
TM-08/90 5 10 1.2mm-230.0mm (in steel) ￠20mm×3.0mm Normal measurement
TM-06 7 6 0.75mm-80.0mm (in steel) ￠15mm×2.0mm For thin pipe or small curvature pipe wall thickness measurement
HT-5 5 2 3mm-200mm (in steel) 30 For high temperature measurement (up to 300℃)
HT5-2 5 2 3mm-200mm (in steel) 30 For high temperature measurement (up to 550℃)
