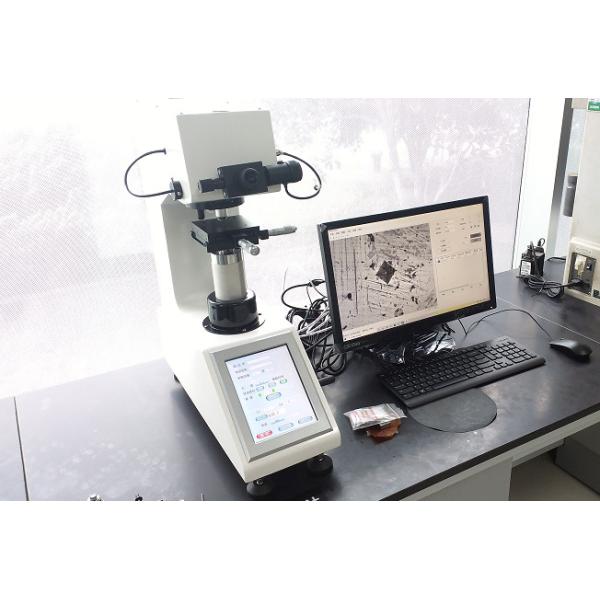

Hardness Scale Hv Micro Vickers Hardness Tester With Touch Screen Menu Structure Interface
Hardness Scale Hv Micro Vickers Hardness Tester With Touch Screen Menu Structure Interface
Specifications
Brand Name :
Tmteck
Model Number :
THV-1000DTe
Certification :
CE
Place of Origin :
China
MOQ :
1pc
Payment Terms :
T/T, Western Union,Paypal
Supply Ability :
100pcs/month
Delivery Time :
5-10 days
Packaging Details :
1pc/ wooden case
Price :
Negotiation
Hardness measurement range :
8~2900HV
Test force loading mode :
Automatic （loading、dwell、unloading）
Magnification of microscope :
400X(testing)，100X（observation）
Dwell time :
0-99s
Max. Height of specimen :
135mm
Description

THV-1000DTe Vickers hardness tester with touch screen, menu structure interface,can choose hardness scale HV

Main features:

1, THV-1000DTe with touch screen, menu structure interface,can choose hardness scale HV or HK on the interface,auto-calculate hardness value,auto-display; conversion between different hardness value,stepless adjustment of light source,can built-in camera ,image will be more clear

2, calibrate according to standard block or length scale, the result will be more accurate

3, with digital encoder eyepiece structure,hardness value and D1,D2 value will be showed on the screen directly

Technical specification:

Model THV-1000DTe
Test force 10gf (0.098N),25gf (0.245N),50gf (0.49N),100gf (0.98N), 200gf (1.96N),300gf (2.94N),500gf(4.9N),1Kgf (9.8N)
Carried standard GB/T4340,ASTM E92
Test resolution 0.01µm
Conversion scale Rockwell,Brinell
Hardness measuring range 8~2900HV
Test force loading method Automatic(loading,dwell,unloading)

Test microscope

magnification

 100X(Observation),400X(testing)
Dwell time 0-99s
Maximum specimen height 135mm
Distance from the center to the outer wall of the indenter 160mm
X-Y stage Dimension:100*100mm Max.movement:25*25mm
Dimension 630*290*700mm
Weight About 50Kg
Power supply AC220V+5%,50-60Hz

Standard Accessories:

Item Quantity Item Quantity
Weight axle
Weight
Eyepiece (DHV-10X)
Micro test block(high,medium) Each 1
XY stage
Horizontal adjustment foot

level
Fuse (2A)
Power cord
Dust cover

Certificate,warranty card

Manual


Optional Accessories:

Filament clamping testing table
Flat clamping testing table
Thin Specimen Testing Table
Test software
