Auto Turret Macro Vickers Hardness Tester / Micro Hardness Testing Machine
Auto Turret Macro Vickers Hardness Tester / Micro Hardness Testing Machine
Specifications
Brand Name :
Tmteck
Model Number :
TMHV-30MDT
Certification :
CE
Place of Origin :
China
MOQ :
1pc
Payment Terms :
T/T, Western Union,Paypal
Delivery Time :
7-15 days
Packaging Details :
1pc/ wooden case
Price :
Negotiation
Test force :
1.0Kgf(9.8N)、3.0Kgf(29.4N)、5.0Kgf(49.0N)、10Kgf(98.0N)、20Kgf(196N)、30Kgf(294N)
Standard Conformed to :
GB/T4340，ASTM E92
Min measuring unit :
0.01un
Conversion Scale :
HRA、HRB、HRC、HRD、HRF、HV、HK、HBW、HR15N、HR30N、HR45N、HR15T、HR30T、HR45T
Hardness measuring range :
8~2900HV
method of testing force applied :
Automatic (loading, Dwelling , unloading)
Description

Main Features:

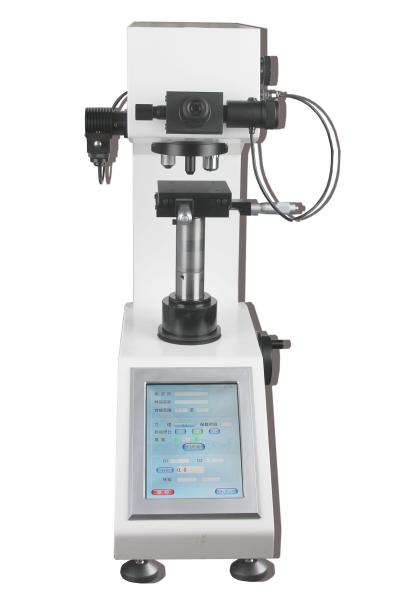

Model TMHV-30MDT Automatic Turret Vickers hardness tester with large 8’ LCD screen display, use the menu interface type structure, can be in operation panel choose hardness HV or HK (option), test of hardness value, automatic input, automatic display. For all kinds of hardness value mutual conversion and the testing result is automatic storage, processing, printing with RS-232 interface, and computer online. The brightness of light source is adjustable , and instrument can have a build-in camera, image will be more clear. Hardness value error can be modified through software input; hardness value more accurate meets the requirement.

Technical Specifications:

Model TMHV-30MDT
Test force 1.0Kgf(9.8N),3.0Kgf(29.4N),5.0Kgf(49.0N),10Kgf(98.0N),20Kgf(196N),30Kgf(294N)
Standard Conformed to GB/T4340,ASTM E92
Min measuring unit 0.01un
Conversion Scale HRA,HRB,HRC,HRD,HRF,HV,HK,HBW,HR15N,HR30N,HR45N,HR15T,HR30T,HR45T
Hardness measuring range 8~2900HV

method of testing

force applied

 Automatic (loading, Dwelling , unloading)

Test microscope

magnification

 100X,200X(Both of them can be used for testing)
Test force dwell time 0~60s
Data output 8’LCD screen display,60 kinds of test results storage, Inside Printer, RS-232
Maximum specimen height 160mm
Distance from the center to the outer wall of the indenter 135mm
Dimensions 600*190*620mm
Net Weight About 50Kg
Power supply AC220V+5%,50-60Hz

Auto Turret Macro Vickers Hardness Tester / Micro Hardness Testing Machine

Auto Turret Macro Vickers Hardness Tester / Micro Hardness Testing Machine

Standard Accessories:

Item Quantity Item Quantity
10X eyepiece test 1 Middle, Large, V shape testing table Each 1
Axle weight
Adjusting screw 4
Weight 4 Spare fuse(2A) 2
Vickers hardness block 2 Dust cover 1
Power line 1 Product Manual 1

Choose Accessories:

Item Item
Test software Cross test sets
