Digital Vickers Hardness Tester Aluminium Menu Interface Type Structure
Digital Vickers Hardness Tester Aluminium Menu Interface Type Structure
Specifications
Brand Name :
Tmteck
Model Number :
TMHV-30DT
Certification :
CE
Place of Origin :
China
MOQ :
1pc
Payment Terms :
T/T, Western Union,Paypal
Delivery Time :
7-15 days
Packaging Details :
1pc/ wooden case
Price :
Negotiation
Test force :
0.3Kgf(2.94N)、0.5Kgf(4.9N)、1.0Kgf(9.8N)、3.0Kgf(29.4N)、5.0Kgf(49.0N)、10Kgf(98.0N)
Standard Conformed to :
GB/T4340，ASTM E92
Min measuring unit :
0.01um
Conversion Scale :
Rockwell、Brinell
Hardness measuring range :
8~2900HV
method of testing force applied :
Automatic (loading, Dwelling , unloading)
Description

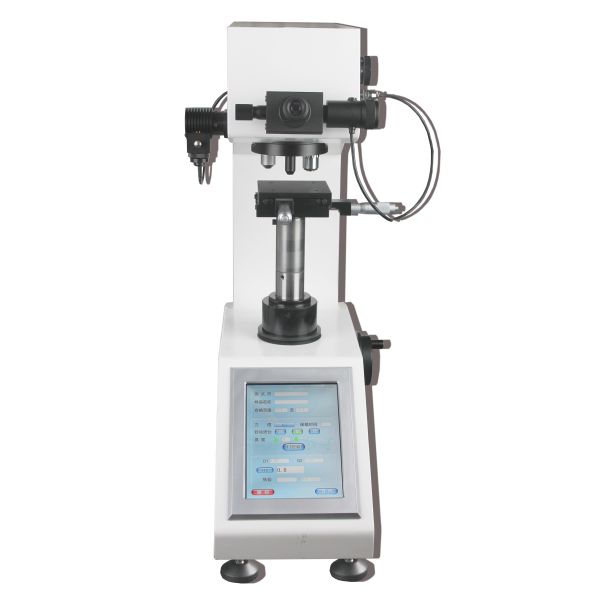

TMHV-30DT Digital Vickers hardness tester

Main Features:

Model TMHV-30DT Digital Vickers hardness tester with 8’ touch screen, use the menu interface type structure, can be in operation panel choose hardness HV or rod HK, test of hardness value, automatic input, automatic display. For all kinds of hardness value mutual conversion, and the testing result is automatic storage, processing, printing, with RS-232 interface, and computer online. This machine is digital, high degree of automation. Hardness value error can be modified through software input, hardness value more accurate meets the requirement.

Technical Specifications:

Model TMHV-30DT
Test force 1.0Kgf(9.8N),3.0Kgf(29.4N),5.0Kgf(49.0N),10Kgf(98.0N),20Kgf(196N),30Kgf(294N)
Carried standard GB/T4340,ASTM E92
Min measuring unit 0.01um
Conversion Scale Rockwell, Brinell
Hardness measuring range 8~2900HV

method of testing

force applied

 Automatic (loading, Dwelling , unloading)

Test microscope

magnification

 100X,200X
Test force dwell time 0~99s
Data output 8’LCD screen display , built-in printer, RS-232
Maximum height of specimen 160mm
Distance from the center to the outer wall of the indenter 135mm
Dimensions 600*190*620mm
Weight About 50Kg
Power supplier AC220V+5%,50-60Hz

Operation interface:

Digital Vickers Hardness Tester Aluminium Menu Interface Type Structure

Main interface Data interface

Digital Vickers Hardness Tester Aluminium Menu Interface Type Structure

Calibration

Digital Vickers Hardness Tester Aluminium Menu Interface Type Structure

Standard Accessorie:

Item Quantity Item Quantity
DHV-10X eyepiece 1 Large,medium,V shaped test table Each 1
Weight (1,2,3,4) Total 4 Regulating screw 4
Level 1 Fuse (2A) 2
Vickers test block 2 Dust bag 1
Power cable 1 Manual 1

Choose Accessories:

Item Item
Test software XY test stage
