Specifications
Brand Name :
TMTECK
Model Number :
TFD800C
Place of Origin :
China
MOQ :
1
Price :
Negotiation
Payment Terms :
T/T
Supply Ability :
30PCS/Two weeks
Delivery Time :
5-8 work days
Packaging Details :
carton
0 ～ 10000 :
0-10000 mm ,at steel velocity
Vertical Linearity Error :
≤3%
Horizontal Linearity Error :
≤0.1%
Sensitivity Leavings :
>62dB
Pulse Displacement :
≥34dB
Frequency Range(MHz) :
0.5 ～ 20
Warranty :
2 years
Description

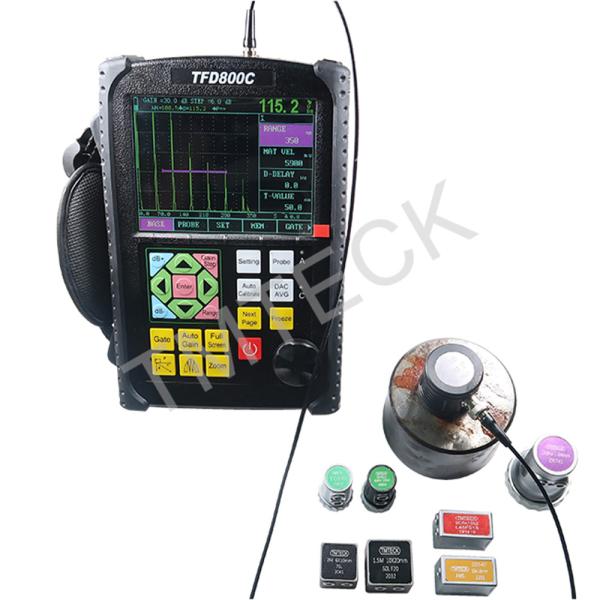

TFD800C Ultrasonic Flaw Detector

1000 A Graph Connect Pc Ultrasonic Flaw Detector Machine Tfd800c

USB memory knob digital ultrasonic flaw detector TFD800C mini total 1kg with battery
Simple operation with fast rotary knob adjustments
use in direct sunlight and operation at extreme temperatures…

Product Info
Automated calibration Automated gain

•Automated make video of test process and play

•AWS D1.1,DAC (6dBDAC), AVG, TCG & B scan,28 DGS curves

Pulse can be adjusted by customer

High-speed capture and very low noise

•Solid metal housing (IP65), rubber plastic dust cover included

•High contrast viewing of the waveform from bright

•Powerful pc software and reports can be export to excel

Small size, light weigh model, total 1kg with battery

Knob design, fast operation

USB memory stick for no limit data transmission

Features :
• Automated calibration of transducer, angle, Zero point and Velocity

• Automated gain,Peak Hold and Peak Memory

• Automated display precise flaw location(Depth d,level p,distance s,amplitude,sz dB,ф)；

• Automated switch three staff gauge ((Depth d,level p,distance s)

• 100 independence setup, any criterion can be input freely, we can work in the scene without test block

• Big memory of 1000 A graph

• RS232/USB 2.0 port,communication with pc is easy

• The embeded software can be online updated

• Li battery, continue working time up to 10 hours

Other assistant function

• Display freeze

• Automated echo degree

• Angles and K-value

• Lock and unlock function of system parameters

• Dormancy and screen savers

• Electronic clock calendar

• Two gates setting and alarm indication

• High-speed capture and very low noise

• Automated make video of test process and play, USB memory disk,no limit for video time.


Main Technical Index:

Title Parameter Title Parameter
Measuring Range(mm) 0 ～ 10000 Measurement Mode Single,Dual,Thru
Vertical Linearity Error ≤3% Reject 0~80%
Horizontal Linearity Error ≤0.1% Pulse Displacement(μs) -20 ～ +3400
Sensitivity Leavings ≥62dB Zero(μs) 0.0 ～ 99.99
Pulse Displacement ≥34dB Port Type BNC
Resolving Power ≥36 Operating Temperature (℃) -20～50
Frequency Range(MHz) 0.5 ～ 20 H×W×D(mm) 210×156×40
Gain(dB) 0 ～ 120 Weight(kg) 1.0 (with battery)
Material Velocity(m/s) 1000 ～ 15000

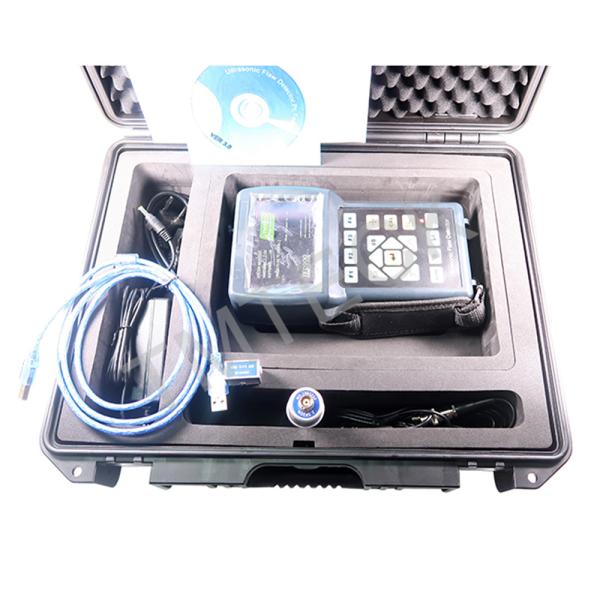

TFD800C Standard Configuration

No. Item Quantity
1 Main Body 1
2 Straight Beam Probe(single type 2.5MHZ 20MM) 1
3 Angle Probe(8x9mm 4mhz 60degree) 1
4 Machine-probe Cable 2
5 Battery Module 1
6 Power Adapter (Charger) 1
7 Manual 1
8 Instrument Case 1
9 Datapro Software 1
10 USB communication Cable 1
