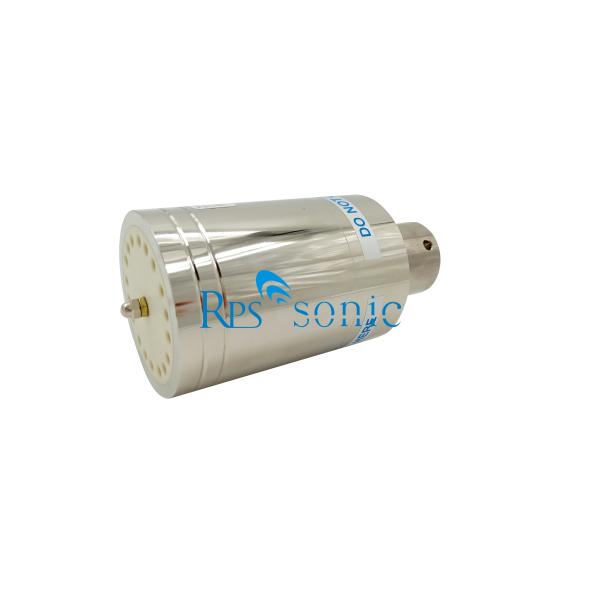

Branson 922JA Converter For Use with 920 D/M (2000 Watt) Power Supplies

What is ultrasonic transducer

Ultrasonic transducers are piezoelectric ceramics that resonate at ultrasonic frequencies and convert electrical signals into mechanical vibrations by the piezoelectric effect of the material. When the transducer is used as a transmitter, the electrical oscillating signal sent from the excitation source will cause a change in the electric or magnetic field in the electrical energy storage element of the transducer, which changes the mechanical vibration system of the transducer through some effect. A driving force is generated to cause it to vibrate, thereby propelling the medium in contact with the mechanical vibration system of the transducer to vibrate and radiate sound waves into the medium.

Introduction

Branson CJ20 used with all Branson® 20 kHz 2000 & 2000X series welder for all 20kHz 2000 and 2000X actuators and IW systems.All of the components used in this Branson CJ-20 replacement converters are all new, not recovered from scrapped units. These converters are made in a highly controlled and repeatable manner to duplicate the performance of the OEM models. The parts are made from certified materials in tightly controlled manufacturing processes, assembled and tested in a climate-controlled environment using carefully calibrated equipment, then properly aged and re-tested to ensure performance that duplicates the OEM part. Also we have second Branson machine, all replaced transducer will work on the original Branson machine before shipment, so that there will be no tuning problem.

Parameter

Branson 922JA Converter For Use with 920 D/M (2000 Watt) Power Supplies

For use with 920 D/M (2000 watt) power supplies and the 920IW or IW+ model presses

and the 920IW or IW+ model presses
