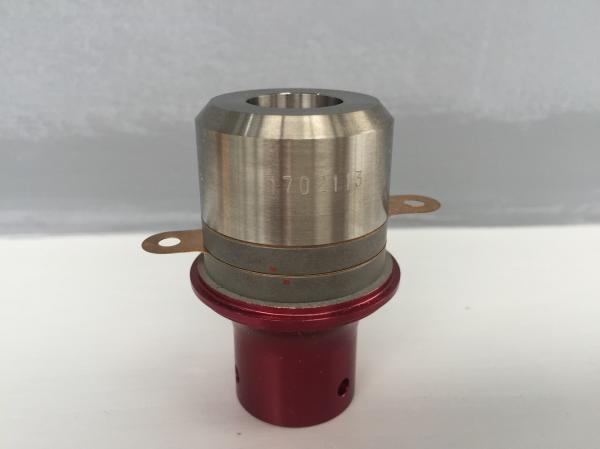

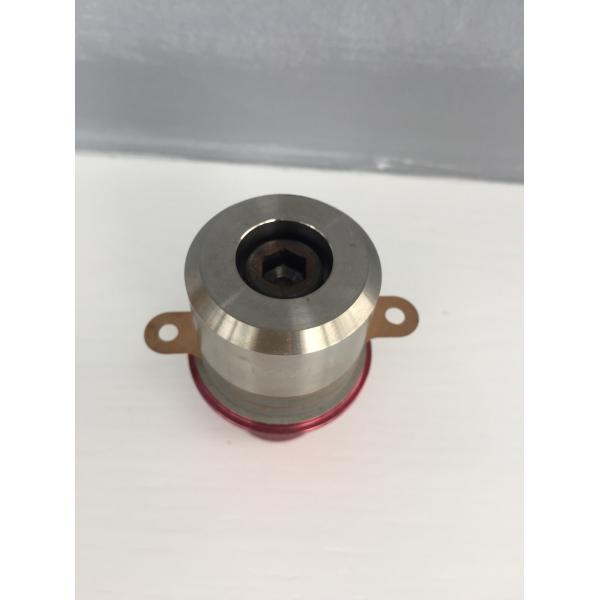

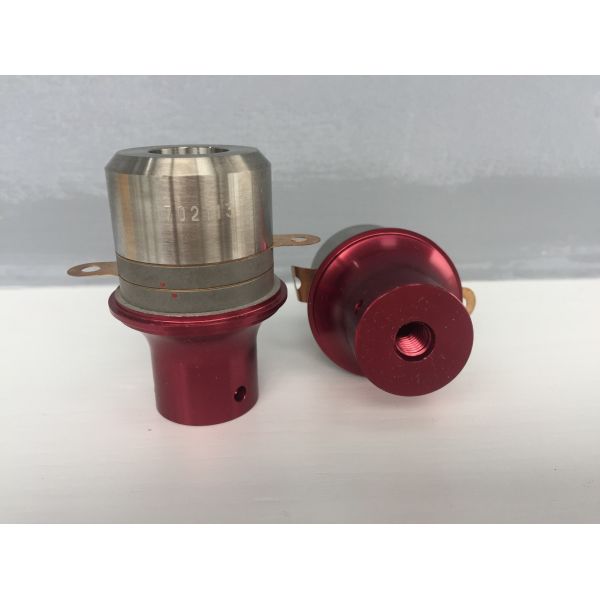

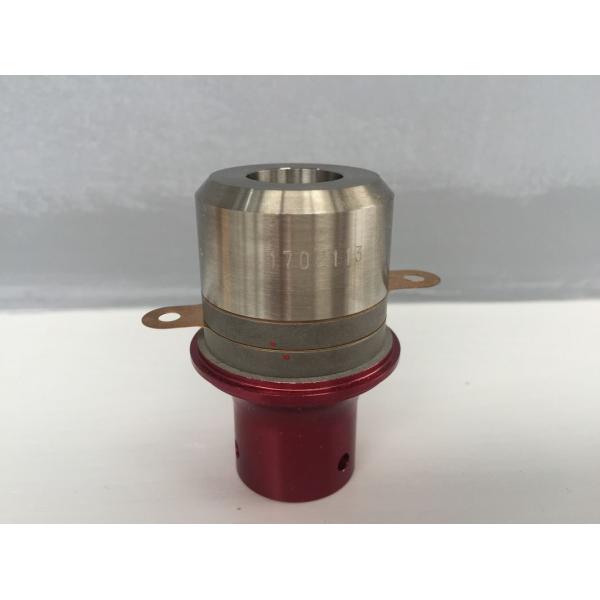

40 Khz Ultrasonic Converter Dukane Transducer Substitue 500W-1000W Ceramic Diameter 35MM
40 Khz Ultrasonic Converter Dukane Transducer Substitue 500W-1000W Ceramic Diameter 35MM
40 Khz Ultrasonic Converter Dukane Transducer Substitue 500W-1000W Ceramic Diameter 35MM
40 Khz Ultrasonic Converter Dukane Transducer Substitue 500W-1000W Ceramic Diameter 35MM
40 Khz Ultrasonic Converter Dukane Transducer Substitue 500W-1000W Ceramic Diameter 35MM
40 Khz Ultrasonic Converter Dukane Transducer Substitue 500W-1000W Ceramic Diameter 35MM
40 Khz Ultrasonic Converter Dukane Transducer Substitue 500W-1000W Ceramic Diameter 35MM
40 Khz Ultrasonic Converter Dukane Transducer Substitue 500W-1000W Ceramic Diameter 35MM
Specifications
Brand Name :
Altrasoinc
Model Number :
HSD40
Certification :
CE
Place of Origin :
China
MOQ :
2 pcs
Price :
negotiation
Payment Terms :
T/T, Western Union
Supply Ability :
3000PCS per month
Delivery Time :
7 working days after received the payment
Packaging Details :
Packed in carton
Product name :
Dukane Converter Substitue
Frequency :
40Khz
Power :
500W-1000W
Connect Screw :
M8*1.25
Ceramic Diameter :
35mm
Qty Of Ceramic :
2pcs
Capacitance :
4-5nf
Application :
Welding
Finish :
Depending On Customer's Requirements
Description

40 Khz Ultrasonic Converter Dukane Transducer Substitue 500W-1000W Ceramic Diameter 35MM

Minimum Order Quantity: 2pcs
Price: negotiation
Payment Terms: T/T
Supply Ability: 3000pcs per month
Delivery Time: 7working days after received your payment
Packaging Details: Packed in carton, and PE form inside

Specifications:

MODEL FREQUENCY(KHz) Ca(pf) Power(W) Machine
402 19.6-20.0 7800-8500 450-900 BRANSON8400
502 19.6-20.0 11500-12500 2000 BRANSON8800/5170
CJ20 19.4-19.7 19000-21000 1100-4000 BRANSON2000 series
CB35A15A 36.5-37.5 3300-4000 800 Rinco-35A15A
CV231 38.3-39.0 3500-4500 900 40K Metal welding
CV3510 36.2-37.0 3200-4000 800 Rinco-CV3510
110-3122 19.6~20.0 12500-14000 2600 Dukane heavy duty

Description:

1. High Efficiency: of high mechanical factor. High transfer efficiency is obtained when working in resonance frequency.
2. Big amplitude: designed and chosen by computer, high oscillation speed and big amplitude in front operculum.
3. Big Power: under the function of the prestressed force screw rod, the piezoelectric ceramics can work freely in the highest level of power.
4. In good heat resistance: of small resonance impedance, less heat produced, can be used in a wide range of temperature with long life and high reliability.

Applications:

Our transducer can applied in the following ultrasonic machines:

Ultrasonic welding machine

All material with thermoplasticity can use Ultrasonic welding machine ,

it can welding the material more easy and stable.Such like plastic, fabric,ABS, nonwovens.
Ultrasonic cutting machine

Ultrasonic food cutting is popular because the perfect edge.

Ultrasonic cutting in packing area also welcomed, it can cutting and sealing at the same time.
Ultrasonic sewing machine

Ultrasonic sewing can sewing the material without any cotton, and keep longer time.

Competitive Advantage:

Service: Timely feedback; Free design; 1 year Warranty.

Quality: Full testing before shipping; we reputation from customer.

40 Khz Ultrasonic Converter Dukane Transducer Substitue 500W-1000W Ceramic Diameter 35MM

40 Khz Ultrasonic Converter Dukane Transducer Substitue 500W-1000W Ceramic Diameter 35MM40 Khz Ultrasonic Converter Dukane Transducer Substitue 500W-1000W Ceramic Diameter 35MM40 Khz Ultrasonic Converter Dukane Transducer Substitue 500W-1000W Ceramic Diameter 35MM
