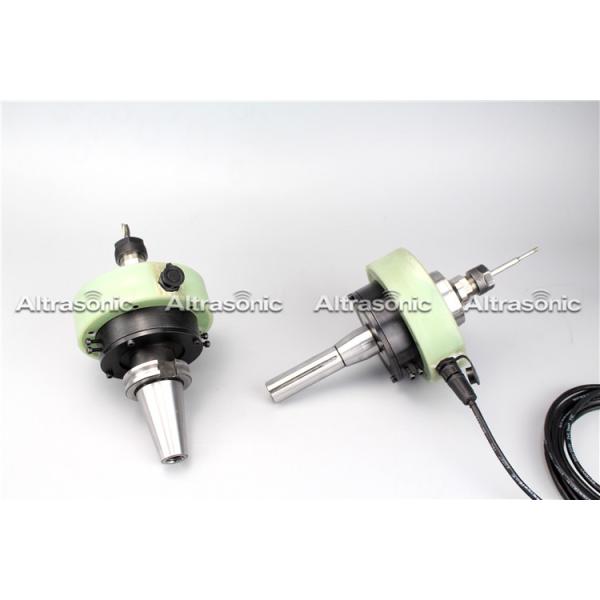

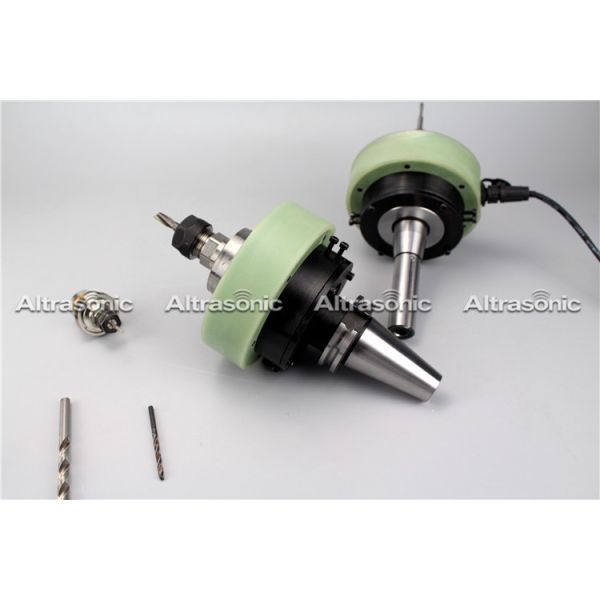

Ultrasonic Multi-Axis Milling For Quartz Glass And Aerospace Machining

Technical Parameters:

Resonance point amplitude: 10um or more;

Max Speed: 30000 RPM

Matching tool: carbide end mill head Φ2-Φ13; disk cutter Φ50;drilling hear Φ1~6

Power: 500W

Ultrasonic drilling

Ultrasonic assisted drilling is a recently-developed technique, in which high-frequency (> 20 kHz) vibration is superimposed onto the movement of a standard drill bit in the axial direction, providing advantages including reduced drilling forces (reduction often in excess of 80%) and improved quality of drilled holes when compared to conventional drilling. Ultrasonic assisted drilling also achieves a reduction in entry and exit delamination size, but not in the expected proportion considering the observed reduction of drilling forces. A different mechanical process to that in conventional drilling may be driving the delamination in Ultrasonic assisted drilling, for example dynamic or thermal effects in addition to thrust and torque loads.

Competitive Advantages:

• Ultrasonic Drilling Machines have been developed in various models equipment.
• Frequency, power can be real-time monitoring, power 30-99% adjustable, with automatic alarm protection, easy to operate;
• Less than 4% weight loss in drilling on an average.

Applications

• Various kinds of materials especially fragile rigid material.
• Processing plane, groove, all kinds of form surface (such as spline, gear and thread) and special surface of mould.
• Application area: machining industry, machine tool equipment manufacturing.
• Application occasion: manufacturing enterprise, universities and colleges, scientific research institution, mechanical equipment transformation industry.

Ultrasonic Multi-Axis Milling For Quartz Glass And Aerospace Machining

Workshop:

CE Certification:

Packing&Shipping:

Payment:

FAQS

Q:What is rotary ultrasonic assisted machining ?

A:Ultrasonic assisted machining means ultrasonic vibration apply to traditional machine tool for drilling and milling especially ofr hard and brittle materials with perfect performance.

Q:What is ER collet?

A:The ER collet is a subtype of chuck that forms a collar around an object to be held and exerts a strong clamping force on the object when it is tightened, usually by means of a tapered outer collar. It may be used to hold a workpiece or a tool

Q:What is BT40 and HSKA63?

A:These are two different kinds of tool holder which used for connect to your CNC machine according to different size and type.
