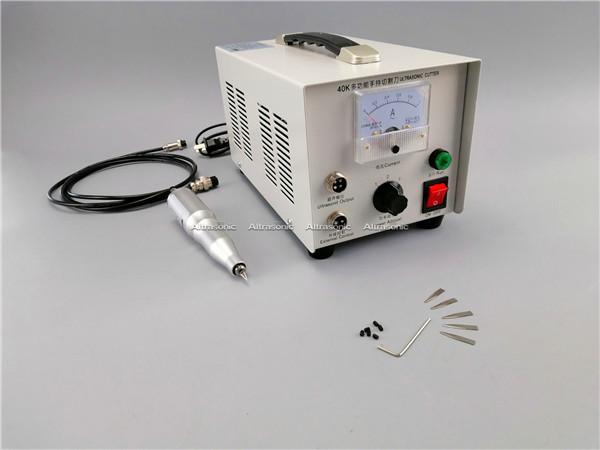

40K Ultrasonic Hand-held Cutting Unit For Cutting of Fabrics, Non-woven Materials, Films

Description:

Different from traditional processing technology, the basic principle of ultrasonic cutting technology is to use an electronic ultrasonic generator to generate ultrasonic waves of a certain range of frequencies, and then through an ultrasonic-mechanical converter placed in the ultrasonic cutting head, the ultrasonic vibration is converted into mechanical vibration of the same frequency, and then amplified by resonance to obtain a large enough amplitude and energy (power) to meet the requirements of cutting the workpiece, and the energy is transmitted to the cutter at the top of the ultrasonic cutting head for cutting processing.

Specification:

Model:HS-C40

Frequency: 40KHZ

Power supply : ZJS-100L

Output power:40w

Voltage: 220V/110V

Weight :2.5kg

Generator dimension : 155W*265L*170H

Blade diameter: 32*170

Accessory:pedal 1pcs

Blade: single blade(25pcs)or Double blades(10pcs)

1.5mm special hex wrench 1pcs

Connect screw: M3*4L 2 pcs

Cutting thickness :1mm-m

Application:

Various textile materials and plastic sheets can be cut by ultrasound, such as natural fibers, synthetic fibers, non-woven fabrics and knitted fabrics can be cut by ultrasound.

Advantage:

1. All kinds of textile materials can be cut by ultrasonic.

2. No pollution: the equipment is only heated to about 50℃, it will not produce smoke and odor, and it also eliminates the danger of injury and fire during cutting.　

3. High reliability

4. The cutting is neat: the cutting edge is very neat, and the warp and weft of the fabric will not displaced or detached.

5. Compared with the cold cutting process, when the thermoplastic material been cut, the edge of the slit is fused.

Warranty:

We offer the same warranty as the OEM, namely, one years, free replacement.

Simply ship the broken unit back to arrive within three years of original shipment, and it will be replaced (one time).
