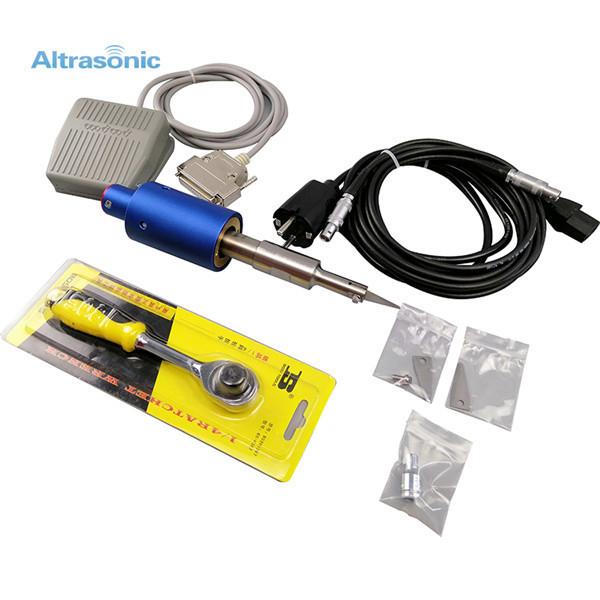

30K Ultrasonic Cutting Machine for Plastic Deburring Aided by Robot Arm

Description:

Ultrasonic Cutting delivers cleaner cuts and enhance precision for applications formerly delegated to waterjet, laser cutting, hard tooling and manual trimming. This environmentally-friendly solution reduces operating costs, works within a small footprint, and is energy efficient, clean and eco-friendly.

Ultrasonic Cutters do not emit noise, smoke and cause air contamination. Thus, ultrasonic cutting is an environment- friendly processing method.Ultrasonic Cutters can smoothly cut difficult-to-cut materials easily such as: Carbon Prepreg materials, Rubber, Thermoplastics, Leather, Cloth, Nonwoven fabric, Paper, Plastic sheet etc., A sharp cutting edge, which is difficult for water-jet or laser cutting, can be easily performed by our ultrasonic cutters.

Specification:

Advantages:

There are numerous benefits of ultrasonic cutting in industrial applications. Some of the main benefits include:

Produces a fusion effect for neat cuts, especially in viscous materials

Can be used for many different types of materials

Creates finely finished and structured objects

Emits less heat compared to other industrial cutting methods

Vibration enables various shapes for cutting holes

Applications:

Low pressure mold trimming

Non-woven carpet/fabric cutting

Instrument panel kiss cutting

Molded plastic part flash trimming and edge chamfering

Aerospace component routing

Capable of cutting plastic, acrylic, leather, ABS, PCB, PC, formex, chemical fiber, leather, etc.

FAQ

1. What is the blade life?

The blade life differs according to material, shape of the work-piece, and processing method. The blade should be changed once every few months, when cutting materials with small wear rates, such as rubber. The blade should be changed once every few days when cutting materials with large wear rates, such as materials containing glass fiber.

2. Is continuous use possible?

When general ultrasound processing tools are continuously used for a long period of time, heat accumulates in the transducer and the jointing section of the blade and results in malfunction. Altarsonic's transducer can be continuously used for a long period of time by supplying air for cooling.

3. How can I select a model suitable for my work?

When selecting a model, our special staff will propose the mode most suitable for your work based on the characteristics of the work and the thickness of the material to be cut. Combining blade with frequency requires technical skills and experience. Please feel free to contact us. Free test cutting is also provided.
