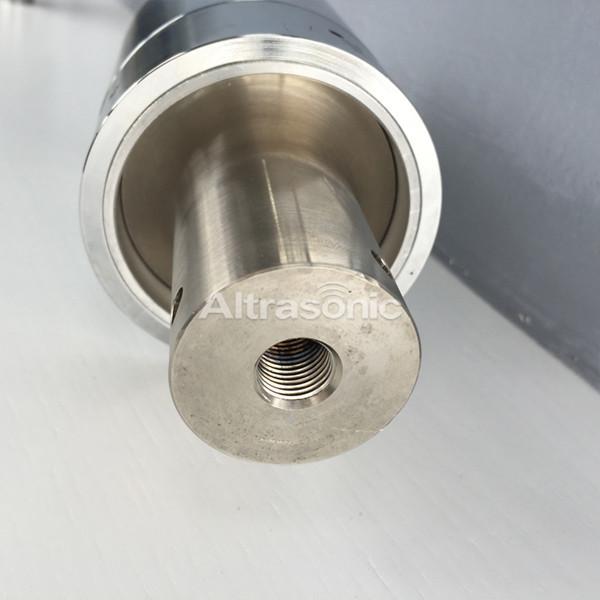

Branson 902 Replacement Type Ultrasonic Welding Transducer 1000W Converter CE Approved
Branson 902 Replacement Type Ultrasonic Welding Transducer 1000W Converter CE Approved
Branson 902 Replacement Type Ultrasonic Welding Transducer 1000W Converter CE Approved
Branson 902 Replacement Type Ultrasonic Welding Transducer 1000W Converter CE Approved
Branson 902 Replacement Type Ultrasonic Welding Transducer 1000W Converter CE Approved
Branson 902 Replacement Type Ultrasonic Welding Transducer 1000W Converter CE Approved
Specifications
Brand Name :
Altrasonic
Model Number :
HS-B902
Certification :
CE
Place of Origin :
China
MOQ :
1PCS
Price :
Negotiable
Payment Terms :
T/T, Western Union
Supply Ability :
3,000 units per month
Delivery Time :
10working days after received your payment
Packaging Details :
carton
Product Name :
20khz 1000w Ultrasound Converter
Frequency :
20Khz
Power :
1000W
Connect Screw :
1/2-20UNF
Ceramic Diameter :
40 mm
Qty Of Ceramic :
4pcs
Amplitude :
20 um
Application :
Welding
Finish :
Depending On Customer's Requirements
Description

Branson 902 Replacement Type Ultrasonic Welding Transducer 1000W Converter CE Approved

Description:

Ultrasonic device consists of ultrasonice transducer, booster and work horn. The transducer is an energy converter, which can converted the high frequency, high power current, output of power supply into reciprocating mechanical energy of the ultrasonic vibration, the vibration frequency output of drive power with the same frequency as the current. To further enlarge the amplitude of ultrasonic energy input to the place where we need.

Branson 902 Replacement Type Ultrasonic Welding Transducer 1000W Converter CE ApprovedBranson 902 Replacement Type Ultrasonic Welding Transducer 1000W Converter CE ApprovedBranson 902 Replacement Type Ultrasonic Welding Transducer 1000W Converter CE Approved

Specification:

Model:HS-B902

Frequency:20khz

Output power:1100watt

Join bolt:1/2-20UNF

Ceramic disc Diameter:40mm

Quantity of ceramic discs:4pcs

Capacitance:Different item No.,with different capacitance

Amplitude:20um

Application:welding machine

Competitive Advantage:

1. Titanium, aluminum, steel materials of horn optional.

2. Once assembled, the transducers are aged before testing and final assembly. The properties of

piezoelectric materials can change with time and pressure, so a bit of time on the shelf prior to testing will identify nonconforming material.

3. One by one testing to ensure that each transducer performance are excellent.

4. In good heat resistance, can be used in a wide range of temperature with long life and high reliability.

Branson 902 Replacement Type Ultrasonic Welding Transducer 1000W Converter CE ApprovedBranson 902 Replacement Type Ultrasonic Welding Transducer 1000W Converter CE ApprovedBranson 902 Replacement Type Ultrasonic Welding Transducer 1000W Converter CE ApprovedBranson 902 Replacement Type Ultrasonic Welding Transducer 1000W Converter CE ApprovedBranson 902 Replacement Type Ultrasonic Welding Transducer 1000W Converter CE ApprovedBranson 902 Replacement Type Ultrasonic Welding Transducer 1000W Converter CE Approved

Tag: ultrasonic piezoelectric transducer, high frequency ultrasonic transducer
