15KHz High Performance Ultrasonic Atomizer Device for Air Humidify Granulating Liquid Mixing Spray Low Power Consumption

Description:

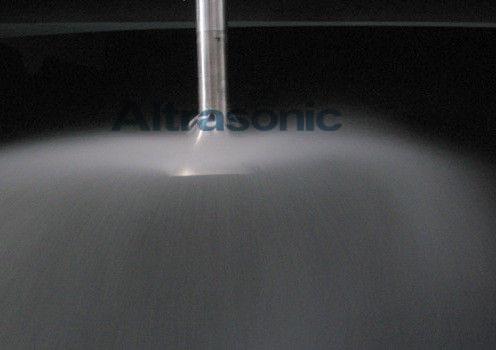

Ultrasonic spray (FOG) is to use the energy of ultrasonic water or liquid scattered, forming several microns to 100 microns in size of particles, used for air humidifying, granulating, mixing liquid, promote chemical reactions, spraying, molten metal powder etc.By breaking apart aggloomerated particles as they travel down the nozzle body due to continuous ultrasonic vibrations along the length of nozzle, resulting in the most effective use of functional particles.

Applications:

Atomization humidification, chemical mixing, production, spray drying granulation, paint spraying, metal milling and so on. The advantage is that it can atomize various kinds of liquid and it has Large atomizing volume, energy-saving, environmental protection. It has no plug, no abrasion.

Specifications:

Frequency: 15KHz

Power: 500W

Major power supply: 220V±10%, 50/60HZ, 8Aø6

Power Consumption: 0.001 Degrees/Kg

The matched transducer: HS-3030-4Z yellow

Atomization Volume: 150L/H

Average Particle Diameter Of Fog: 62um

Atomization Head Structure: Trumpet

The Application of Atomizing Media: Ordinary water, a variety of liquid substances, chemical liquid, a variety of oil mucus, metal melt and so on.

Competitive Advantage:

★ A major breakthrough in spray technology, you can spray a variety of liquids.
★ Low power consumption, the fog of great energy saving.
★ No plug, no abrasion, no noise, no pressure, no moving parts.
★ Can be any combination to meet the requirements of the spray volume.
★ The use of high-performance titanium and stainless steel.
