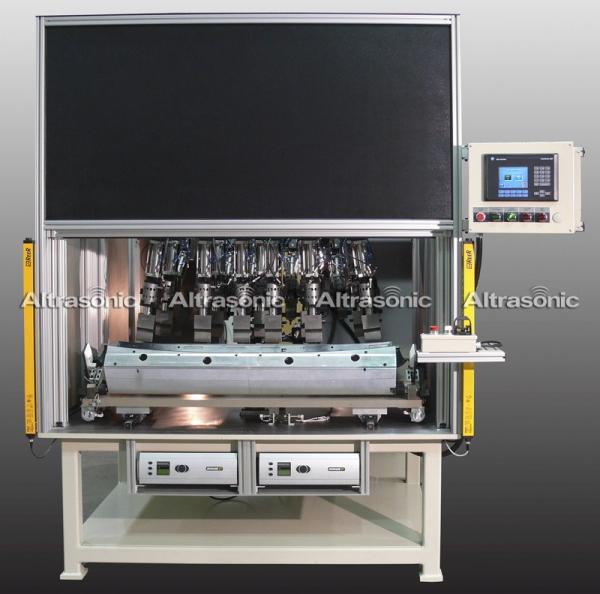

High Frequency Ultrasonic Riveting Welding Machine Gun Type For Auto Bumper Bar
High Frequency Ultrasonic Riveting Welding Machine Gun Type For Auto Bumper Bar
High Frequency Ultrasonic Riveting Welding Machine Gun Type For Auto Bumper Bar
High Frequency Ultrasonic Riveting Welding Machine Gun Type For Auto Bumper Bar
High Frequency Ultrasonic Riveting Welding Machine Gun Type For Auto Bumper Bar
High Frequency Ultrasonic Riveting Welding Machine Gun Type For Auto Bumper Bar
High Frequency Ultrasonic Riveting Welding Machine Gun Type For Auto Bumper Bar
High Frequency Ultrasonic Riveting Welding Machine Gun Type For Auto Bumper Bar
Specifications
Brand Name :
Altrasonic
Model Number :
HS-GT40
Certification :
CE
Place of Origin :
China
MOQ :
1 unit
Price :
negotiation
Payment Terms :
T/T, Western Union
Supply Ability :
3000 units per month
Delivery Time :
7 working days after received your payment
Packaging Details :
Packed in carton firstly,and then reinforced with wooden case for outer packing
Product Name :
Ultrasonic Riveting Welding Machine
Frequency :
40Khz
Power :
500W
Inlet Power :
AC220V±10V or AC110V±10V , 50/60HZ
Auotomatic resonance frequency range :
±1000hz
Working Environment :
+5~+50℃
Keeping Environment :
-5~+70℃
Net Weight :
10Kgs
Max current :
15A
Description

High Frequency Ultrasonic Riveting Welding Machine Gun Type For Auto Bumper Bar

Specifications:

Model HS-40 HS-35 HS-30 HS-28 HS-20
Frequency 40khz 35khz 30khz 28khz 20khz
Power 500W 500~800w 500~800w 500~800w 500~1000w
Horn ≤10mm ≤10mm ≤10mm ≤12mm ≤1m
Housing Diameter 44mm 44mm 44mm 44mm 64mm
Weight of welder 1.0kg 1.0kg 1.0kg 1.0kg 1.5kg
Digital generator ● ● ● ● ●
Analog generator ● ● ● ● ●

Applications in Different Areas:

Electronic and electrical appliances, auto parts, clothing and packaging, textile industry, environmental industry, medical equipment,the toy industry, communications equipment and other industries.

Toy industry Plastic toys, water guns, aquatic life video game, children dolls, plastic gifts, etc
Electronic products

Recording, audio tape boxes and core wheel, disk enclosure, mobile phone accessories, following, battery shell, chargers, valve control type sealed lead-acid battery maintenance, 3 inches floppy disk, U disk, SD card, CF card, USB connector, bluetooth; and rectifier transformers, switches and sockets, remote control,

electronic swatter, pseudo-imitation caps, prepaid water meter meter, communications equipment,etc
Household appliances

Electronic clock, electric trumpeter hairdryer, steam iron water tank, electric kettle

air-hsiang, computer, etc

Stationery,

daily necessities

Stationery, aquarium ruler, the raphe folder and shell, pen stand, cosmetics box shell,

the end of the toothpaste tube seal, mirror, insulated cup, lighter, seasoning bottles

sealed container
Car, motorcycle

Battery, front corner lamp, rear tail light, instrument, reflectors, automotive manual

welding jacket, the car door welded baffle welding, automobile, car mats welding,

automotive bumper repair welding

The application

of the sports industry

Table tennis, table tennis bats, badminton rackets, tennis rackets, golf clubs, pool

table, treadmill roller rope skipping handle stepper, treadmill accessories, box jumps,

gymnastics mats, boxing gloves, boxing sandbag Sanda protective gear, the path

to indicate the brand, the X Display Stand and other sports equipment, etc
The packaging industry Hollow crate welding, ziplock welded

Competitive Advantage:

  • Rapid sonotrode exchange
  • High quality, heavy duty aluminum housing
  • High frequency and control cable to the ultrasound generator are in a strong and highly flexible braided plastic sheet
  • Timer-controlled air cooling as an option
  • Mobile – can be transported by handle on the generator case

High Frequency Ultrasonic Riveting Welding Machine Gun Type For Auto Bumper Bar

High Frequency Ultrasonic Riveting Welding Machine Gun Type For Auto Bumper Bar

High Frequency Ultrasonic Riveting Welding Machine Gun Type For Auto Bumper Bar
