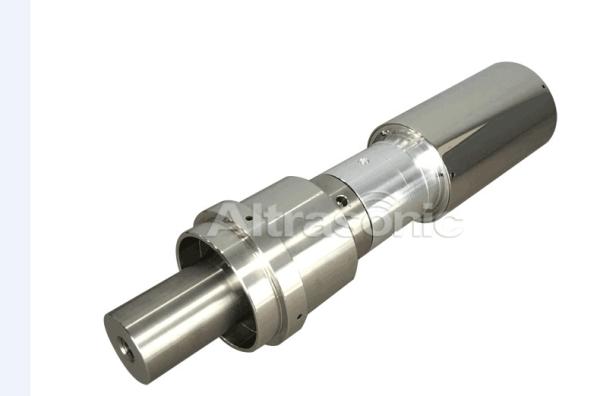

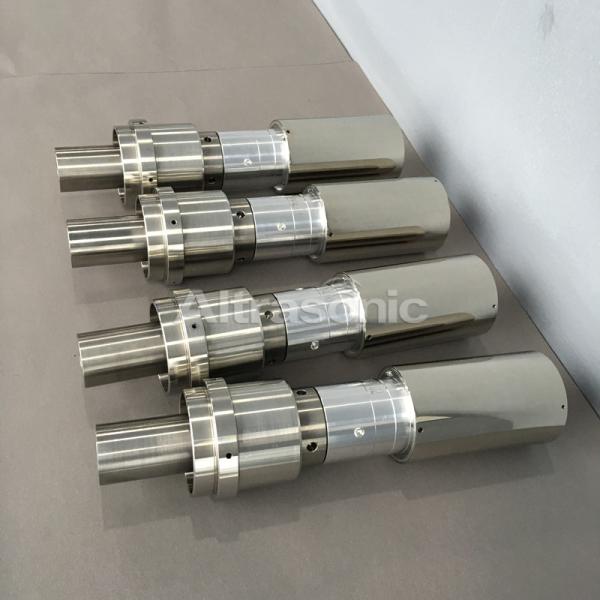

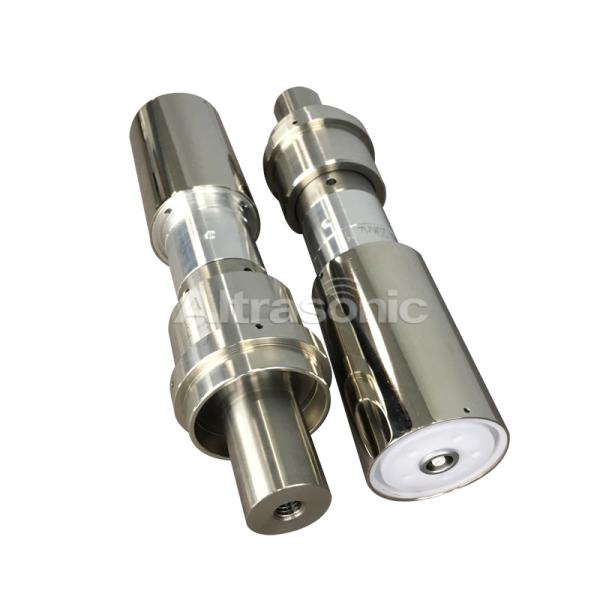

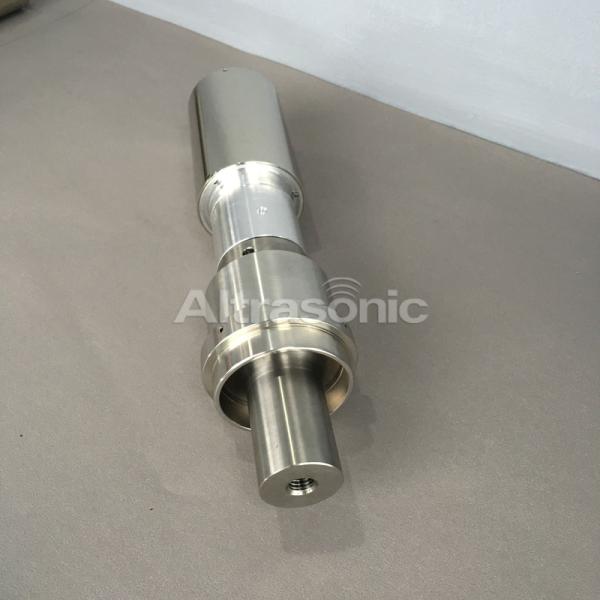

20Khz 1500W Rinco Converter for Ultrasonic Welding Machinery Replacement C20-12
20Khz 1500W Rinco Converter for Ultrasonic Welding Machinery Replacement C20-12
20Khz 1500W Rinco Converter for Ultrasonic Welding Machinery Replacement C20-12
20Khz 1500W Rinco Converter for Ultrasonic Welding Machinery Replacement C20-12
20Khz 1500W Rinco Converter for Ultrasonic Welding Machinery Replacement C20-12
20Khz 1500W Rinco Converter for Ultrasonic Welding Machinery Replacement C20-12
20Khz 1500W Rinco Converter for Ultrasonic Welding Machinery Replacement C20-12
20Khz 1500W Rinco Converter for Ultrasonic Welding Machinery Replacement C20-12
Specifications
Brand Name :
Altrasonic
Model Number :
HSR-20
Certification :
CE
Place of Origin :
China
MOQ :
2 units
Price :
negotiation
Payment Terms :
T/T, Western Union
Supply Ability :
3000 units per month
Delivery Time :
7 working days after received your payment
Packaging Details :
Packed in carton, PE foam inside
Product Name :
Ultrasonic Converter
Frequency :
20Khz
Power :
1500w
Ceramic Diameter :
50mm
Joint Bolt :
M16*2
Ceramic Disc :
2 PCS
Booster Diameter :
65mm
Amplitude :
12 μm
Material :
Titanium, Aluminum Materials Optional
Protective Housing :
Stainless Steel
Description

20Khz 1500W Rinco Converter for Ultrasonic Welding Machinery Replacement C20-12

Specifications:

Model HSR-20
Frequency 20khz
Output power 1500watt
Joint bolt M16*2
Ceramic disc Diameter 50 mm
Quantity of Ceramic discs 2 pcs
Bolt Fixing with transducer body
Amplitude 12μm
Application welding machine

Description:

The Replacement Converter for Rinco 20khz machine Direct replacement for the Rinco 20khz machine that delivers lower cost, good quality and superior value.

First, all of the parts are all new.

The parts are made from certified materials in tightly controlled manufacturing processes, assembled and

tested in a climate-controlled environment using carefully calibrated equipment, then properly aged and re-tested to ensure

performance that duplicates the OEM part.

Warranty:

We offer the same warranty as the OEM, namely, three years one-time replacement.

Simply ship the broken unit back to arrive within three years of original shipment, and it will be replaced

(one time).

Applied Range:

Replacement ultrasonic converter for 20khz Rinco machine, for use with 20KHz welding machine.

Competitive Advantage:

  • Titanium materials and Aluminum materials optional.
  • Once assembled, the transducers are aged before testing and final assembly. The properties of piezoelectric materials can change with time and pressure, so a bit of time on the shelf prior to testing will identify nonconforming material.
  • One by one testing to ensure that each transducer performance are excellent.
  • In good heat resistance, can be used in a wide range of temperature with long life and high reliability.
What we can do for you,
  • OEM - special custom-made the ultrasonic transducers or parts for you, and save cost for you.
  • Supply Replacement converter - Including NTK, Branson CJ20, CR20, 922JA..., Dukane 110-3122, Rinco brand and so on.
  • For some special items, you can provide us with samples, then we can give you a competitive price and custom-made it for you.

20Khz 1500W Rinco Converter for Ultrasonic Welding Machinery Replacement C20-12

20Khz 1500W Rinco Converter for Ultrasonic Welding Machinery Replacement C20-12

20Khz 1500W Rinco Converter for Ultrasonic Welding Machinery Replacement C20-12

Tag: ultrasound transducer,piezo ultrasonic transducer
